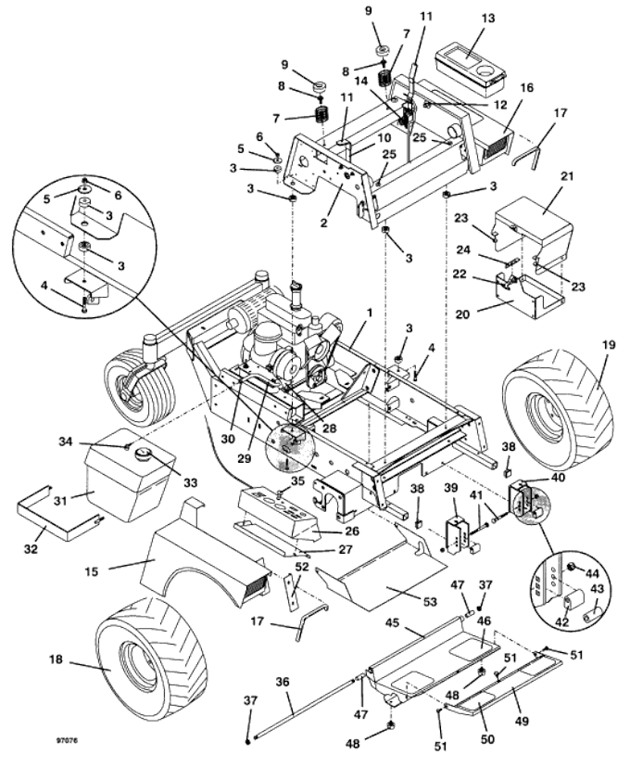

725G2 Tractor Assembly - 1998
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644233 - 700 Split Lower Frame(Please Call for Pricing) | Call For Details | |
| 2 | 643871 - G2 Upper Frame | Call For Details | |
| 3 | 257037 - Step Bushing | Add To Cart | |
| 4 | 243220 - Hex Bolt | Add To Cart | |
| 5 | 774020 - Washer | Add To Cart | |
| 6 | 253450 - Nylon Insert Nut | Add To Cart | |
| 7 | 283516 - Compression Spring | Add To Cart | |
| 8 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 9 | 422127 - Seat Spring Cap | Add To Cart | |
| 10 | 604823 - Throttle Assembly | Add To Cart | |
| - | 604820 - Throttle Cable Replacement Kit | Add To Cart | |
| 11 | 422150 - Handle Grip | Add To Cart | |
| 12 | 902280 - Spacer | Add To Cart | |
| - | 243330 - Hex Bolt | Add To Cart | |
| - | 257040 - Washer | Add To Cart | |
| 13 | 422040 - Tool Box | Add To Cart | |
| 14 | 185530 - 12V Volt Voltage Regulator | Add To Cart | |
| 15 | 693210 - 7/900 Right Fender with Safety Decal | Add To Cart | |
| - | 163216 - 725 Right Trim Decal | Add To Cart | |
| 16 | 693211 - 7/900 Left Fender with Safety Decal | Add To Cart | |
| 16 | 163217 - 725 Left Trim Decal | Add To Cart | |
| 17 | 822635 - 7/900 Fender Edge Trim | Add To Cart | |
| 18 | 483926 - Right Wheel & Tire (Bar Tread) | Add To Cart | |
| - | 482472 - Turf Tire | Add To Cart | |
| - | 482478 - Bar Tread Tire | Call For Details | |
| - | 483414 - Wheel | Add To Cart | |
| - | 483922 - Wheel & Tire (Turf Tread) | Call For Details | |
| 19 | 483927 - Left Wheel & Tire (Bar Tread) | Add To Cart | |
| - | 482472 - Turf Tire | Add To Cart | |
| - | 482478 - Bar Tread Tire | Call For Details | |
| - | 483414 - Wheel | Add To Cart | |
| - | 483922 - Wheel & Tire (Turf Tread) | Call For Details | |
| 20 | 603105 - Contour Battery Box Assembly | Add To Cart | |
| 21 | 603570 - Batter Box Lid Assembly | Add To Cart | |
| 22 | 281301 - Rubber Draw Latch | Add To Cart | |
| 23 | 424029 - Rubber Bumper | Add To Cart | |
| 24 | 723017 - Bolt On Battery Clamp | Add To Cart | |
| 25 | 424015 - Rubber Bumper | Add To Cart | |
| 26 | 693105 - Liquid Cooled Gas Console with Decals | Call For Details | |
| 27 | 721152 - Console Fill Panel | Add To Cart | |
| 28 | 101005 - Kubota Fuel Prefilter | Call For Details | |
| 29 | 821713 - Fuel Line Hose | Add To Cart | |
| 30 | 280270 - Screw Type Hose Clamp | Add To Cart | |
| 31 | 603817 - Brown Fuel Tank Assembly (Gas) | Add To Cart | |
| 32 | 643144 - Fuel Tank Mounting Bracket | Add To Cart | |
| 33 | 141125 - Fuel Cap with Level Indicator | Add To Cart | |
| 34 | 101818 - Fuel Draw Tube | Add To Cart | |
| 35 | 142218 - Mechanical Choke | Add To Cart | |
| 36 | 780673 - 700 Foot Platform Pivot Rod | Call For Details | |
| 37 | 253470 - Nylon Insert Nut | Add To Cart | |
| 38 | 422065 - 1' ID Square Plastic Plug | Add To Cart | |
| 39 | 643092 - 7/900 QDRight Deck Mount | Add To Cart | |
| 40 | 643093 - 7/900 QD Left Deck Mount | Add To Cart | |
| 41 | 247280 - Special Cariage Bolt | Add To Cart | |
| 42 | 282575 - Deck Mount Bushing | Add To Cart | |
| 43 | 282576 - Floating Deck Mount Bushing | Add To Cart | |
| 44 | 253460 - Nylon Insert Nut | Add To Cart | |
| 45 | 604346 - 7/900 Adjustable Foot Platform Assembly | Add To Cart | |
| 46 | 420905 - Foot Rest Tread | Add To Cart | |
| 47 | 422615 - Nylon Bearing | Add To Cart | |
| 48 | 424052 - Rubber Bumper | Add To Cart | |
| 49 | 603301 - 700 Foot Rest Extension | Add To Cart | |
| 50 | 420904 - Foot Rest Extension Tread | Add To Cart | |
| 51 | 247130 - Carriage Bolt | Add To Cart | |
| 52 | 722062 - Right Fender Cover Panel | Add To Cart | |
| 53 | 721383 - G2 Trash Shield | Add To Cart | |
| 54 | 603275 - 725 Decal Set | Add To Cart |
