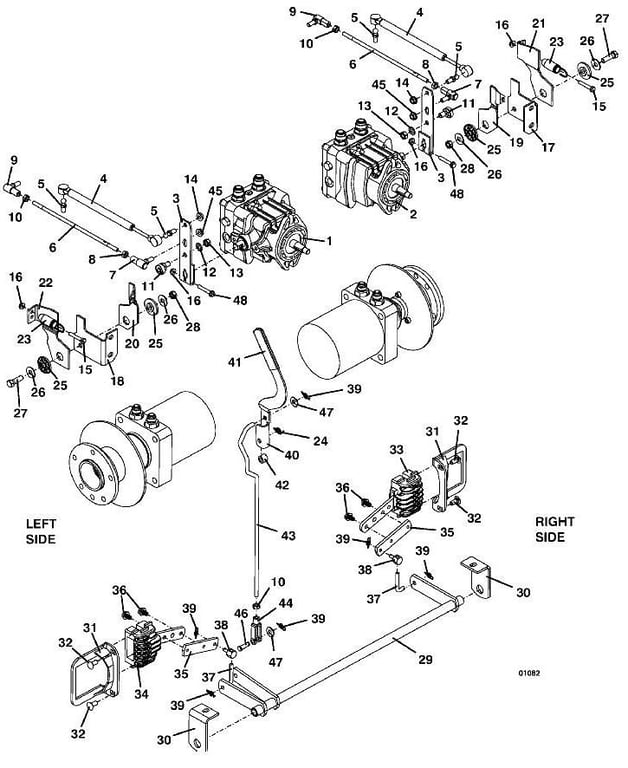

725K2 Drive Linkage Assembly - 2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 391462 - Hydro Pump - Left | Add To Cart | |
| - | 125165 - Seal | Add To Cart | |
| - | 130020 - Charge Cover Seal Ring | Add To Cart | |
| 2 | 391463 - Hydro Pump - Right | Add To Cart | |
| - | 125165 - Seal | Add To Cart | |
| - | 130020 - Charge Cover Seal Ring | Add To Cart | |
| 3 | 725338 - Control Arm | Add To Cart | |
| 4 | 285031 - Damper | Add To Cart | |
| 5 | 265680 - Ball Stud | Add To Cart | |
| 6 | 780164 - Steering Linkage Pump Rod | Add To Cart | |
| 7 | 265616 - Ball Joint | Add To Cart | |
| 8 | 254444 - Nut | Add To Cart | |
| 9 | 265615 - Ball Joint | Add To Cart | |
| 10 | 254441 - Nut | Add To Cart | |
| 11 | 603726 - Eccentric Roller Assembly | Add To Cart | |
| 12 | 257410 - Washer | Add To Cart | |
| 13 | 254450 - Nut | Add To Cart | |
| 14 | 253035 - Nut | Add To Cart | |
| 15 | 243035 - Bolt | Add To Cart | |
| 16 | 253025 - Nut | Add To Cart | |
| 17 | 754120 - Neutral Return Mount - Right | Call For Details | |
| 18 | 754121 - Neutral Return Mount - Left | Add To Cart | |
| 19 | 729138 - Neutral Return Arm - Right | Add To Cart | |
| 20 | 729139 - Neutral Return Arm - Left | Add To Cart | |
| 21 | 729136 - Front Neutral Return Arm - Right | Add To Cart | |
| 22 | 729137 - Front Neutral Return Arm - Left | Add To Cart | |
| 23 | 283823 - Extension Spring | Add To Cart | |
| 24 | 260608 - Cotter Ring | Add To Cart | |
| 25 | 822304 - Neutral Return Pivot Bearing | Add To Cart | |
| 26 | 257040 - Washer | Add To Cart | |
| 27 | 243335 - Bolt | Add To Cart | |
| 28 | 253890 - Nut | Add To Cart | |
| 29 | 644521 - Linkage Rod | Add To Cart | |
| 30 | 732610 - Brake Pivot Mount Bracket | Add To Cart | |
| 31 | 644121 - Caliper Mount | Add To Cart | |
| 32 | 247130 - Carriage Bolt | Add To Cart | |
| 33 | 481100 - Brake Assembly - Right Side | Add To Cart | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| 34 | 481101 - Brake Assembly - Left Side | Add To Cart | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| 35 | 782864 - Brake Linkage | Call For Details | |
| 36 | 253189 - Bolt | Add To Cart | |
| 37 | 730155 - Rod | Add To Cart | |
| 38 | 880924 - Pin | Add To Cart | |
| 39 | 260606 - Cotter Ring | Add To Cart | |
| 40 | 754045 - Brake Lever | Call For Details | |
| 41 | 422150 - Handle Grip | Add To Cart | |
| 42 | 423705 - Spacer | Add To Cart | |
| 43 | 730361 - Rod | Add To Cart | |
| 44 | 265537 - Clevis Yoke | Add To Cart | |
| 45 | 253038 - Nut | Add To Cart | |
| 46 | 261284 - Clevis Pin | Add To Cart | |
| 47 | 257030 - Washer | Add To Cart | |
| 48 | 253182 - Bolt | Add To Cart |
