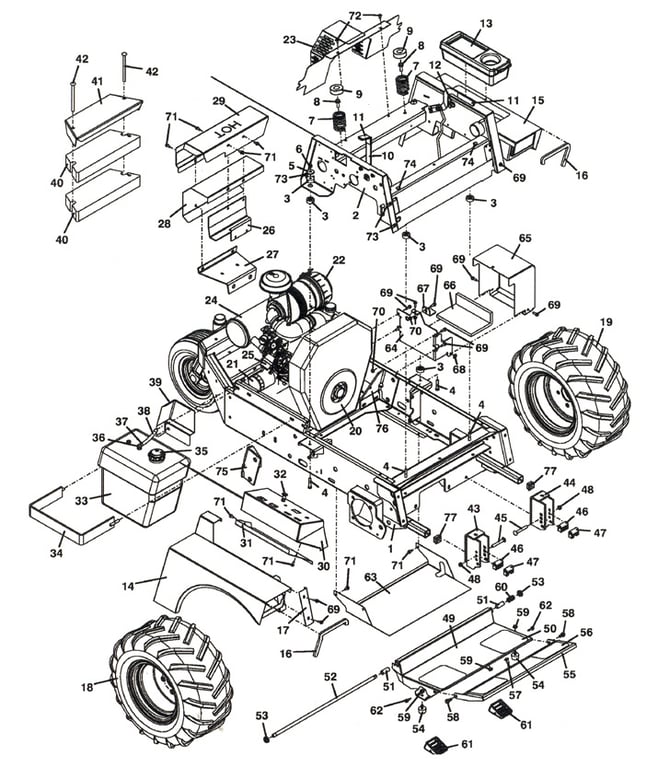

725K2 - Year Model:2002 - Tractor Assembly
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644234 - Tractor Frame - Lower | Call For Details | |
| 2 | 643871 - Tractor Frame - Upper | Call For Details | |
| 3 | 257037 - Rubber Step Bushing | Add To Cart | |
| 4 | 243220 - Bolt | Add To Cart | |
| 5 | 774020 - Washer | Add To Cart | |
| 6 | 253450 - Nut - Nylon Insert | Add To Cart | |
| 7 | 283516 - Seat Spring | Add To Cart | |
| 8 | 253203 - Whiz Bolt | Add To Cart | |
| 9 | 422127 - Seat Spring Cap | Add To Cart | |
| 10 | 603821 - Throttle Assembly (Incl. Cable Assy) | Add To Cart | |
| - | 323655 - Cable Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| 11 | 422150 - Handle Grip | Add To Cart | |
| 12 | 902280 - Spacer | Add To Cart | |
| - | 243330 - Bolt | Add To Cart | |
| - | 257040 - Washer | Add To Cart | |
| 13 | 422040 - Tool Box | Add To Cart | |
| 14 | 693210 - Fender w/Deal - Right | Add To Cart | |
| 15 | 693211 - Fender w/Decal - Left | Add To Cart | |
| 16 | 822635 - Fender Edge Trim | Add To Cart | |
| 17 | 722062 - Fender Cover Panel - Right | Add To Cart | |
| 18 | 483940 - Wheel & Tire - Right - Bar Tread 21x11x10 | Add To Cart | |
| 19 | 483941 - Wheel & Tire - Left - Bar Tread 21x11x10 | Add To Cart | |
| - | 483420 - Wheel Only - For Bar Tread- 10.00 | Add To Cart | |
| - | 482484 - Tire Only - Bar Tread - 21x11x10 | Add To Cart | |
| - | 483924 - Wheel & Tire - Turf - 20 x 10 x 10 | Add To Cart | |
| - | 482474 - Tire - Turf - 20 x 10 x 10 | Add To Cart | |
| 20 | 100168 - Engine - 25HP Kohler | Call For Details | |
| 21 | 100802 - Engine Oil Filter | Add To Cart | |
| 22 | 100936 - Air Filter - Outer Element | Add To Cart | |
| - | 100937 - Air Filter - Inner Element | Call For Details | |
| 23 | 644291 - Coupler Shield | Call For Details | |
| 24 | 101217 - Kohler Muffler | Call For Details | |
| - | 101041 - Exhaust Gasket | Add To Cart | |
| 25 | 101001 - Fuel Filter | Call For Details | |
| 26 | 643117 - Shield Mount Bracket | Add To Cart | |
| 27 | 729270 - Lower Muffler Bracket | Add To Cart | |
| 28 | 722309 - Inner Panel | Add To Cart | |
| 29 | 722391 - Muffler Shield | Add To Cart | |
| 30 | 693100 - Console w/Decal | Call For Details | |
| 31 | 721152 - Console Fill Panel | Add To Cart | |
| 32 | 142233 - Mechanical Choke | Add To Cart | |
| 33 | 603813 - Fuel Tank w/Draw Tube | Add To Cart | |
| 34 | 643144 - Fuel Tank Mounting Bracket | Add To Cart | |
| 35 | 141125 - Fuel Cap w/Level | Add To Cart | |
| 36 | 101819 - Fuel Draw Tube | Add To Cart | |
| 37 | 280260 - Spring Clamp | Add To Cart | |
| 38 | 821710 - Fuel Hose | Add To Cart | |
| 39 | 721123 - Fuel Tank Heat Shield | Add To Cart | |
| 40 | 323933 - Counterweight - 34 lbs. | Add To Cart | |
| 41 | 729514 - Weight Cover Plate | Call For Details | |
| 42 | 247325 - Bolt | Add To Cart | |
| 43 | 643092 - Deck Mount - Right | Add To Cart | |
| 44 | 643093 - Deck Mount - Left | Add To Cart | |
| 45 | 247280 - Bolt | Add To Cart | |
| 46 | 282575 - Deck Mount Bushing | Add To Cart | |
| 47 | 282576 - Deck Mount Bushing - Floating Option | Add To Cart | |
| 48 | 253460 - Nut w/Nylon Insert | Add To Cart | |
| 49 | 604346 - Foot Platform Assembly | Add To Cart | |
| 50 | 420905 - Foot Rest Tread | Add To Cart | |
| 51 | 422615 - Nylon Bearing | Add To Cart | |
| 52 | 780673 - Pivot Rod | Call For Details | |
| 53 | 253470 - Nut w/Nylon Insert | Add To Cart | |
| 54 | 424052 - Rubber Bumper | Add To Cart | |
| 55 | 603301 - Foot Platform Extension | Add To Cart | |
| 56 | 420904 - Foot Rest Tread | Add To Cart | |
| 57 | 247130 - Bolt | Add To Cart | |
| 58 | 253192 - Bolt | Add To Cart | |
| 59 | 253035 - Nut | Add To Cart | |
| 60 | 283312 - Compression Spring | Add To Cart | |
| 61 | 424100 - Isolator Block | Add To Cart | |
| 62 | 243026 - Bolt | Add To Cart | |
| 63 | 721383 - Trash Shield | Add To Cart | |
| 64 | 644099 - Battery Box | Call For Details | |
| 65 | 644162 - Battery Cover | Add To Cart | |
| 66 | 427273 - Battery Tray Pad | Add To Cart | |
| 67 | 729001 - Battery Clamp | Add To Cart | |
| 68 | 257020 - Washer | Add To Cart | |
| 69 | 253174 - Bolt | Add To Cart | |
| 70 | 253025 - Nut | Add To Cart | |
| 71 | 253173 - Nut | Add To Cart | |
| 72 | 253176 - Bolt | Add To Cart | |
| 73 | 254431 - Nut | Add To Cart | |
| 74 | 424015 - Rubber Bumper | Add To Cart | |
| 75 | 726131 - Gusset - Right | Call For Details | |
| 76 | 726132 - Gusset - Left | Call For Details | |
| 77 | 422065 - Plug | Add To Cart | |
| - | 604296 - Decal Set - 725K2 | Call For Details |
