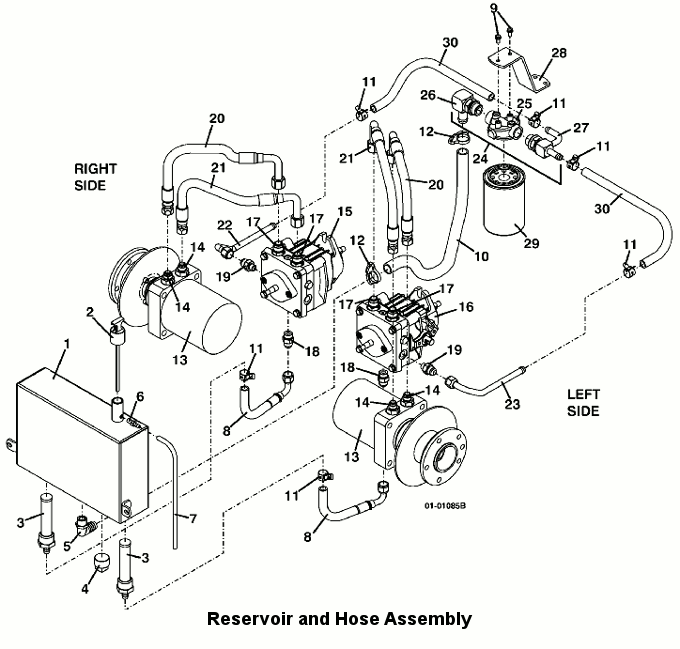

727A Reservoir and Hose Assembly - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603703 - RESERVOIR ASSY - 01 - 700G2 | Add To Cart | |
| 2 | 100729 - DIPSTICK - OIL RES PLASTIC | Add To Cart | |
| 3 | 366556 - STRAINER | Add To Cart | |
| 4 | 365535 - PLUG | Add To Cart | |
| 5 | 363853 - FITTING - NYLON | Add To Cart | |
| 6 | 363826 - FITTING - BARB STRAIGHT | Add To Cart | |
| 7 | 821724 - HOSE - VENT CLEAR | Add To Cart | |
| 8 | 424331 - HOSE ASSY | Add To Cart | |
| 9 | 253173 - BOLT WHIZ HEX | Add To Cart | |
| 10 | 821804 - HOSE .75 HYDRAULIC | Add To Cart | |
| 11 | 280265 - CLAMP - HOSE SPRING | Add To Cart | |
| 12 | 280281 - CLAMP - HOSE - PLASTIC SNAP | Add To Cart | |
| 13 | 603602 - WHEEL MOTOR W/HUB | Add To Cart | |
| 14 | 360063 - ADAPTER O-RING | Add To Cart | |
| - | 126527 - O-RING | Add To Cart | |
| - | 126537 - O-RING | Add To Cart | |
| 15 | 391463 - HYDRO PUMP - RT | Add To Cart | |
| - | 125165 - SEAL | Add To Cart | |
| - | 130020 - SEAL RING - CHARGE COVER SQUARE | Add To Cart | |
| 16 | 391462 - HYDRO PUMP - LT | Add To Cart | |
| - | 125165 - SEAL | Add To Cart | |
| - | 130020 - SEAL RING - CHARGE COVER SQUARE | Add To Cart | |
| 17 | 360064 - ADAPTER FITTING | Add To Cart | |
| - | 126529 - O-RING | Add To Cart | |
| - | 126535 - O-RING | Add To Cart | |
| 18 | 363832 - FITTING STEEL O-RING BOSS | Add To Cart | |
| 19 | 360081 - ADAPTER FITTING | Add To Cart | |
| 20 | 424371 - HOSE ASSY | Add To Cart | |
| 21 | 424372 - HOSE ASSY | Add To Cart | |
| 22 | 424602 - TUBE ASSY | Add To Cart | |
| 23 | 424603 - TUBE ASSY | Add To Cart | |
| 24 | 101020 - FILTER BASE ASSY G2 | Add To Cart | |
| 25 | 101027 - BASE - FILTER | Add To Cart | |
| 26 | 360076 - ADAPTER O-RING 12 BEAD | Call For Details | |
| 27 | 360074 - ADAPTER O-RING W/90 ELBOW | Add To Cart | |
| 28 | 733124 - BASE - OIL FILTER | Call For Details | |
| 29 | 100860 - FILTER - OIL TRANSMISSION | Add To Cart | |
| 30 | 821799 - HOSE - HYDRAULIC | Add To Cart |
