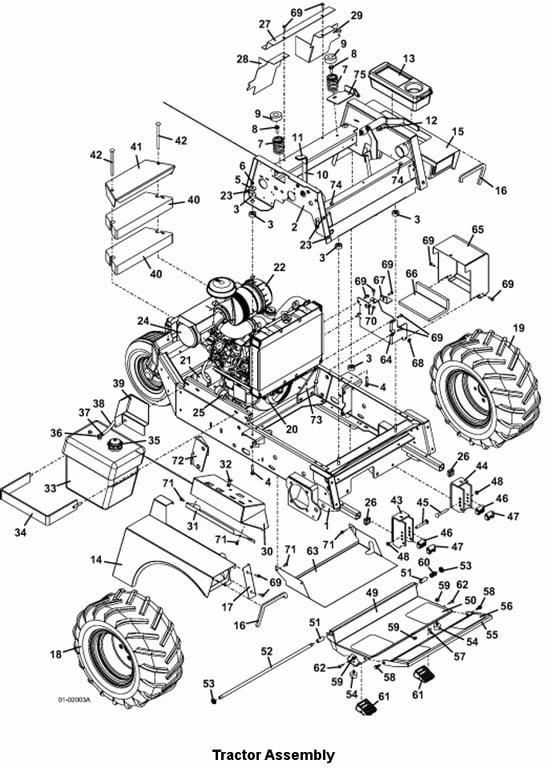

727A Tractor Assembly - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644234 - FRAME - LOWER - AC FRNT PRT G2 | Call For Details | |
| 2 | 643871 - FRAME - UPPER G2 | Call For Details | |
| 3 | 257037 - STEP BUSHING | Add To Cart | |
| 4 | 243220 - HEX BOLT | Add To Cart | |
| 5 | 774020 - WASHER | Add To Cart | |
| 6 | 253450 - NUT INSERT NYLON | Add To Cart | |
| 7 | 283516 - SPRING - COMPRESSION | Add To Cart | |
| 8 | 253203 - BOLT WHIZ FLANGE | Add To Cart | |
| 9 | 422127 - CAP - SEAT SPRING | Add To Cart | |
| 10 | 603821 - THROTTLE ASSY | Add To Cart | |
| - | 323655 - CONTROL CABLE ASSY | Add To Cart | |
| - | 722009 - STOP - THROTTLE LEVER | Add To Cart | |
| 11 | 422150 - GRIP HANDLE | Add To Cart | |
| 12 | 902280 - SPACER | Add To Cart | |
| - | 243330 - HEX BOLT | Add To Cart | |
| - | 257040 - WASHER | Add To Cart | |
| 13 | 422040 - TOOL BOX | Add To Cart | |
| 14 | 693210 - FENDER W/DECAL 700/900S RT | Add To Cart | |
| - | 163248 - Trim Decal 727A RT | Call For Details | |
| 15 | 693211 - FENDER W/DECAL 700/900S LT | Add To Cart | |
| - | 163249 - Trim Decal 727A RT | Call For Details | |
| 16 | 822635 - TRIM - FENDER EDGE 700/900 | Add To Cart | |
| 17 | 722062 - COVER PANEL - FENDER RT | Add To Cart | |
| 18 | 483942 - WHEEL & TIRE - BAR TREAD 10RT | Add To Cart | |
| - | 483420 - WHEEL - 10 - 5 BOLT | Add To Cart | |
| - | 482483 - TIRE - BAR TREAD 22 X 11 X 10 | Add To Cart | |
| - | 483924 - WHEEL & TIRE TURF 10 | Add To Cart | |
| - | 482474 - TIRE - TURF - 10 | Add To Cart | |
| 19 | 483943 - WHEEL & TIRE - BAR TREAD 10 LT | Add To Cart | |
| - | 483420 - WHEEL - 10 - 5 BOLT | Add To Cart | |
| - | 482483 - TIRE - BAR TREAD 22 X 11 X 10 | Add To Cart | |
| - | 483924 - WHEEL & TIRE TURF 10 | Add To Cart | |
| - | 482474 - TIRE - TURF - 10 | Add To Cart | |
| 20 | 100186 - ENGINE 27HP KOHLER | Call For Details | |
| 21 | 100802 - FILTER - OIL KOHLER | Add To Cart | |
| 22 | 100936 - FILTER AIR HD OUTER | Add To Cart | |
| - | 100937 - FILTER AIR INNER HD | Call For Details | |
| 23 | 254431 - SPEED NUT | Add To Cart | |
| 24 | 101217 - MUFFLER KOHLER | Call For Details | |
| - | 101041 - GASKET - EXHAUST - KOHLER | Add To Cart | |
| 25 | 101001 - FILTER - FUEL KOHLER | Call For Details | |
| 26 | 422065 - PLUG - SQUARE PLASTIC | Add To Cart | |
| 27 | 722147 - SHIELD - FLYWHEEL 725A | Call For Details | |
| 28 | 722423 - MOUNT - SHIELD 725A COUPLER RT | Call For Details | |
| 29 | 722424 - MOUNT - SHIELD 725A COUPLER LT | Call For Details | |
| 30 | 693106 - CONSOLE W/DECAL 325A/725A | Call For Details | |
| 31 | 721152 - PANEL - FILL- 96 CONSOLE | Add To Cart | |
| 32 | 142233 - MECHANICAL CHOKE | Add To Cart | |
| 33 | 603813 - TANK - FUEL W/DRAW TUBE | Add To Cart | |
| 34 | 643144 - BRACKET - MOUNTING - FUEL TANK | Add To Cart | |
| 35 | 141125 - CAP - W/FUEL LEVEL | Add To Cart | |
| 36 | 101819 - TUBE - FUEL DRAW | Add To Cart | |
| 37 | 280260 - CLAMP - HOSE SPRING | Add To Cart | |
| 38 | 821711 - FUEL HOSE | Add To Cart | |
| 39 | 721123 - SHIELD - HEAT FUEL TANK RT | Add To Cart | |
| 40 | 323933 - COUNTERWEIGHT - 34 LB | Add To Cart | |
| 41 | 729514 - WEIGHT COVER - 34 LB | Call For Details | |
| 42 | 247325 - CARRIAGE BOLT | Add To Cart | |
| 43 | 643092 - DECK MOUNT - QD 700/900 RT | Add To Cart | |
| 44 | 643093 - DECK MOUNT - QD 700/900 LT | Add To Cart | |
| 45 | 247280 - CARRIAGE BOLT SPECIAL | Add To Cart | |
| 46 | 282575 - BUSHING - DECK MOUNT | Add To Cart | |
| 47 | 282576 - BUSHING - DECK MOUNT - FLOATING | Add To Cart | |
| 48 | 253460 - NUT - INSERT - NYLON | Add To Cart | |
| 49 | 604346 - FOOT PLATFORM ASSEMBLY - ADJ 700/900 | Add To Cart | |
| 50 | 420905 - TREAD - FOOT REST | Add To Cart | |
| 51 | 422615 - NYLON BEARING | Add To Cart | |
| 52 | 780673 - PIVOT ROD - FOOT PLATFORM 700 | Call For Details | |
| 53 | 253470 - NUT INSERT NYLON | Add To Cart | |
| 54 | 424052 - RUBBER BUMPER | Add To Cart | |
| 55 | 603301 - EXTENSION - 700 FOOT PLATFORM | Add To Cart | |
| 56 | 420904 - TREAD - FOOT REST EXT | Add To Cart | |
| 57 | 247130 - CARRIAGE BOLT | Add To Cart | |
| 58 | 253192 - BOLT WHIZ HEX FLANGE | Add To Cart | |
| 59 | 253035 - NUT WHIZ | Add To Cart | |
| 60 | 283312 - SPRING COMPRESSION | Add To Cart | |
| 61 | 424100 - ISOLATOR BLOCK - FOOTREST | Add To Cart | |
| v62 | 243026 - HEX BOLT | Add To Cart | |
| 63 | 721383 - TRASH SHIELD G2 | Add To Cart | |
| 64 | 644099 - BATTERY BOX G2 AC W/A | Call For Details | |
| 65 | 644162 - COVER BATTERY AC W/A | Add To Cart | |
| 66 | 427273 - PAD - BATTERY TRAY | Add To Cart | |
| 67 | 729001 - CLAMP - BATTERY 700 G2 | Add To Cart | |
| 68 | 257020 - WASHER | Add To Cart | |
| 69 | 253175 - BOLT WHIZ HEX | Add To Cart | |
| 70 | 253025 - NUT WHIZ | Add To Cart | |
| 71 | 253173 - BOLT WHIZ HEX | Add To Cart | |
| 72 | 726131 - GUSSET - ROPS RT | Call For Details | |
| 73 | 726132 - GUSSET - ROPS LT | Call For Details | |
| 74 | 424015 - RUBBER BUMPER | Add To Cart | |
| 75 | 729230 - REINFORCEMENT - BRAKE PIN | Call For Details | |
| 76 | 604206 - DECAL SET - 727A W/SIDE CONSOLE | Call For Details |
