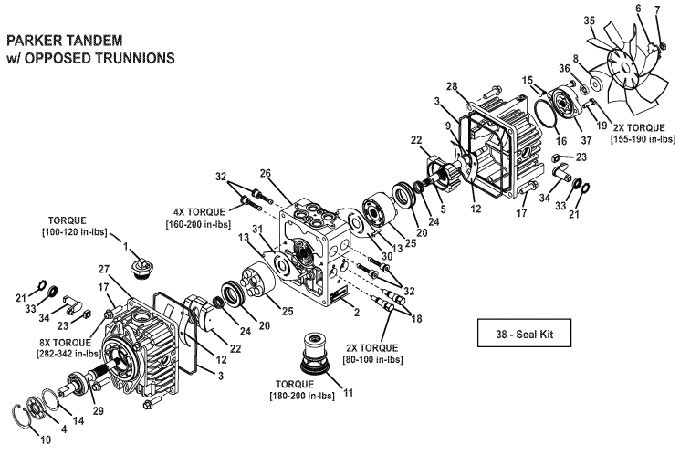

727EFI Pump Motor Breakdown - 2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 130510 - T2 Expansion Tank Adapter | Add To Cart | |
| - | 126550 - O-Ring | Add To Cart | |
| 2 | Not Available | Unavailable | |
| 3 | 130580 - Housing Seal Ring | Add To Cart | |
| 4 | 125370 - Input Seal | Add To Cart | |
| 5 | 130578 - Pump 2 Shaft | Call For Details | |
| 6 | 130432 - Fan Retainer Washer | Add To Cart | |
| 6 | 130432 - Fan Retainer Washer | Add To Cart | |
| 7 | 253461 - Nut with Nylon Insert | Add To Cart | |
| 8 | 130433 - Fan Hub | Add To Cart | |
| 9 | 130508 - Thrust Washer | Call For Details | |
| 10 | 130404 - Retaining Ring | Add To Cart | |
| 11 | 130505 - Tandem Transmion Filter | Add To Cart | |
| 12 | 130511 - Cradle Bearing | Add To Cart | |
| 13 | 130458 - Dowel Pin | Call For Details | |
| 14 | 130406 - Washer | Call For Details | |
| 15 | 130527 - Charge Relief Kit | Call For Details | |
| - | 130427 - Charge Relief Kit | Add To Cart | |
| 16 | 130420 - Charge Cover Seal Ring | Add To Cart | |
| 17 | 271130 - T2 Hex Flanged Bolt | Call For Details | |
| 18 | 130518 - O-Ring | Add To Cart | |
| - | 130448 - Bypass Valve | Add To Cart | |
| - | 130517 - Backup Ring | Add To Cart | |
| 19 | 271023 - HD Hex Bolt | Add To Cart | |
| 21 | 130512 - Retaining Ring | Call For Details | |
| 22 | 130514 - T6 Swashblock | Call For Details | |
| - | 130414 - T Swashblock | Call For Details | |
| 23 | 130516 - T6 Control Block | Add To Cart | |
| - | 130416 - T Control Block | Call For Details | |
| 24 | 130472 - T Center Spring | Call For Details | |
| - | 130572 - T6 Center Spring | Call For Details | |
| 25 | 130450 - T Piston & Barrel Assembly | Add To Cart | |
| - | 130550 - T6 Piston & Barrel Assembly | Add To Cart | |
| 26 | 130538 - T Center Block Assembly | Call For Details | |
| - | 130540 - T6 Center Block Assembly | Call For Details | |
| 27 | 130561 - T6 Pump1 Housing Assembly | Add To Cart | |
| - | 130560 - T Pump1 Housing Assembly | Add To Cart | |
| 28 | 130565 - 16cc Pump2 Oppose Trunnion Housing | Add To Cart | |
| - | 130564 - 12cc Pump2 Oppose Trunnion Housing | Call For Details | |
| 29 | 130576 - T Pump1 Shaft Assembly | Add To Cart | |
| 30 | 130554 - T Pump2 Port Plate | Add To Cart | |
| - | 130558 - T6 Pump2 Port Plate | Add To Cart | |
| 31 | 130552 - T Pump1 Port Plate | Add To Cart | |
| - | 130556 - T6 Pump1 Port Plate | Call For Details | |
| 32 | 130447 - O-Ring | Add To Cart | |
| - | 130444 - Check Valve Assembly | Add To Cart | |
| - | 130446 - Check Valve Assembly | Add To Cart | |
| 33 | 125358 - H1A-12 Trunnion Seal | Add To Cart | |
| 34 | 130515 - Tapered Square Trunnion Arm | Call For Details | |
| - | 130520 - Steel Trunnion Bushing | Call For Details | |
| 35 | 130431 - H2&T Hydro Fan | Add To Cart | |
| - | 130434 - T6 Fan 8.3' | Add To Cart | |
| 36 | 125162 - Thru Shaft Seal | Add To Cart | |
| 37 | 130528 - Pressure Reducing Charge Cover Kit | Add To Cart | |
| 38 | 130500 - Seal Kit | Add To Cart |
