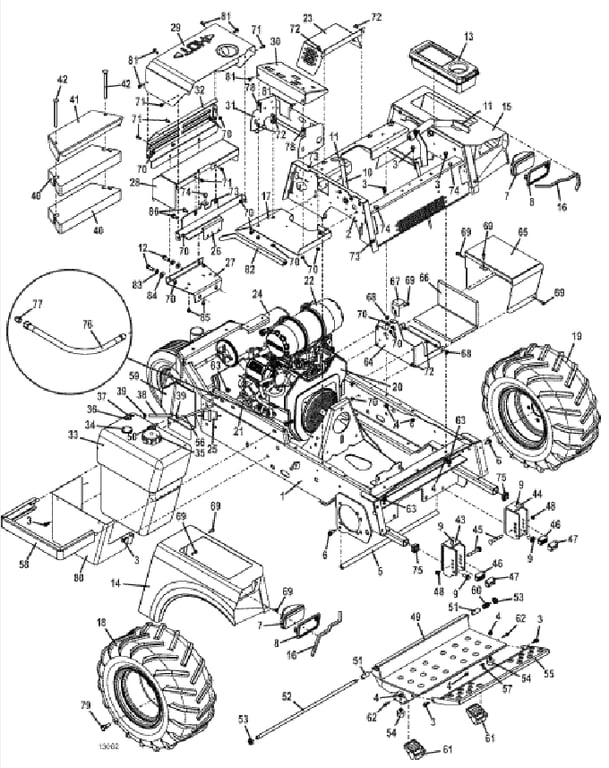

727EFI Tractor Assembly - 2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644873 - 700T Lower Frame- Air Cooled models | Call For Details | |
| 2 | 645214 - 700 Upper Frame | Call For Details | |
| 3 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 4 | 253035 - Whiz Nut | Add To Cart | |
| 5 | 780900 - Tension Rod | Call For Details | |
| 6 | 253200 - Whiz Bolt | Add To Cart | |
| 7 | 182253 - Flood Worklamp | Add To Cart | |
| 8 | 182251 - Snap Mount Worklamp Bezel | Add To Cart | |
| 9 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 10 | 603821 - Throttle Assembly | Add To Cart | |
| - | 323655 - Control Cable Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| 11 | 422150 - Handle Grip | Add To Cart | |
| 12 | 243445 - Hex Bolt | Add To Cart | |
| 13 | 422040 - Tool Box | Add To Cart | |
| 14 | 693220 - Right 700/900 Fender with Safety Decal | Call For Details | |
| 15 | 693221 - Left 700/900 Fender with Safety Decal | Add To Cart | |
| 16 | 822635 - 700/900 Fender Edge Trim | Add To Cart | |
| 17 | 645051 - Console Mount | Call For Details | |
| 18 | 483942 - Right Wheel & Bar Tread Tire, 22 x 11 x 10 | Add To Cart | |
| 19 | 483943 - Left Wheel & Bar Tread Tire, 22 x 11 x 10 | Add To Cart | |
| - | 482473 - Turf Tire Only, 22 x 10 x 10 | Add To Cart | |
| - | 482477 - OTR Turf Tire 22 x 10 x 10 | Add To Cart | |
| - | 482483 - Bar Tread Tire Only, 22 x 11 x 10 | Add To Cart | |
| - | 483420 - 5 Bolt Wheel Only, 10 x 8.5 | Add To Cart | |
| - | 483946 - Wheel & Turf Tire, 22 x 10 x 10 | Add To Cart | |
| 20 | 100080 - 27 HP Kohler EFI FM Engine | Call For Details | |
| - | 900117 - Kohler Engine Shim | Add To Cart | |
| 21 | 100802 - Kohler Oil Filter | Add To Cart | |
| 22 | 100936 - HD Air Filter Outer | Add To Cart | |
| - | 100937 - HD Air Filter Inner | Call For Details | |
| 23 | 693784 - 700T Coupler Shield with Decal | Call For Details | |
| 24 | 101215 - Kohler EFI Muffler | Add To Cart | |
| - | 101041 - Kohler Exhaust Gasket | Add To Cart | |
| 25 | 101001 - Kohler Fuel Filter | Call For Details | |
| 26 | 605126 - Shield Mount Bracket Assembly (includes item #73) | Add To Cart | |
| 27 | 729270 - Lower Muffler Bracket | Add To Cart | |
| 28 | 645191 - Inner Panel W/A | Add To Cart | |
| 29 | 751300 - Hood Panel | Add To Cart | |
| 30 | 693113 - Console with Decal | Call For Details | |
| 31 | 722875 - Console Frame | Call For Details | |
| 32 | 751125 - Grille Panel | Add To Cart | |
| 33 | 605795 - Front Mount 8 Gallon Gas Tank Assembly(includes items 34 & 37, and 50) | Add To Cart | |
| 34 | 141144 - In-Tank Fuel Gauge | Add To Cart | |
| - | 424275 - Grommet | Add To Cart | |
| 35 | 100212 - Internal Sealed Tether Fuel Cap | Add To Cart | |
| 36 | 101875 - Fuel Tube Bushing | Add To Cart | |
| 37 | 363928 - Fuel Tube | Add To Cart | |
| 38 | 821711 - Fuel Hose | Add To Cart | |
| 39 | 280260 - Spring Hose Clamp | Add To Cart | |
| 40 | 323933 - 34 lb. Counterweight | Add To Cart | |
| 41 | 729514 - 34 lb. Weight Cover | Call For Details | |
| 42 | 247325 - Carriage Bolt | Add To Cart | |
| 43 | 643092 - 700/900 right Quick Disconnect Deck Mount | Add To Cart | |
| 44 | 643093 - 700/900 left Quick Disconnect Deck Mount | Add To Cart | |
| 45 | 247280 - Special Carriage Bolt | Add To Cart | |
| 46 | 282575 - Deck Mount Bushing | Add To Cart | |
| 47 | 282576 - Floating Deck Mount Bushing | Add To Cart | |
| 48 | 253460 - Nylon Insert Nut | Add To Cart | |
| 49 | 604346 - Adjustable Foot Platform Assembly - 700/900 | Add To Cart | |
| 50 | 606830 - Fuel Tank Valve Kit | Add To Cart | |
| 51 | 422615 - Nylon Bearing | Add To Cart | |
| 52 | 780673 - Foot Platform Pivot Rod - 700 | Call For Details | |
| 53 | 253470 - Nylon Insert Nut | Add To Cart | |
| 54 | 424052 - Rubber Bumper | Add To Cart | |
| 55 | 643304 - 700 Foot Platform Extension | Add To Cart | |
| 56 | 821757 - Fuel Vapor Hose | Add To Cart | |
| 57 | 247130 - Carriage Bolt | Add To Cart | |
| 58 | 644826 - 8 Gallon Fuel Tank Mount Bracket | Add To Cart | |
| 59 | 721181 - 8 Gallon Fuel Tank Heat Shield | Call For Details | |
| 60 | 283312 - Compression Spring | Add To Cart | |
| 61 | 424100 - Footrest Isolator Block | Add To Cart | |
| 62 | 243026 - Hex Bolt | Add To Cart | |
| 63 | 253043 - Whiz Nut | Add To Cart | |
| 64 | 644163 - Battery Box W/O Draw Latch | Add To Cart | |
| 65 | 644478 - Battery Box Lid W/O Draw Latch | Add To Cart | |
| 66 | 427278 - Battery Tray Pad | Add To Cart | |
| 67 | 754135 - Battery Hold Down Bracket | Add To Cart | |
| 68 | 257020 - Washer | Add To Cart | |
| - | 253440 - Nylon Insert Nut | Add To Cart | |
| 69 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 70 | 253025 - Whiz Nut | Add To Cart | |
| 71 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 72 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 73 | 254431 - Speed Nut | Add To Cart | |
| 74 | 424015 - Rubber Bumper | Add To Cart | |
| 75 | 422065 - Square Plastic Plug | Add To Cart | |
| 76 | 424474 - Engine Oil Drain Hose Assembly | Add To Cart | |
| 77 | 365515 - Metal Pipe Plug | Add To Cart | |
| 78 | 254432 - Plastic Retainer Nut | Add To Cart | |
| 79 | 248565 - Lug Bolt | Add To Cart | |
| 80 | 723339 - 8 Gallon Tank Shield | Add To Cart | |
| 81 | 253179 - Philips Truss Whiz Bolt | Add To Cart | |
| 82 | 822501 - Console Mount Seal | Call For Details | |
| 83 | 257422 - Lock Washer | Add To Cart | |
| 84 | 257040 - Washer | Add To Cart | |
| 85 | 270821 - Hex Bolt | Add To Cart | |
| 86 | 271021 - Flanged Hex Bolt with Ser | Add To Cart | |
| 87 | 605552 - 727EFI Decal Set | Call For Details |
