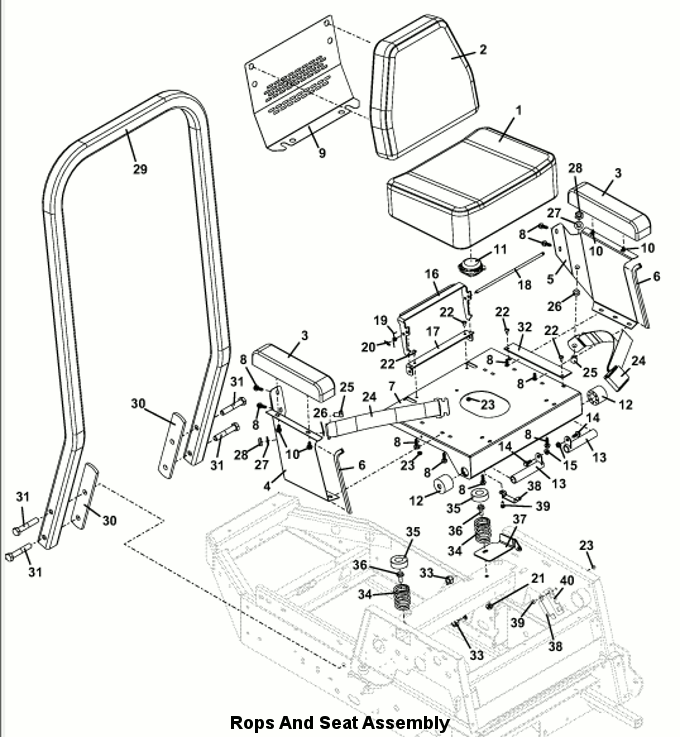

727K2 ROPS & Seat Assembly - 2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321518 - Seat Cushion - Cordura | Add To Cart | |
| 2 | 321519 - Back Cushion - Cordura | Add To Cart | |
| 3 | 321523 - Contoured Armrest - Cordura | Add To Cart | |
| 4 | 723386 - Extended Armrest Seat Side Member - right | Add To Cart | |
| 5 | 723387 - Extended Armrest Seat Side Member - left | Add To Cart | |
| 6 | 822630 - Seat Edge Trim | Add To Cart | |
| 7 | 644816 - Seat Mount - Dual Latch | Call For Details | |
| 8 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 9 | 722388 - Seat Reinforcement Panel | Add To Cart | |
| 10 | 253191 - Hex Flange Whiz Bolt | Add To Cart | |
| 11 | 183871 - Seat Switch - Twist In | Add To Cart | |
| 12 | 424095 - Seat Isolator | Add To Cart | |
| 13 | 644618 - Seat Hinge Pin | Add To Cart | |
| 14 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 15 | 253035 - Whiz Nut | Add To Cart | |
| 16 | 754240 - Dual Latch - Seat | Add To Cart | |
| 17 | 254226 - Bracket - Dual Latch Mount | Call For Details | |
| 18 | 730230 - Pivot Pin - Seat Latch | Call For Details | |
| 19 | 284408 - Torsion Spring | Add To Cart | |
| 20 | 260606 - Cotter Ring | Add To Cart | |
| 21 | 253043 - Nut Whiz | Add To Cart | |
| 22 | 253176 - Bolt Whiz Truss | Add To Cart | |
| 23 | 253025 - Nut Whiz | Add To Cart | |
| 24 | 324200 - Seat Belt - Non Retract | Add To Cart | |
| 25 | 243551 - Hex Bolt | Add To Cart | |
| 26 | 257063 - Washer | Add To Cart | |
| 27 | 257062 - Washer | Add To Cart | |
| 28 | 253470 - Nut - Insert - Nylon | Add To Cart | |
| 29 | 324103 - Tube - ROPS - 700/900 | Add To Cart | |
| 30 | 901645 - Spacer - ROPS - 700/900 | Add To Cart | |
| 31 | 243840 - Hex Bolt | Add To Cart | |
| 32 | 424176 - Flap - Seat Paner - 700/900 | Call For Details | |
| 33 | 253970 - Nut - Lock | Add To Cart | |
| 34 | 283516 - Spring - Compression | Add To Cart | |
| 35 | 422127 - Cap - Seat Spring | Add To Cart | |
| 36 | 253203 - Bolt Whiz Flange | Add To Cart | |
| 37 | 729230 - Brake Pin Reinforcement | Call For Details | |
| 38 | 722776 - Clamp - Wiring Mount Bracket | Call For Details | |
| 39 | 253173 - Bolt Whiz Hex | Add To Cart | |
| 40 | 774046 - Wiring Mount Bracket | Call For Details |
