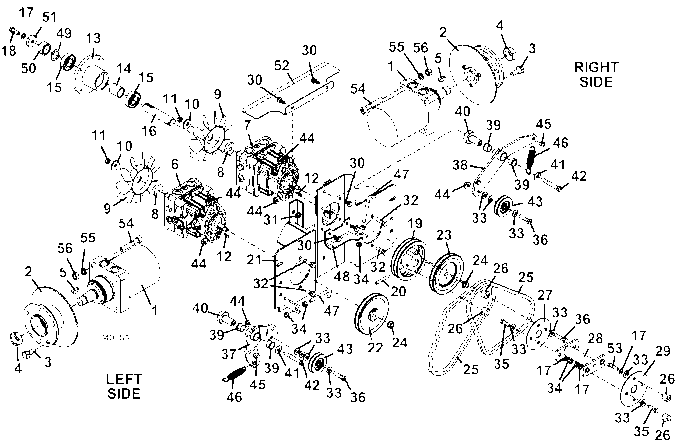

727KW Drive Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603602 - Wheel Motor w/Hub | Add To Cart | |
| 2 | 604440 - Wheel Hub - Bolt on Rotor | Add To Cart | |
| - | 259592 - Socket Head Screw | Add To Cart | |
| - | 775192 - Brake Rotor - 8.0 | Add To Cart | |
| 3 | 248565 - Lug Bolt | Add To Cart | |
| 4 | 254522 - Nut | Add To Cart | |
| 5 | 281860 - Key Woodruff | Add To Cart | |
| 6 | 391462 - Hydro Pump - LT | Add To Cart | |
| - | 125165 - Seal | Add To Cart | |
| - | 130020 - Seal Ring - Charge Cover - Square | Add To Cart | |
| 7 | 391463 - Hydro Pump - RT | Add To Cart | |
| - | 125165 - Seal | Add To Cart | |
| - | 130020 - Seal Ring - Charge Cover - Square | Add To Cart | |
| 8 | 885123 - Hub - Fan Mount 10A | Add To Cart | |
| 9 | 320857 - Fan - 7' Nylon CW | Add To Cart | |
| 10 | 774020 - Washer | Add To Cart | |
| 11 | 254452 - Nut | Add To Cart | |
| 12 | 281562 - Key Rectangle | Add To Cart | |
| 13 | 320522 - Spindle Housing - Vac Fan | Add To Cart | |
| 14 | 903650 - Spacer - Drive Bearing | Add To Cart | |
| 15 | 110081 - Ball Bearing - 2 Reg Seal 25mm | Add To Cart | |
| 16 | 882052 - Drive Shaft - 700G2 | Add To Cart | |
| 17 | 257412 - Lock Washer | Add To Cart | |
| 18 | 243331 - Hex Bolt | Add To Cart | |
| 19 | 415037 - Sheave | Add To Cart | |
| 20 | 261061 - Roll Pin | Add To Cart | |
| 21 | 644629 - Pump Mount - 16AG2 | Call For Details | |
| 22 | 415022 - Sheave | Add To Cart | |
| 23 | 415021 - Sheave | Add To Cart | |
| 24 | 253060 - Flanged Nut | Add To Cart | |
| 25 | 381537 - Belt | Add To Cart | |
| 26 | 902328 - Spacer - G2 Drive | Add To Cart | |
| 27 | 821530 - Flex Disc Coupling | Add To Cart | |
| 28 | 644118 - Coupling Connector | Add To Cart | |
| 29 | 821530 - Flex Disc Coupling | Add To Cart | |
| 30 | 253192 - Bolt Whiz Hex Flange | Add To Cart | |
| 31 | 253035 - Nut Whiz | Add To Cart | |
| 32 | 243335 - Hex Bolt | Add To Cart | |
| 33 | 257030 - Washer | Add To Cart | |
| 34 | 254450 - Nut | Add To Cart | |
| 35 | 243330 - Hex Bolt | Add To Cart | |
| 36 | 243340 - Hex Bolt | Add To Cart | |
| 37 | 824491 - Idler Arm Assembly | Add To Cart | |
| 38 | 824490 - Idler Arm Assembly | Add To Cart | |
| 39 | 121756 - Oilite Bearing | Add To Cart | |
| 40 | 121650 - Pedestal Bearing | Add To Cart | |
| 41 | 257040 - Washer | Add To Cart | |
| 42 | 243360 - Hex Bolt | Add To Cart | |
| 43 | 604449 - Idler | Add To Cart | |
| 44 | 253043 - Whiz Nut | Add To Cart | |
| 45 | 422520 - Nylon Bearing | Add To Cart | |
| 46 | 283819 - Extension Spring - w/Swivel | Add To Cart | |
| 47 | 730391 - J Bolt - Idler Adjustment | Add To Cart | |
| 48 | 725028 - Spring Bracket - 928 | Call For Details | |
| 49 | 257106 - Washer | Add To Cart | |
| 50 | 282630 - Spacer | Add To Cart | |
| 51 | 883801 - Washer | Add To Cart | |
| 52 | 723154 - G2 Fan Shield | Add To Cart | |
| 53 | 243330 - Hex Bolt | Add To Cart | |
| 54 | 259640 - Socket Head Screw | Add To Cart | |
| 55 | 257430 - Internal Star Washer | Add To Cart | |
| 56 | 253066 - Whiz Nut | Add To Cart |
