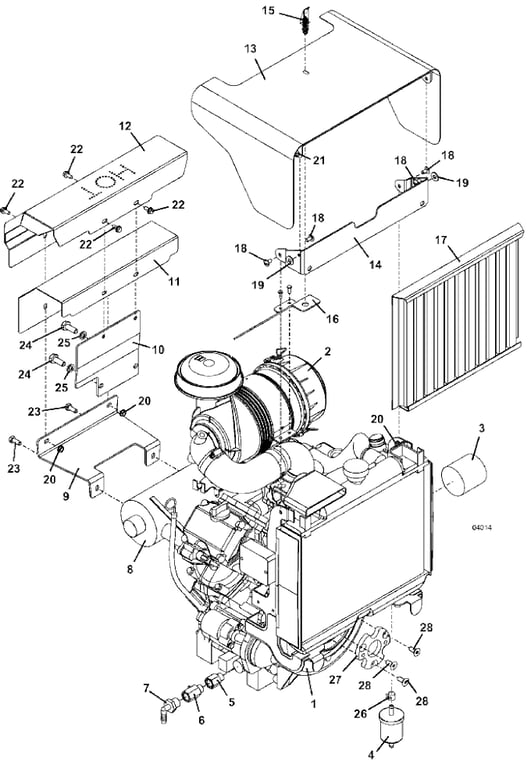

727KW Engine Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 100187 - 27HP Kawasaki Engine | Call For Details | |
| 2 | 100936 - Air Filter - Outer HD | Add To Cart | |
| 100937 - Air Filter - Inner HD | Call For Details | ||
| 3 | 100806 - Kawasaki Oil Filter | Call For Details | |
| 4 | 101005 - Kubota Fuel Pre-Filter | Call For Details | |
| 5 | 887121 - Adapter | Call For Details | |
| 6 | 143610 - Oil Drain Valve | Add To Cart | |
| 7 | 363848 - Nylon Fitting | Add To Cart | |
| 8 | 101224 - 27HP Kawasaki Muffler | Add To Cart | |
| - | 101038 - Kawasaki Muffler Gasket | Call For Details | |
| 9 | 754216 - Lower Muffler Bracket | Call For Details | |
| 10 | 643196 - Shield Mount Bracket | Call For Details | |
| 11 | 720167 - Inner Panel Shield | Call For Details | |
| 12 | 722732 - Muffler Shield | Call For Details | |
| 13 | 644331 - Hood | Call For Details | |
| 14 | 754207 - Hood Mount | Call For Details | |
| 15 | 281305 - Swell Action Latch | Add To Cart | |
| 16 | 754208 - Hood Latch Bracket | Call For Details | |
| 17 | 644669 - Grille | Call For Details | |
| 18 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 19 | 257020 - Washer | Add To Cart | |
| 20 | 253025 - Whiz Nut | Add To Cart | |
| 21 | 253440 - Nylon Insert Nut | Add To Cart | |
| 22 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 23 | 271020 - 8M HD Hex | Add To Cart | |
| 24 | 271120 - Hex Bolt | Add To Cart | |
| 25 | 243445 - Hex Bolt | Add To Cart | |
| 26 | 275580 - Lock Washer | Add To Cart | |
| 27 | 783456 - Coupling Adapter | Call For Details | |
| 28 | 270346 - Flat Head M8 Cap Screw | Add To Cart |
