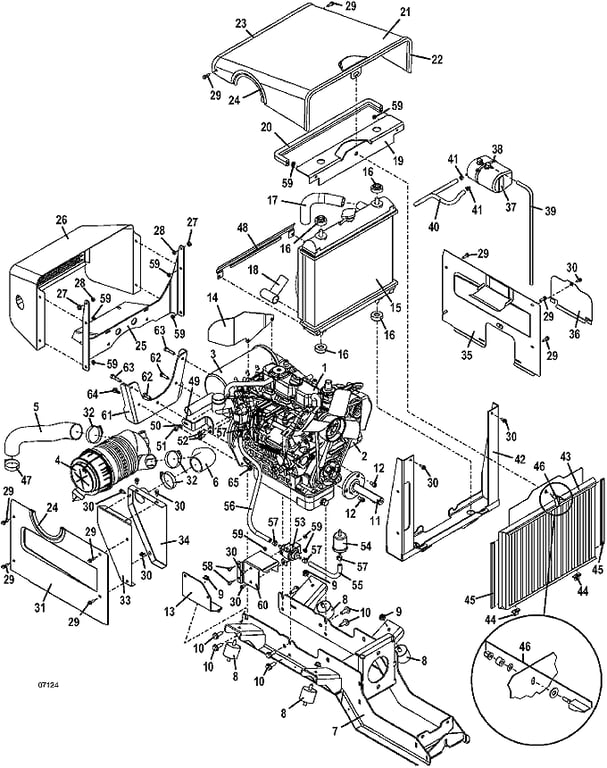

729T6 Engine Assembly - 2008

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.


Item # Part Number - Description Price
1 100172 - Kubota Gas Engine Call For Details
2 100800 - Kubota Oil Filter Add To Cart
3 101235 - Kubota Muffler Add To Cart
- 101040 - Exhaust Flange Gasket Add To Cart
4 100207 - Nelson 90 Degree Air Cleaner Call For Details
- 100197 - Clip for Air Cleaner Cover Add To Cart
- 100199 - Air Cleaner Cover Add To Cart
- 100202 - Dust Ejector Call For Details
- 100203 - Kohler Rain Cap Call For Details
- 100936 - Outer HD Air Filter Add To Cart
- 100937 - Inner HD Air Filter Call For Details
5 424535 - Carburetor Breather Hose Add To Cart
6 424520 - Breather Inlet Hose Add To Cart
7 644879 - Drive Train Mount Add To Cart
8 424073 - Vibration Isolator Add To Cart
9 253043 - Whiz Nut Add To Cart
10 271121 - Hex Bolt Add To Cart
11 824632 - 700T Stub Coupler Shaft Add To Cart
12 270075 - M8 Socket Head Screw Add To Cart
13 724213 - Coil Mount Call For Details
14 723228 - Muffler Shield Add To Cart
15 101612 - Kubota 902 Radiator Call For Details
16 101080 - Radiator Mount Isolator Bushing Call For Details
17 101058 - Upper Radiator Hose Call For Details
18 101059 - Lower Radiator Hose Call For Details
19 729327 - Radiator Channel Clamp Add To Cart
20 822518 - Bulb Hood Seal Add To Cart
21 644293 - 722D Upper Hood Add To Cart
22 822639 - Front Hood Trim Add To Cart
23 822637 - Rear Hood Trim Add To Cart
24 822513 - Air Cleaner Trim Seal Add To Cart
25 644857 - 729 Rear Hood Support for Water Cooled Models Call For Details
26 645307 - Rear Hood Add To Cart
27 902297 - .25 THK Spacer Add To Cart
28 253850 - Lock Nut Add To Cart
29 253175 - Hex Whiz Bolt Add To Cart
30 253173 - Hex Whiz Bolt Add To Cart
31 722712 - Right Side Hood Add To Cart
32 280305 - Screw Type Hose Clamp Add To Cart
33 644066 - Air Intake Box Mount Call For Details
34 644059 - Air Intake Box Add To Cart
35 644322 - 722D W/A Left Side Hood Add To Cart
36 722722 - Oil filter Cover Add To Cart
37 422012 - Expansion Tank Add To Cart
38 423154 - Tie Add To Cart
39 821748 - Clear Vent Hose Add To Cart
40 821749 - Hose Add To Cart
41 280260 - Spring Hose Clamp Add To Cart
42 644655 - Lower 700DT Radiator Mount Add To Cart
43 644668 - 902D Grille w/Guard Add To Cart
44 422090 - Rear Belt Shield Isolator Add To Cart
45 822636 - Radiator Grille Trim Add To Cart
46 604805 - Swell Latch Assembly Add To Cart
47 280303 - Screw Type Hose Clamp Add To Cart
48 721006 - Fan Shield Add To Cart
49 732604 - Muffler Support Strap Add To Cart
50 257402 - Lock Washer Add To Cart
51 274145 - Hex Nut Add To Cart
52 271021 - Flange Hex Bolt w/Ser Add To Cart
53 101510 - Electric Fuel Pump Call For Details
54 101005 - Kubota Fuel PreFilter Call For Details
55 821727 - Fuel Hose Call For Details
56 821728 - Fuel Hose Call For Details
57 280261 - Spring Hose Clamp Add To Cart
58 253176 - Truss Whiz Bolt Add To Cart
59 253025 - Whiz Nut Add To Cart
60 723090 - 729T Fuel Pump Mount Shield Call For Details
61 644863 - PTO Rear Mount Add To Cart
62 271023 - Hex Head Add To Cart
63 271055 - Hex Head M8 Bolt Call For Details
64 253192 - Hex Flange Whiz Bolt Add To Cart
65 253035 - Whiz Nut Add To Cart
