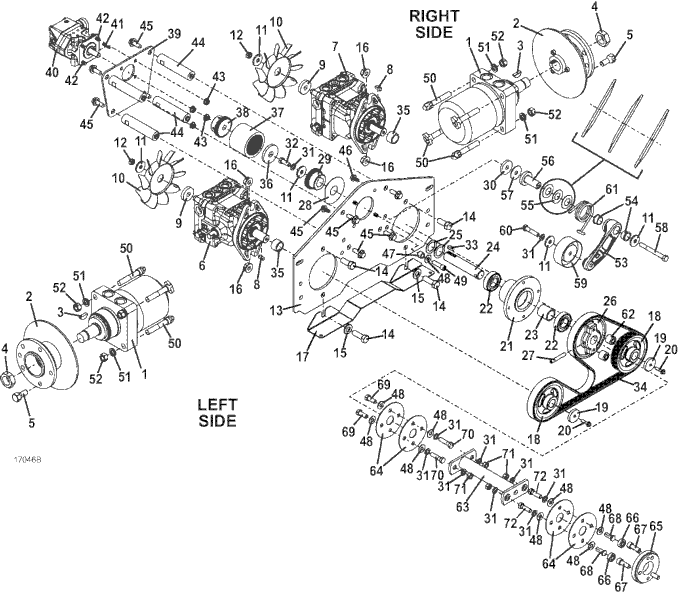

900D 1.3L Drive Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603604 - Wheel Motor with Hub | Add To Cart | |
| 2 | 604436 - Hub and Rotor Assembly | Add To Cart | |
| 3 | 281860 - Woodruff Key | Add To Cart | |
| 4 | 254522 - Nut | Add To Cart | |
| 5 | 248565 - Lug Bolt | Add To Cart | |
| 6 | 391444 - Left Hydro Pump | Add To Cart | |
| 7 | 391445 - Right Hydro Pump | Add To Cart | |
| 8 | 281580 - Key Square | Add To Cart | |
| 9 | 417200 - Fan Mount Hub | Add To Cart | |
| 10 | 320857 - Clockwise 7' Nylon Fan | Add To Cart | |
| 11 | 774020 - Washer | Add To Cart | |
| 12 | 254452 - Nut | Add To Cart | |
| 13 | 776085 - 900 1.3L Pump Assembly Plate | Call For Details | |
| 14 | 243565 - Hex Bolt | Add To Cart | |
| 15 | 257062 - Washer | Add To Cart | |
| 16 | 253066 - Whiz Nut | Add To Cart | |
| 17 | 723115 - 900 G2 Belt Drive Shield | Call For Details | |
| 18 | 415012 - Sheave | Add To Cart | |
| 19 | 775013 - Washer | Add To Cart | |
| 20 | 270823 - Flanged Bolt | Add To Cart | |
| 21 | 320522 - Vacuum Fan Spindle Housing | Add To Cart | |
| 22 | 110081 - Ball Bearing | Add To Cart | |
| 23 | 903650 - Drive Bearing Spacer | Add To Cart | |
| 24 | 882053 - 900D Drive Shaft | Add To Cart | |
| 25 | 257106 - Washer | Add To Cart | |
| 26 | 415011 - Sheave | Add To Cart | |
| 27 | 261061 - Roll Pin | Add To Cart | |
| 28 | 770045 - Washer | Add To Cart | |
| 29 | 831039 - Lower Flex Coupler | Add To Cart | |
| 30 | 883801 - Retainer Washer | Add To Cart | |
| 31 | 257412 - Lock Washer | Add To Cart | |
| 32 | 243331 - Hex Bolt | Add To Cart | |
| 33 | 281580 - Square Key | Add To Cart | |
| 34 | 381300 - Belt | Add To Cart | |
| 35 | 902539 - Spacer | Add To Cart | |
| 36 | 424150 - Coupling Stabilizer | Add To Cart | |
| 37 | 388560 - Nylon Coupler Sleeve | Add To Cart | |
| 38 | 388576 - Coupler Hub | Add To Cart | |
| 39 | 775007 - Pump Mount Plate | Call For Details | |
| 40 | 290075 - CounterClockWise (CCW) Hydraulic Pump with Solenoid Valve | Add To Cart | |
| - | 125165 - Seal | Add To Cart | |
| 41 | 281540 - Square Key | Add To Cart | |
| 42 | 253192 - Hex Flanged Whiz Bolt | Add To Cart | |
| 43 | 253035 - Whiz Nut | Add To Cart | |
| 44 | 882098 - Pump Plate Pedistal | Call For Details | |
| 45 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 46 | 253191 - Hex Flanged Whiz Bolt | Add To Cart | |
| 47 | 902280 - Spacer | Add To Cart | |
| 48 | 257030 - Washer | Add To Cart | |
| 49 | 259605 - Socket Head Screw | Call For Details | |
| 50 | 243597 - Diamond Head Bolt | Add To Cart | |
| 51 | 257432 - Lock Washer | Add To Cart | |
| 52 | 254470 - Nut | Add To Cart | |
| 53 | 824482 - 900D 1.3L Idler Arm Assembly | Add To Cart | |
| 54 | 121756 - Oilite Bearing | Add To Cart | |
| 55 | 257319 - Spring Washer | Add To Cart | |
| 56 | 121651 - Pedestal Bearing | Add To Cart | |
| 57 | 257044 - Fender Washer | Add To Cart | |
| 58 | 243375 - Hex Bolt | Add To Cart | |
| 59 | 393164 - Idler | Add To Cart | |
| 60 | 243343 - Hex Bolt | Add To Cart | |
| 61 | 284429 - Torsion Spring | Add To Cart | |
| 62 | 902328 - Drive Spacer | Add To Cart | |
| 63 | 644153 - Coupling Connector | Add To Cart | |
| 64 | 821530 - Flex Coupling Disc | Add To Cart | |
| 65 | 885285 - Coupling Adapter | Add To Cart | |
| 66 | 902318 - Coupling Spacer | Add To Cart | |
| 67 | 270085 - Socket Head Screw | Add To Cart | |
| 68 | 243329 - Thin Head Hex Bolt | Add To Cart | |
| 69 | 243330 - Hex Bolt | Add To Cart | |
| 70 | 243340 - Hex Bolt | Add To Cart | |
| 71 | 254450 - Nut | Add To Cart | |
| 72 | 243335 - Hex Bolt | Add To Cart | |
| 73 | 243570 - Hex Bolt | Add To Cart |
