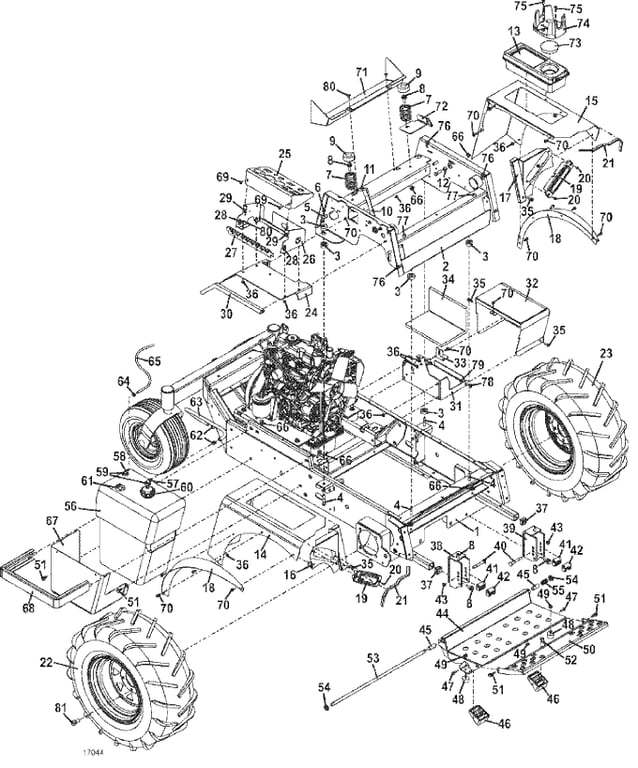

900D 1.3L Tractor Assembly - 2018
Click on diagram to view super-sized image.
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644288 - 900 1.3L Lower Frame | Call For Details | |
| 2 | 645370 - Upper Frame | Call For Details | |
| 3 | 257037 - Step Bushing | Add To Cart | |
| 4 | 243220 - Hex Bolt | Add To Cart | |
| 5 | 774020 - Washer | Add To Cart | |
| 6 | 253450 - Nylon Insert Nut | Add To Cart | |
| 7 | 283516 - Compression Spring | Add To Cart | |
| 8 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 9 | 422127 - Seat Spring Cap | Add To Cart | |
| 10 | 603859 - Throttle Assembly | Add To Cart | |
| - | 323675 - Throttle Control Cable Assembly | Add To Cart | |
| - | 722736 - Heavy Duty Throttle Stop | Add To Cart | |
| 11 | 422150 - Handle Grip | Add To Cart | |
| 12 | 902280 - Spacer | Add To Cart | |
| - | 243335 - Hex Bolt | Add To Cart | |
| - | 257040 - Washer | Add To Cart | |
| 13 | 422040 - Tool Box | Add To Cart | |
| 14 | 693218 - Right Fender w/ Decal | Call For Details | |
| 15 | 693219 - Left Fender w/ Decal | Call For Details | |
| 16 | 645243 - Right Light Panel | Call For Details | |
| 17 | 645244 - Left Light Panel | Call For Details | |
| 18 | 645000 - Tapered Flare | Add To Cart | |
| 19 | 182262 - LED Mini Light Bar Flood Worklamp Mount | Add To Cart | |
| 20 | 253164 - Hex Whiz Bolt | Add To Cart | |
| - | 253020 - Whiz Nut | Add To Cart | |
| 21 | 822632 - Trim | Add To Cart | |
| 22 | 483968 - Right Wheel & Tire Bar Tread | Call For Details | |
| 23 | 483969 - Left Wheel & Tire Bar Tread | Call For Details | |
| - | 482486 - Turf Tire | Add To Cart | |
| - | 482487 - Bar Tread Tire | Add To Cart | |
| - | 483440 - Wheel Only | Add To Cart | |
| - | 483965 - Wheel & Tire Turf Tread | Add To Cart | |
| - | 483968 - Right Wheel & Tire Bar Tread | Call For Details | |
| 24 | 645053 - Console Mount | Call For Details | |
| 25 | 721391 - 900 1.3L Console Panel | Call For Details | |
| 26 | 722869 - Console Frame Mount | Call For Details | |
| 27 | 773102 - Relay Mount | Call For Details | |
| 28 | 424216 - Grommet | Add To Cart | |
| 29 | 254432 - Plastic Retainer Nut | Add To Cart | |
| 30 | 822501 - Console Mount Seal | Call For Details | |
| 31 | 644163 - Battery Box w/o Draw Latch | Add To Cart | |
| 32 | 644478 - Battery Box Lid w/o Latch | Add To Cart | |
| 33 | 754135 - Battery Hold Down Bracket | Add To Cart | |
| 34 | 427278 - Battery Tray Pad | Add To Cart | |
| 35 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 36 | 253025 - Whiz Nut | Add To Cart | |
| 37 | 422065 - Square Platic Plug 1' | Add To Cart | |
| 38 | 643092 - Right QD Deck Mount | Add To Cart | |
| 39 | 643093 - Left QD Deck Mount | Add To Cart | |
| 40 | 247280 - Special Carriage Bolt | Add To Cart | |
| 41 | 282575 - Deck Mount Bushing | Add To Cart | |
| 42 | 282576 - Floating Deck Mount Bushing | Add To Cart | |
| 43 | 604846 - 8 Gallon Diesel Fuel Tank Assembly | Add To Cart | |
| 44 | 644225 - Tilt Decks Footrest | Call For Details | |
| 45 | 422615 - Nylon Bearing | Add To Cart | |
| 46 | 424100 - Footrest Isolator Block | Add To Cart | |
| 47 | 243026 - Hex Bolt | Add To Cart | |
| 48 | 424052 - Rubber Bumper | Add To Cart | |
| 49 | 253035 - Whiz Nut | Add To Cart | |
| 50 | 643304 - Foot Platform Extension | Add To Cart | |
| 51 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 52 | 247130 - Carriage Bolt | Add To Cart | |
| 53 | 780673 - Foot Platform Pivot Rod | Call For Details | |
| 54 | 253470 - Nylon Insert Nut | Add To Cart | |
| 55 | 243026 - Hex Bolt | Add To Cart | |
| 56 | 604847 - 8 Gallon Diesel Tank Assembly (Includes 57-61) | Add To Cart | |
| 57 | 363930 - Fuel Tube | Add To Cart | |
| 58 | 363924 - Fuel Tube | Add To Cart | |
| 59 | 101875 - Fuel Tube Bushing | Add To Cart | |
| 60 | 100211 - Screw-on Fuel Cap | Add To Cart | |
| 61 | 141236 - Electric Fuel Sender | Add To Cart | |
| - | 424274 - Electric Fuel Sender Grommet | Add To Cart | |
| 62 | 280261 - Spring Clamp Hose | Add To Cart | |
| 63 | 821716 - Fuel Line Hose | Add To Cart | |
| 64 | 280257 - Spring Hose Clamp | Add To Cart | |
| 65 | 821741 - Fuel Return Hose | Add To Cart | |
| 66 | 253043 - Whiz Nut | Add To Cart | |
| 67 | 723339 - 8 Gallon Tank Shield | Add To Cart | |
| 68 | 644826 - 8 Gallon Tank Mount | Add To Cart | |
| 69 | 253180 - Bolt | Add To Cart | |
| 70 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 71 | 722765 - I-Coupler Shield | Add To Cart | |
| 72 | 729230 - Brake Pin Reinforcement | Call For Details | |
| 73 | 422066 - Cup Hole Plug 3.252 Inch Diameter | Add To Cart | |
| 74 | 150225 - Cup Holder | Add To Cart | |
| 75 | 259030 - Nylon Screw Cap | Add To Cart | |
| - | 254436 - Nut | Add To Cart | |
| 76 | 254431 - Speed Nut | Add To Cart | |
| 77 | 424015 - Rubber Bumper | Add To Cart | |
| 78 | 257020 - Washer | Add To Cart | |
| 79 | 253440 - Nylon Insert Nut | Add To Cart | |
| 80 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 81 | 248565 - Lug Bolt | Add To Cart | |
| 82 | 605433 - 900D 1.3L Decal Set | Add To Cart |
