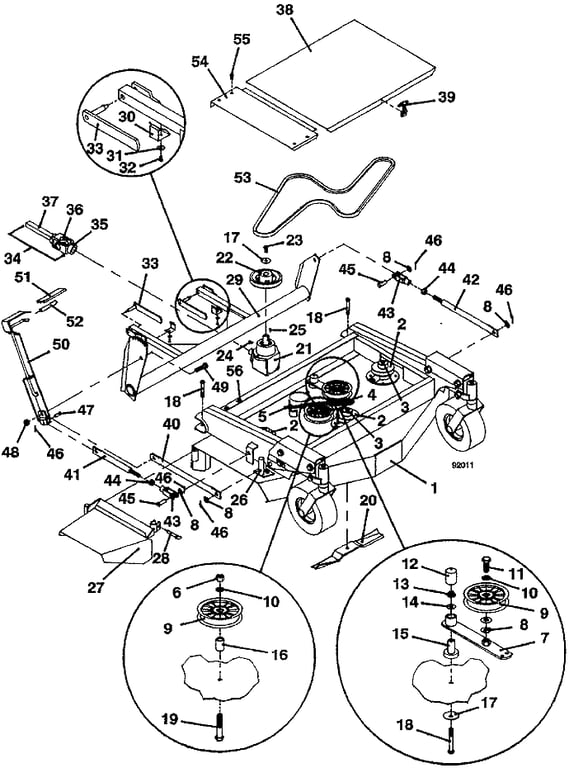

9044 Deck Mower Assembly - 1992
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643258 - 9044 Deck Weldment | Call For Details | |
| 2 | 415826 - Sheave | Add To Cart | |
| 3 | 282630 - Spacer | Add To Cart | |
| 4 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 5 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 6 | 254470 - Nut | Add To Cart | |
| 7 | 824502 - Idler Arm with Bearing Pedestal | Add To Cart | |
| 8 | 257062 - Washer | Add To Cart | |
| 9 | 393225 - Idler | Add To Cart | |
| 10 | 257432 - Lock Washer | Add To Cart | |
| 11 | 243565 - Hex Bolt | Add To Cart | |
| 12 | 422098 - Vinyl Cap | Add To Cart | |
| 13 | 253043 - Whiz Nut | Add To Cart | |
| 14 | 257040 - Washer | Add To Cart | |
| 15 | 121650 - Pedestal Bearing | Add To Cart | |
| 16 | 902325 - Idler Spacer | Add To Cart | |
| 17 | 257041 - Cupped Washer | Add To Cart | |
| 18 | 243365 - Hex Bolt | Add To Cart | |
| 19 | 243600 - Hex Bolt | Add To Cart | |
| 20 | 320234 - 15 inch Hi-Lift Notch Blade | Call For Details | |
| - | 320231 - 15' Medium-Lift Blade | Call For Details | |
| 21 | 390024 - Counter-clockwise Right Angle Gear Box | Add To Cart | |
| 22 | 415876 - Sheave | Add To Cart | |
| 23 | 243331 - Hex Bolt | Add To Cart | |
| 24 | 281833 - Woodruff Key | Add To Cart | |
| 25 | 281828 - Woodruff Key | Add To Cart | |
| 26 | 643235 - Clevis Shaft | Add To Cart | |
| 27 | 643747 - 90 Series Discharge Shield | Add To Cart | |
| 28 | 260400 - Hitch Pin | Add To Cart | |
| 29 | 643525 - 44' Deck Lift Arm | Call For Details | |
| 30 | 280390 - Attaching Pin Clip | Add To Cart | |
| 31 | 770025 - Pin Clip Washer | Add To Cart | |
| 32 | 262644 - Drive Screw | Add To Cart | |
| 33 | 643625 - Attaching Pin | Add To Cart | |
| 34 | 398525 - UN Half Shaft | Add To Cart | |
| 35 | 401010 - Yoke | Add To Cart | |
| 36 | 121010 - Cross Bearing | Add To Cart | |
| 37 | 402605 - Yoke Shaft | Add To Cart | |
| 38 | 603769 - 9044 Shield Assembly | Call For Details | |
| 39 | 281301 - Rubber Draw Latch | Add To Cart | |
| 40 | 734069 - right 44 Deck Lift Linkage | Call For Details | |
| 41 | 603562 - Lift Lever Linkage | Add To Cart | |
| 42 | 603563 - 44' Deck Linkage Arm | Add To Cart | |
| 43 | 265554 - Clevis Yoke | Add To Cart | |
| 44 | 254475 - Nut | Add To Cart | |
| 45 | 261426 - Clevis Pin | Add To Cart | |
| 46 | 260650 - Cotter Pin | Add To Cart | |
| 47 | 261346 - Clevis Pin | Add To Cart | |
| 48 | 253930 - Lock Nut | Add To Cart | |
| 49 | 243580 - Hex Bolt | Add To Cart | |
| 50 | 643529 - Deck Lift Lever | Add To Cart | |
| 51 | 422155 - Handle Grip | Add To Cart | |
| 52 | 422158 - Handle Grip | Add To Cart | |
| 53 | 382990 - Belt | Add To Cart | |
| 54 | 722308 - right 9044 Belt Shield | Add To Cart | |
| 55 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 56 | 254431 - Speed Nut | Add To Cart | |
| 57 | 603280 - Mower Safety Decal Set | Add To Cart |
