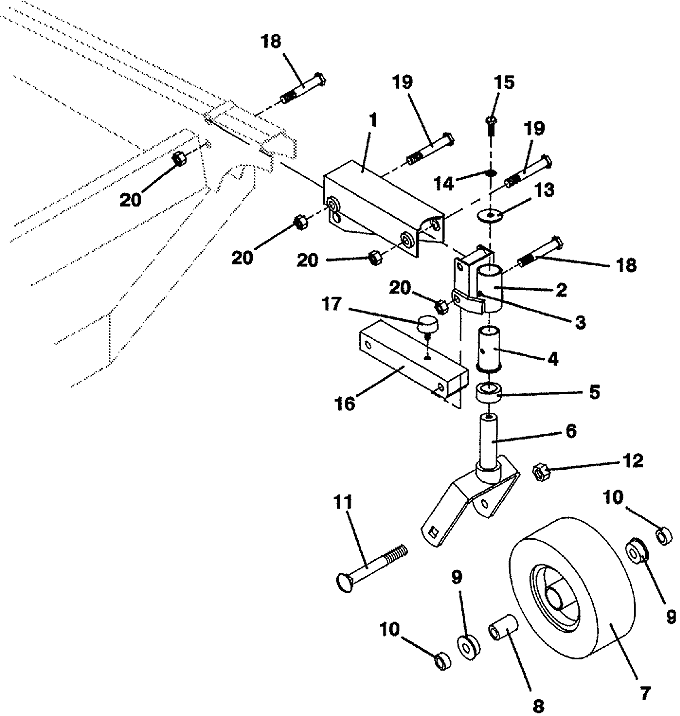

9048 9052 9061 Wheel Lift Assembly - 1992
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643500 - Upper Right Lift Channel | Add To Cart | |
| - | 643501 - Upper Left Lift Channel | Add To Cart | |
| 2 | 603351 - Right Fork Mount with Bearing | Add To Cart | |
| - | 603352 - Left Fork Mount with Bearing | Add To Cart | |
| 3 | 280776 - Zerk Grease Fitting | Add To Cart | |
| 4 | 833260 - Flanged Sintered Bushing | Add To Cart | |
| 5 | 902541 - Spacer | Add To Cart | |
| 6 | 604350 - 90 series Deck Fork | Add To Cart | |
| 7 | 603971 - Semi-Pneumatic Wheel Assembly 9 x 3.5 x 4 | Add To Cart | |
| 8 | 902473 - Deck Wheel Bearing Spacer | Add To Cart | |
| 9 | 120050 - Ball Bearing | Add To Cart | |
| 10 | 902415 - Axle Spacer | Add To Cart | |
| 11 | 247715 - Carriage Bolt | Add To Cart | |
| 12 | 253970 - Lock Nut | Add To Cart | |
| 13 | 774014 - Washer | Add To Cart | |
| 14 | 257412 - Lock Washer | Add To Cart | |
| 15 | 243331 - Hex Bolt | Add To Cart | |
| 16 | 822312 - Deck Stabilizer with Bumper | Add To Cart | |
| 17 | 424052 - Rubber Bumper | Add To Cart | |
| 18 | 243609 - Hex Bolt | Add To Cart | |
| 19 | 243614 - Hex Bolt | Add To Cart | |
| 20 | 253930 - Lock Nut | Add To Cart |
