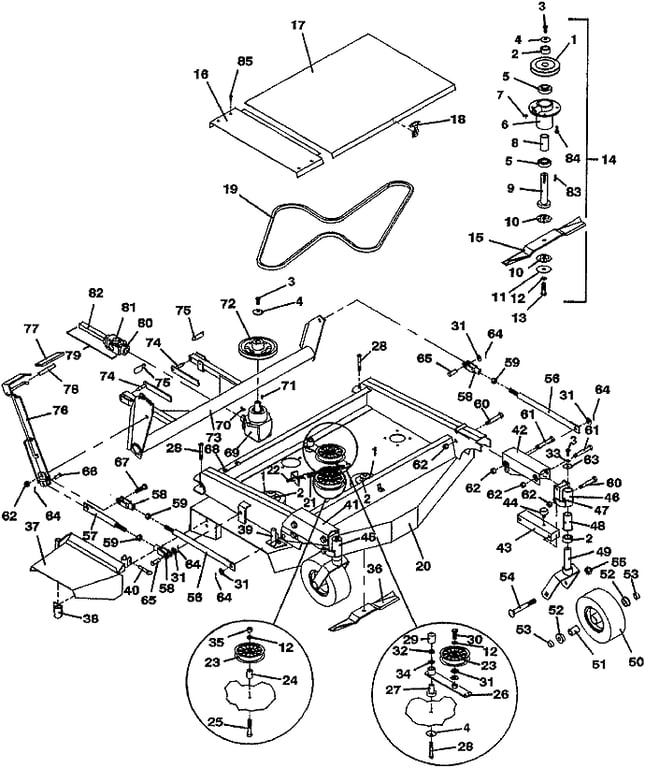

9148 Deck Mower Assembly - 1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 415826 - Sheave | Add To Cart | |
| 2 | 282630 - Spacer | Add To Cart | |
| 3 | 243331 - Hex Bolt | Add To Cart | |
| 4 | 257041 - Cupped Washer | Add To Cart | |
| 5 | 120081 - Ball Bearing without Fluid Seal | Add To Cart | |
| 6 | 320526 - Grease Spindle Housing | Add To Cart | |
| 7 | 280734 - Zerk Grease Fitting | Add To Cart | |
| 8 | 903640 - Tube Bearing Spacer | Add To Cart | |
| 9 | 603775 - Blade Std Spindle Shaft | Add To Cart | |
| 10 | 421200 - Fiber Washer | Add To Cart | |
| 11 | 257061 - Washer | Add To Cart | |
| 12 | 257432 - Lock Washer | Add To Cart | |
| 13 | 243581 - Hex Bolt | Add To Cart | |
| 14 | 623785 - Blade Spindle Assembly (includes items 3-13) | Add To Cart | |
| 15 | 320239 - 18 inch Hi-Lift Notch Blade | Call For Details | |
| - | 320236 - 18 inch Medium-Lift Blade | Call For Details | |
| 16 | 722284 - right 9048/52 Belt Shield | Add To Cart | |
| 17 | 603780 - 9048 Shield Assembly | Call For Details | |
| 18 | 281301 - Rubber Draw Latch | Add To Cart | |
| 19 | 383008 - Belt | Add To Cart | |
| 20 | 643264 - 9148 Deck Weldment | Call For Details | |
| 21 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 22 | 730391 - Idler Adjustment inchJ inch Bolt | Add To Cart | |
| 23 | 393225 - Idler | Add To Cart | |
| 24 | 902325 - Idler Spacer | Add To Cart | |
| 25 | 243600 - Hex Bolt | Add To Cart | |
| 26 | 824502 - Idler Arm with Bearing Pedestal | Add To Cart | |
| 27 | 121650 - Pedestal Bearing | Add To Cart | |
| 28 | 243365 - Hex Bolt | Add To Cart | |
| 29 | 422098 - Vinyl Cap | Add To Cart | |
| 30 | 243565 - Hex Bolt | Add To Cart | |
| 31 | 257062 - Washer | Add To Cart | |
| 32 | 253043 - Whiz Nut | Add To Cart | |
| 33 | 257412 - Lock Nut | Add To Cart | |
| 34 | 257040 - Washer | Add To Cart | |
| 35 | 254470 - Nut | Add To Cart | |
| 36 | 320234 - 15 inch Hi-Lift Notch Blade | Call For Details | |
| - | 320231 - 15 inch Medium-Lift Blade | Call For Details | |
| 37 | 643747 - 90 Series Discharge Shield | Add To Cart | |
| 38 | 643632 - Vac Housing Pivot Mount | Add To Cart | |
| 39 | 643235 - Clevis Shaft | Add To Cart | |
| 40 | 260400 - Hitch Pin | Add To Cart | |
| 41 | 643500 - Upper Right Lift Channel | Add To Cart | |
| 42 | 643501 - Upper Left Lift Channel | Add To Cart | |
| 43 | 822312 - Deck Stabilizer with Bumper | Add To Cart | |
| 44 | 424052 - Rubber Bumper | Add To Cart | |
| 45 | 603351 - Right Fork Mount with Bearing | Add To Cart | |
| 46 | 603352 - Left Fork Mount with Bearing | Add To Cart | |
| 47 | 280776 - Zerk Grease Fitting | Add To Cart | |
| 48 | 833260 - Flanged Sintered Bushing | Add To Cart | |
| 49 | 604350 - 90 Series Deck Fork | Add To Cart | |
| 50 | 603971 - 9 x 3.5 x 4 Semi-Pneumatic Wheel Assembly | Add To Cart | |
| 51 | 902473 - Deck Wheel Bearing Spacer | Add To Cart | |
| 52 | 120050 - Ball Bearing | Add To Cart | |
| 53 | 902415 - Axle Spacer | Add To Cart | |
| 54 | 247715 - Carriage Bolt | Add To Cart | |
| 55 | 253970 - Lock Nut | Add To Cart | |
| 56 | 603564 - 52 Inch Deck Linkage Arm | Add To Cart | |
| 57 | 603562 - Lift Lever Linkage | Add To Cart | |
| 58 | 265554 - Clevis Yoke | Add To Cart | |
| 59 | 254475 - Nut | Add To Cart | |
| 60 | 243609 - Hex Bolt | Add To Cart | |
| 61 | 243614 - Hex Bolt | Add To Cart | |
| 62 | 253930 - Lock Nut | Add To Cart | |
| 63 | 774014 - Washer | Add To Cart | |
| 64 | 260650 - Cotter Pin | Add To Cart | |
| 65 | 261426 - Clevis Pin | Add To Cart | |
| 66 | 261346 - Clevis Pin | Add To Cart | |
| 67 | 243580 - Hex Bolt | Add To Cart | |
| 68 | 254431 - Speed Nut | Add To Cart | |
| 69 | 390024 - Counter-Clockwise Right Angle Gearbox | Add To Cart | |
| 70 | 281833 - Woodruff Key | Add To Cart | |
| 71 | 281828 - Woodruff Key | Add To Cart | |
| 72 | 415886 - Sheave | Add To Cart | |
| 73 | 643494 - 9148 Offset Lift Arm | Call For Details | |
| 74 | 643625 - Attaching Pin | Add To Cart | |
| 75 | 261848 - Safety Pin | Add To Cart | |
| 76 | 643529 - Deck Lift Lever | Add To Cart | |
| 77 | 422155 - Handle Grip | Add To Cart | |
| 78 | 422158 - Handle Grip | Add To Cart | |
| 79 | 398525 - UN Half Shaft | Add To Cart | |
| 80 | 401010 - Yoke | Add To Cart | |
| 81 | 121010 - Cross Bearing | Add To Cart | |
| 82 | 402605 - Yoke Shaft | Add To Cart | |
| 83 | 281580 - Square Key | Add To Cart | |
| 84 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 85 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 86 | 603280 - Mower Safety Decal Set | Add To Cart |
