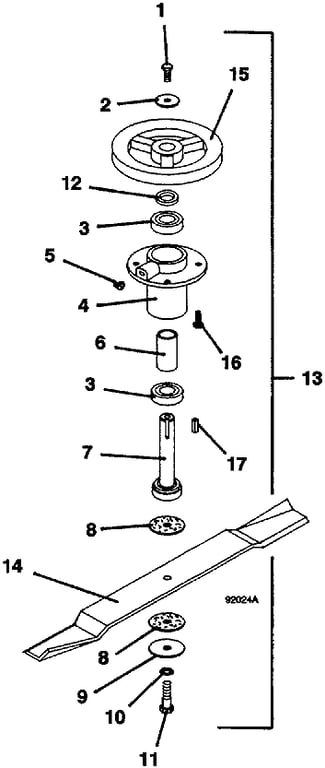

9272 Blade Spindle Assembly - 1993
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 243331 - Hex Bolt | Add To Cart | |
| 2 | 257041 - Cupped Washer | Add To Cart | |
| 3 | 110082 - Single Seal Ball Bearing | Add To Cart | |
| 4 | 320526 - Spindle Grease Housing | Add To Cart | |
| 5 | 280734 - Zerk Grease Fitting | Add To Cart | |
| 6 | 903640 - Tube Bearing Spacer | Add To Cart | |
| 7 | 604770 - 25mm Spindle Shaft Assembly | Add To Cart | |
| 8 | 421200 - Fiber Washer | Add To Cart | |
| 9 | 257061 - Washer | Add To Cart | |
| 10 | 257432 - Lock Washer | Add To Cart | |
| 11 | 243581 - Hex Bolt | Add To Cart | |
| 12 | 282607 - Spacer | Add To Cart | |
| 13 | 623784 - Blade Spindle Assembly (includes items 1 - 12) | Add To Cart | |
| 14 | 320253 - 25 Inch Notched High Lift Blade | Call For Details | |
| - | 320250 - 25 Inch Medium Lift Blade | Call For Details | |
| - | 320252 - 25 Inch Contour Blade | Call For Details | |
| - | 320254 - 25 Inch Extreme High Lift Blade | Call For Details | |
| 15 | 414745 - Sheave | Add To Cart | |
| 16 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 16 | 281586 - Square Key | Add To Cart |
