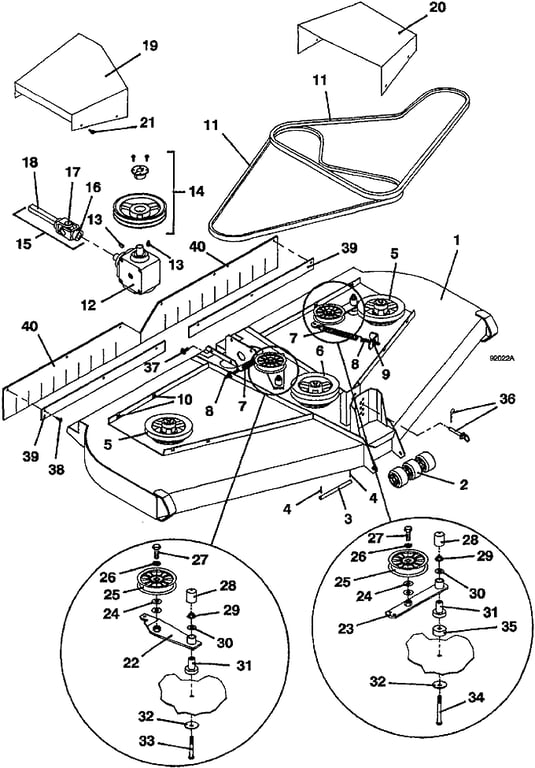

9272 Mower Assembly - 1994
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643276 - 9272 Mower Deck | Call For Details | |
| 2 | 426136 - Roller Assembly | Add To Cart | |
| 3 | 780606 - Roller Pin | Add To Cart | |
| 4 | 260650 - Cotter Pin | Add To Cart | |
| 5 | 414745 - Sheave | Add To Cart | |
| 6 | 414945 - Sheave | Add To Cart | |
| 7 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 8 | 730391 - J Bolt Idler Adjustment | Add To Cart | |
| 9 | 254450 - Nut | Add To Cart | |
| 10 | 254431 - Speed Nut | Add To Cart | |
| 11 | 382062 - Belt | Add To Cart | |
| 12 | 390028 - Right Angle Gearbox | Add To Cart | |
| 13 | 281839 - Woodruff Key | Add To Cart | |
| 14 | 604759 - Sheave with Hub | Add To Cart | |
| 15 | 398520 - UN Half Shaft | Add To Cart | |
| 16 | 401013 - Yoke | Add To Cart | |
| 17 | 121010 - Cross Bearing | Add To Cart | |
| 18 | 402605 - Yoke Shaft | Add To Cart | |
| 19 | 643753 - 72 inch Right Belt Shield | Call For Details | |
| 20 | 643754 - 72 inch Left Belt Shield | Call For Details | |
| 21 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 22 | 824513 - 72 inch Lower Idler Arm | Add To Cart | |
| 23 | 824502 - 52 61 Idler Arm with Bearing Pedestal | Add To Cart | |
| 24 | 257062 - Washer | Add To Cart | |
| 25 | 393225 - Idler | Add To Cart | |
| 26 | 257432 - Lock Washer | Add To Cart | |
| 27 | 243565 - Hex Bolt | Add To Cart | |
| 28 | 422098 - Vinyl Cap | Add To Cart | |
| 29 | 253043 - Whiz Nut | Add To Cart | |
| 30 | 257040 - Washer | Add To Cart | |
| 31 | 121650 - Pedestal Bearing | Add To Cart | |
| 32 | 257041 - Cupped Washer | Add To Cart | |
| 33 | 243365 - Hex Bolt | Add To Cart | |
| 34 | 243385 - Hex Bolt | Add To Cart | |
| 35 | 902317 - Idler Arm Spacer | Add To Cart | |
| 36 | 603625 - Pin Clip Assembly | Add To Cart | |
| - | 260525 - Hair Pin | Add To Cart | |
| 37 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 38 | 253177 - Whiz Truss Bolt | Add To Cart | |
| 39 | 775229 - Rubber Deflector Strap | Call For Details | |
| 40 | 424184 - 9272 Deck Flap | Add To Cart |
