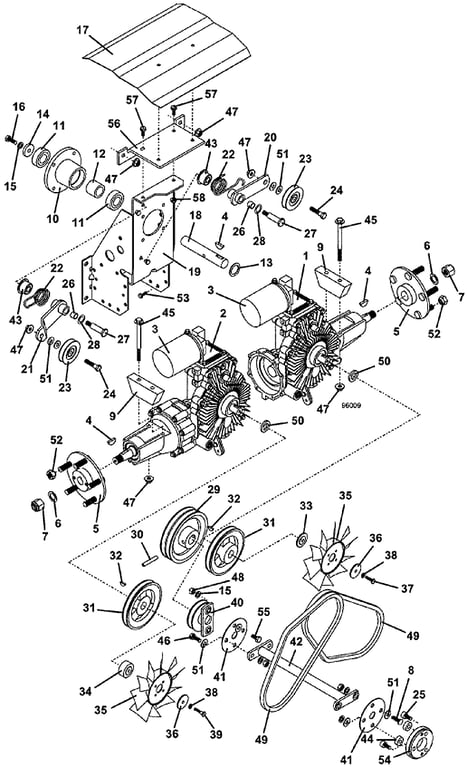

928D Drive Assembly - 1997
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604870 - right 900 Transmission | Call For Details | |
| 2 | 604871 - left 900 Transmission | Call For Details | |
| 3 | 100855 - High-Efficiency Transaxle Oil Filter | Add To Cart | |
| 4 | 281845 - Woodruff Key | Add To Cart | |
| 5 | 603429 - Tapered 5 Bolt Hub Assembly | Add To Cart | |
| - | 248570 - Wheel Stud Bolt | Add To Cart | |
| 6 | 257091 - 14 GA Bushing Washer | Add To Cart | |
| 7 | 253501 - Nut with Nylon Insert | Add To Cart | |
| 8 | 830040 - Hex Bolt | Add To Cart | |
| 9 | 901745 - Transaxle Tapered Spacer | Add To Cart | |
| 10 | 320522 - Vac Fan Spindle Housing | Add To Cart | |
| 11 | 110081 - 25mm 2 Reg Seal Ball Bearing | Add To Cart | |
| 12 | 903650 - Drive Bearing Spacer | Add To Cart | |
| 13 | 257106 - Washer | Add To Cart | |
| 14 | 883801 - Washer | Add To Cart | |
| 15 | 257412 - Lock Washer | Add To Cart | |
| 16 | 243331 - Hex Bolt | Add To Cart | |
| 17 | 693771 - '96 900 Drive Shield with Decal | Add To Cart | |
| 18 | 603764 - Shaft/Key Assembly (includes item 4) | Add To Cart | |
| 19 | 643112 - Center Drive Mount | Add To Cart | |
| 20 | 603066 - Lower Idler Arm Assembly with Spring | Add To Cart | |
| 21 | 603065 - Upper Idler Arm Assembly with Spring | Add To Cart | |
| 22 | 284425 - Torsion Spring | Add To Cart | |
| 23 | 393312 - Idler | Add To Cart | |
| 24 | 243345 - Hex Bolt | Add To Cart | |
| 25 | 271120 - Hex Bolt | Add To Cart | |
| 26 | 422558 - Nylon Bearing | Add To Cart | |
| 27 | 259745 - Shoulder Bolt | Add To Cart | |
| 28 | 282350 - Steel Shim | Add To Cart | |
| 29 | 414560 - Sheave | Add To Cart | |
| 30 | 261061 - Roll Pin | Add To Cart | |
| 31 | 415550 - Sheave | Add To Cart | |
| 32 | 281829 - Woodruff Key | Add To Cart | |
| 33 | 423723 - Fan Spacer | Add To Cart | |
| 34 | 423724 - Fan Spacer | Add To Cart | |
| 35 | 320856 - 7 inch counterclockwise Nylon Fan | Add To Cart | |
| 36 | 774023 - Flat Washer | Add To Cart | |
| 37 | 243030 - Hex Bolt | Add To Cart | |
| 38 | 257392 - Lock Washer | Add To Cart | |
| 39 | 243045 - Hex Bolt | Add To Cart | |
| 40 | 824551 - Coupling Hub with Sheave | Add To Cart | |
| 41 | 821530 - Flex Coupling Disc | Add To Cart | |
| 42 | 643162 - Coupling Connector | Add To Cart | |
| 43 | 422750 - Idler Arm Double Bearing | Add To Cart | |
| 44 | 902318 - Spacer | Add To Cart | |
| 45 | 253215 - Flange Bolt | Add To Cart | |
| 46 | 243330 - Hex Bolt | Add To Cart | |
| 47 | 253043 - Whiz Nut | Add To Cart | |
| 48 | 254450 - Nut | Add To Cart | |
| 49 | 381904 - Belt | Add To Cart | |
| 50 | 775002 - Washer | Add To Cart | |
| 51 | 257030 - Washer | Add To Cart | |
| 52 | 254472 - Lug Nut | Add To Cart | |
| 53 | 253174 - Hex Flange Whiz Bolt | Add To Cart | |
| 54 | 885285 - Coupling Adapter | Add To Cart | |
| 55 | 243320 - Hex Bolt | Add To Cart | |
| 56 | 726139 - Dampeners Mount Plate | Call For Details | |
| 57 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 58 | 253035 - Whiz Nut | Add To Cart |
