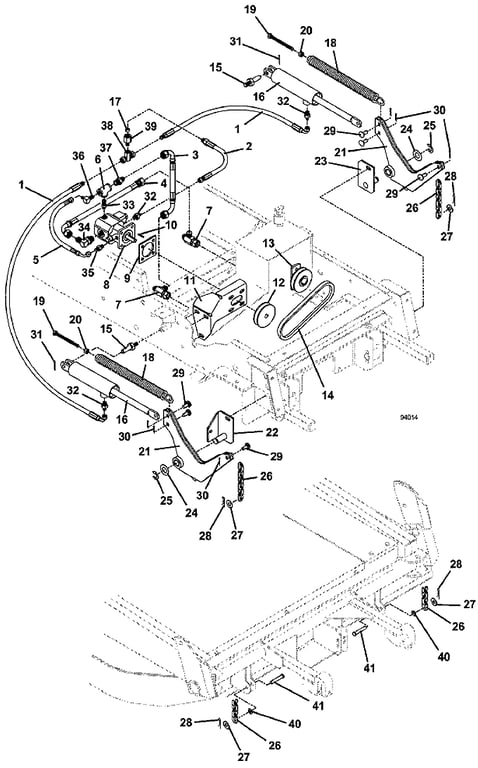

928D Hydraulic Lift Assembly - 1995
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 424306 - Hose Assembly | Add To Cart | |
| 2 | 424300 - Hose Assembly | Add To Cart | |
| 3 | 424330 - Hose Assembly | Add To Cart | |
| 4 | 424334 - Hose Assembly | Add To Cart | |
| 5 | 424302 - Hose Assembly | Add To Cart | |
| 6 | 366115 - Reducer Tee | Add To Cart | |
| 7 | 366910 - Flare Tee | Add To Cart | |
| 8 | 290072 - Hydraulic Pump with Clockwise Solenoid Valve | Add To Cart | |
| - | 144950 - Hydraulic Solenoid Valve | Add To Cart | |
| 9 | 775049 - Hydraulic Pump Spacer | Call For Details | |
| 10 | 281540 - Square Key | Add To Cart | |
| 11 | 643278 - Hydraulic Pump Mount | Call For Details | |
| 12 | 831436 - Sheave - Hydraulic Pump | Add To Cart | |
| 13 | 824551 - Coupling Hub with Sheave | Add To Cart | |
| 14 | 381883 - Belt | Add To Cart | |
| 15 | 887119 - Cylinder Mount Pin with Groove | Add To Cart | |
| 16 | 290021 - Hydraulic Cylinder | Add To Cart | |
| - | 290095 - Hydraulic Lift Cylinder Seal Kit | Add To Cart | |
| 17 | 780507 - Flow Restrictor | Add To Cart | |
| 18 | 605760 - Traction Kit Spring Assembly | Add To Cart | |
| 19 | 243361 - Hex Bolt | Add To Cart | |
| 20 | 254450 - Nut | Add To Cart | |
| 21 | 603716 - Hydraulic Lift Rocker | Add To Cart | |
| 22 | 644517 - Right 900 Lift Pivot | Add To Cart | |
| 23 | 644518 - Left 900 Lift Pivot | Add To Cart | |
| 24 | 257092 - 18 Gauge Bushing Washer | Add To Cart | |
| 25 | 263529 - External Retainer | Add To Cart | |
| 26 | 820322 - Lift Chain - 6 Links | Add To Cart | |
| 27 | 257040 - Washer | Add To Cart | |
| 28 | 260523 - Hair Pin | Add To Cart | |
| 29 | 261339 - Clevis Pin | Add To Cart | |
| 30 | 260648 - Cotter Pin | Add To Cart | |
| 31 | 260652 - Cotter Pin | Add To Cart | |
| 32 | 360052 - O Ring Adapter | Add To Cart | |
| 33 | 360040 - O Ring Adapter | Call For Details | |
| 34 | 360060 - O Ring Adapter | Call For Details | |
| 35 | 360050 - O Ring Adapter | Call For Details | |
| 36 | 360025 - Adapter Flare | Call For Details | |
| 37 | 360015 - Flare Adapter | Call For Details | |
| 38 | 360005 - Swivel Tee Adapter | Add To Cart | |
| 39 | 360045 - O Ring Adapter | Add To Cart | |
| 40 | 262950 - Push-On Retainer | Add To Cart | |
| 41 | 261362 - Clevis Pin | Add To Cart |
