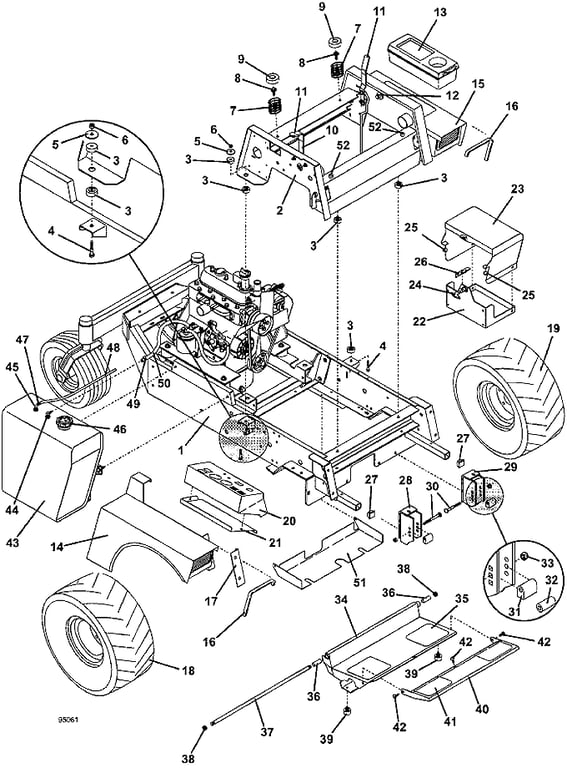

928D Tractor Assembly - 1997
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643826 - 928 Lower Frame | Call For Details | |
| 2 | 643869 - 97 Upper Frame | Call For Details | |
| 3 | 257037 - Step Bushing | Add To Cart | |
| 4 | 243220 - Hex Bolt | Add To Cart | |
| 5 | 774020 - Washer | Add To Cart | |
| 6 | 253450 - Nut with Nylon Insert | Add To Cart | |
| 7 | 283516 - Compression Spring | Add To Cart | |
| 8 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 9 | 422127 - Seat Spring Cap | Add To Cart | |
| 10 | 603856 - Throttle Assembly | Add To Cart | |
| - | 323640 - Control Cable Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| 11 | 422150 - Handle Grip | Add To Cart | |
| 12 | 902280 - Spacer | Add To Cart | |
| 13 | 422040 - Tool Box | Add To Cart | |
| 14 | 693210 - 700/900 right Fender with Safety Decal | Add To Cart | |
| - | 163370 - 928D right Trim Decal | Add To Cart | |
| 15 | 693211 - 700/900 left Fender with Safety Decal | Add To Cart | |
| - | 163371 - 928D left Trim Decal | Add To Cart | |
| 16 | 822635 - 700/900 Fender Edge Trim | Add To Cart | |
| 17 | 722062 - right Fender Cover Panel | Add To Cart | |
| 18 | 483930 - 21 x 11 x 8 right Wheel Bar Tread Tire | Add To Cart | |
| - | 482478 - 21 x 11 x 8 Bar Tread Tire | Call For Details | |
| - | 483415 - 5-Bolt 8 x 9.125 Wheel | Add To Cart | |
| 19 | 483931 - 21 x 11 x 8 left Wheel Bar Tread Tire | Add To Cart | |
| - | 482478 - 21 x 11 x 8 Bar Tread Tire | Call For Details | |
| - | 483415 - 5-Bolt 8 x 9.125 Wheel | Add To Cart | |
| 20 | 693104 - Console with Decal for Liquid Cooled Diesel model | Add To Cart | |
| 21 | 721152 - 96 Console Filler Panel | Add To Cart | |
| 22 | 603105 - Contour Battery Box Assembly | Add To Cart | |
| 23 | 603570 - Battery Box Lid Assembly | Add To Cart | |
| 24 | 281301 - Rubber Draw Latch | Add To Cart | |
| 25 | 424029 - Rubber Bumper | Add To Cart | |
| 26 | 723017 - Bolt On Battery Clamp | Add To Cart | |
| 27 | 422065 - 1 inch (Internal Dimension) Square Plastic Plug | Add To Cart | |
| 28 | 643092 - 700/900 right Quick Disconnect Deck Mount | Add To Cart | |
| 29 | 643093 - 700/900 left Quick Disconnect Deck Mount | Add To Cart | |
| 30 | 247280 - Special Carriage Bolt | Add To Cart | |
| 31 | 282575 - Deck Mount Bushing | Add To Cart | |
| 32 | 282576 - Floating Deck Mount Bushing | Add To Cart | |
| 33 | 253460 - Nut with Nylon Insert | Add To Cart | |
| 34 | 604346 - 700/900 Adjustable Foot Platform Assembly | Add To Cart | |
| 35 | 420905 - Foot Rest Tread | Add To Cart | |
| 36 | 422615 - Nylon Bearing | Add To Cart | |
| 37 | 780673 - Foot Rest Pivot Rod | Call For Details | |
| 38 | 253470 - Nylon Insert Nut | Add To Cart | |
| 39 | 424052 - Rubber Bumper | Add To Cart | |
| 40 | 603301 - 700 Foot Platform Extension | Add To Cart | |
| 41 | 420904 - Foot Rest Tread Extension | Add To Cart | |
| 42 | 247130 - Carriage Bolt | Add To Cart | |
| 43 | 693234 - 8 Gal Diesel Fuel Tank with Decal | Add To Cart | |
| 44 | 101837 - Fuel Tube | Add To Cart | |
| 45 | 101835 - Fuel Tube | Add To Cart | |
| 46 | 141130 - Cap with Fuel Level | Add To Cart | |
| 47 | 280260 - Spring Clamp Hose | Add To Cart | |
| 48 | 821740 - Fuel Line Return Hose | Add To Cart | |
| 49 | 280270 - Hose Clamp | Add To Cart | |
| 50 | 821716 - Fuel Line Hose | Add To Cart | |
| 51 | 721243 - Hydro Fan Screen | Add To Cart | |
| 52 | 424015 - Rubber Bumper | Add To Cart | |
| 53 | 603276 - 928D Decal Set | Add To Cart |
