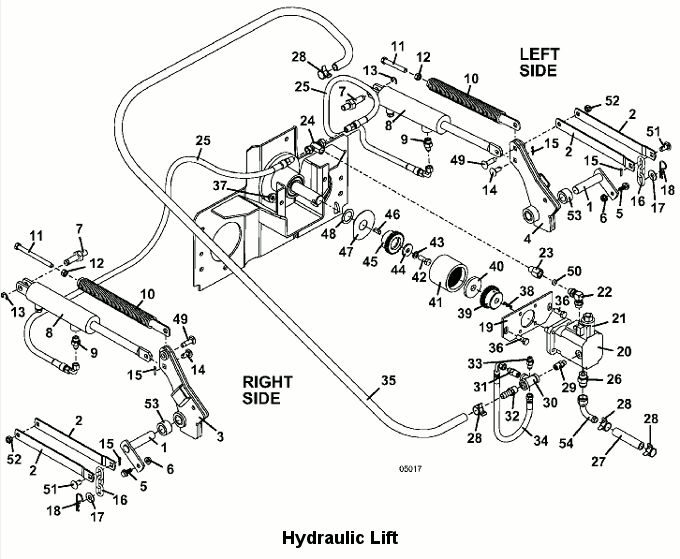

928D2 Hydraulic Lift Assembly serial number 5517202 and below - 2006
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644635 - TRACTION KIT PIN | Add To Cart | |
| 2 | 732410 - 600 with SL DECK LIFT STRAP | Add To Cart | |
| 3 | 603701 - right ROCKER without EXTENSION | Add To Cart | |
| - | 121766 - OILITE BEARING | Add To Cart | |
| 4 | 603702 - left ROCKER without EXTENSION | Add To Cart | |
| - | 121766 - OILITE BEARING | Add To Cart | |
| 5 | 253192 - HEX WHIZ FLANGE BOLT | Add To Cart | |
| 6 | 253035 - WHIZ NUT | Add To Cart | |
| 7 | 887119 - CYLINDER MOUNT PIN with GROOVE | Add To Cart | |
| 8 | 290021 - HYDRAULIC CYLINDER | Add To Cart | |
| - | 290096 - HYDRAULIC LIFT CYLINDER HEAD SEAL KIT | Add To Cart | |
| 9 | 360052 - ADAPTER O-RING | Add To Cart | |
| 10 | 604839 - SPRING & PLUG NUT ASSEMBLY | Add To Cart | |
| 11 | 243395 - HEX BOLT | Add To Cart | |
| 12 | 254450 - NUT | Add To Cart | |
| 13 | 263500 - EXTERNAL RETAINER | Add To Cart | |
| 14 | 261339 - CLEVIS PIN | Add To Cart | |
| 15 | 260648 - COTTER PIN | Add To Cart | |
| 16 | 820320 - LIFT CHAIN | Add To Cart | |
| 17 | 257040 - WASHER | Add To Cart | |
| 18 | 260523 - HAIR PIN | Add To Cart | |
| 19 | 725326 - PUMP MOUNT PLATE | Call For Details | |
| 20 | 290074 - counter-clockwise HYDRAULIC PUMP with SOLENOID VALVE | Add To Cart | |
| - | 125166 - SEAL | Add To Cart | |
| 21 | 144950 - HYDRAULIC SOLENDOID VALVE | Add To Cart | |
| 22 | 360055 - 90 degree O-RING ADAPTER | Call For Details | |
| 23 | 360045 - O-RING ADAPTER | Add To Cart | |
| 24 | 360005 - SWIVEL TEE ADAPTER | Add To Cart | |
| 25 | 424310 - HOSE ASSEMBLY | Add To Cart | |
| 26 | 363832 - STEEL O-RING BOSS FITTING | Add To Cart | |
| 27 | 821781 - HUDRAULIC HOSE | Add To Cart | |
| 28 | 280266 - SPRING HOSE CLAMP | Add To Cart | |
| 29 | 360040 - O-RING ADAPTER | Call For Details | |
| 30 | 366115 - REDUCER TEE | Add To Cart | |
| 31 | 360012 - FITTING ADAPTER | Call For Details | |
| 32 | 360260 - BRASS HOSE INSERT | Call For Details | |
| 33 | 360050 - O-RING ADAPTER | Call For Details | |
| 34 | 424302 - HOSE ASSEMBLY | Add To Cart | |
| 35 | 821806 - .5 HYDRAULIC HOSE | Add To Cart | |
| 36 | 243330 - HEX BOLT | Add To Cart | |
| 37 | 253043 - WHIZ NUT | Add To Cart | |
| 38 | 281540 - SQUARE KEY | Add To Cart | |
| 39 | 388576 - COUPLER HUB | Add To Cart | |
| 40 | 424150 - COUPLING STABILIZER | Add To Cart | |
| 41 | 388560 - NYLON COUPLER SLEEVE | Add To Cart | |
| 42 | 243331 - HEX BOLT | Add To Cart | |
| 43 | 257412 - LOCK WASHER | Add To Cart | |
| 44 | 774020 - WASHER | Add To Cart | |
| 45 | 831039 - LOWER FLEX COUPLER | Add To Cart | |
| 46 | 281580 - SQUARE KEY | Add To Cart | |
| 47 | 770045 - WASHER | Add To Cart | |
| 48 | 257106 - WASHER | Add To Cart | |
| 49 | 247254 - CARRIAGE BOLT | Add To Cart | |
| 50 | 780507 - FLOW RESTRICTOR | Add To Cart | |
| 51 | 261336 - CLEVIS PIN | Add To Cart | |
| 52 | 253890 - LOCK NUT | Add To Cart | |
| 53 | 902296 - 900 TRACTION KIT SPACER | Add To Cart | |
| 54 | 363857 - FITTING | Call For Details |
