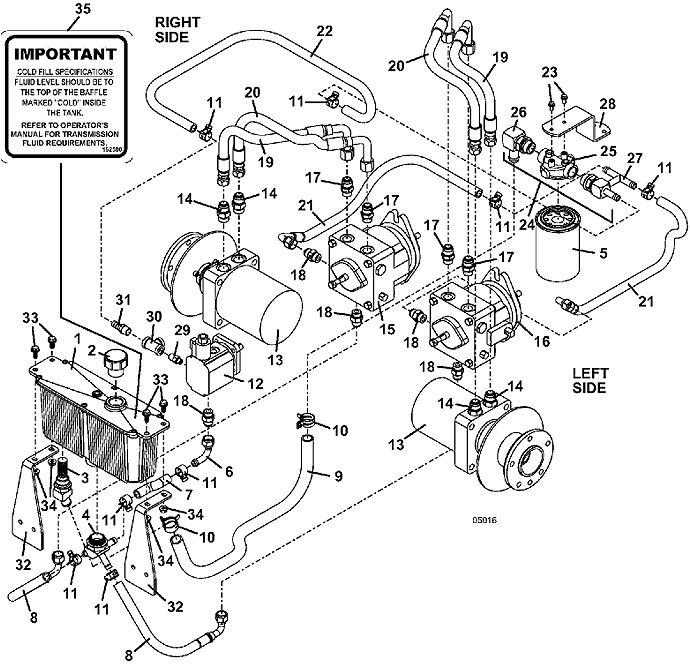

928D2 Reservoir & Hose Assembly serial number 5517203 and above - 2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 101690 - G2 OIL TANK ASSEMBLY | Add To Cart | |
| 2 | 100760 - FILL CAP | Add To Cart | |
| 3 | 366571 - FITTING with DIFFUSER | Call For Details | |
| 4 | 366570 - TRIPLE-BARBED FITTING | Call For Details | |
| 5 | 100860 - TRANSMISSION OIL FILTER | Add To Cart | |
| 6 | 363857 - FITTING | Call For Details | |
| 7 | 821781 - HYDRAULIC HOSE | Add To Cart | |
| 8 | 424339 - HOSE ASSEMBLY | Add To Cart | |
| 9 | 821804 - .75 HYDRAULIC HOSE | Add To Cart | |
| 10 | 280268 - SPRING HOSE CLAMP | Add To Cart | |
| 11 | 280266 - SPRING HOSE CLAMP | Add To Cart | |
| 12 | 290074 - counter-clockwise HYDRAULIC PUMP with SOLENOID VALVE | Add To Cart | |
| 13 | 603604 - WHEEL MOTOR with HUB | Add To Cart | |
| 14 | 360069 - ADAPTER FITTING | Add To Cart | |
| - | 126529 - O RING | Add To Cart | |
| - | 126537 - O RING | Add To Cart | |
| 15 | 391453 - right HYDRO PUMP | Add To Cart | |
| 16 | 391452 - left HYDRO PUMP | Add To Cart | |
| 17 | 360064 - ADAPTER FITTING | Add To Cart | |
| - | 126529 - O RING | Add To Cart | |
| - | 126535 - O RING | Add To Cart | |
| 18 | 363832 - O-RING STEEL BOSS FITTING | Add To Cart | |
| 19 | 424378 - HOSE ASSEMBLY | Add To Cart | |
| 20 | 424379 - HOSE ASSEMBLY | Add To Cart | |
| 21 | 424344 - HOSE ASSEMBLY | Add To Cart | |
| 22 | 821806 - .5 HYDRAULIC HOSE | Add To Cart | |
| 23 | 253173 - HEX WHIZ BOLT | Add To Cart | |
| 24 | 101021 - G2 FILTER BASE ASSEMBLY with HYD | Call For Details | |
| 25 | 101027 - FILTER BASE | Add To Cart | |
| 26 | 360076 - 12 BEADED O-RING ADAPTER | Call For Details | |
| 27 | 360075 - 3 BEADED O-RING ADAPTER | Call For Details | |
| 28 | 732614 - 928DS FILTER MOUNT | Call For Details | |
| 29 | 360040 - O-RING ADAPTER | Call For Details | |
| 30 | 366115 - REDUCER TEE | Add To Cart | |
| 31 | 360260 - BRASS HOSE INSERT | Call For Details | |
| 32 | 755128 - right ALUMINUM OIL TANK MOUNT | Add To Cart | |
| 33 | 253192 - HEX FLANGE WHIZ BOLT | Add To Cart | |
| 34 | 253035 - WHIZ NUT | Add To Cart | |
| 35 | 162580 - IMPORTANT OIL SPEC DECAL | Add To Cart |
