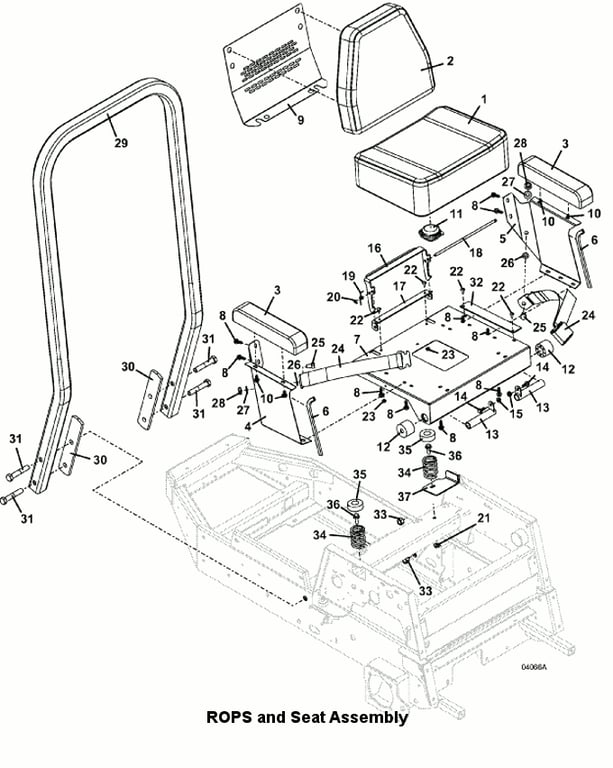

928D2 ROPS & Seat Assembly - 2006
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321518 - CORDURA SEAT CUSHION | Add To Cart | |
| 2 | 321520 - CORDURA BACK CUSHION with LOGO | Add To Cart | |
| 3 | 321523 - CORDURA CONTOURED ARM REST | Add To Cart | |
| 4 | 723386 - right SEAT SIDE with ARMREST EXTENSION | Add To Cart | |
| 5 | 723387 - left SEAT SIDE with ARMREST EXTENSION | Add To Cart | |
| 6 | 822630 - SEAT EDGE TRIM | Add To Cart | |
| 7 | 644816 - DUAL LATCH SEAT MOUNT | Call For Details | |
| 8 | 253193 - HEX FLANGE WHIZ BOLT | Add To Cart | |
| 9 | 722388 - SEAT REINFORCEMENT PANEL | Add To Cart | |
| 10 | 253191 - HEX FLANGE WHIZ BOLT | Add To Cart | |
| 11 | 183871 - TWIST-IN SEAT SWITCH | Add To Cart | |
| 12 | 424095 - SEAT ISOLATOR | Add To Cart | |
| 13 | 644618 - SEAT HINGE PIN | Add To Cart | |
| 14 | 253192 - HEX FLANGE WHIZ BOLT | Add To Cart | |
| 15 | 253035 - WHIZ NUT | Add To Cart | |
| 16 | 754240 - SEAT DUAL LATCH | Add To Cart | |
| 17 | 754226 - DUAL LATCH MOUNT BRACKET | Add To Cart | |
| 18 | 730230 - SEAT LATCH PIVOT PIN | Call For Details | |
| 19 | 284408 - TORSION SPRING | Add To Cart | |
| 20 | 260606 - COTTER RING | Add To Cart | |
| 21 | 253043 - WHIZ NUT | Add To Cart | |
| 22 | 253176 - TRUSS WHIZ BOLT | Add To Cart | |
| 23 | 253025 - WHIZ NUT | Add To Cart | |
| 24 | 324200 - NON-RETRACTING SEAT BELT | Add To Cart | |
| 25 | 243551 - HEX BOLT | Add To Cart | |
| 26 | 257063 - WASHER | Add To Cart | |
| 27 | 257062 - WASHER | Add To Cart | |
| 28 | 253470 - NYLON INSERT NUT | Add To Cart | |
| 29 | 324103 - 700/900 ROPS TUBE | Add To Cart | |
| 30 | 901645 - 700/900 ROPS SPACER | Add To Cart | |
| 31 | 243840 - HEX BOLT | Add To Cart | |
| 32 | 424176 - SEAT PANEL FLAP | Call For Details | |
| 33 | 253970 - LOCK NUT | Add To Cart | |
| 34 | 283516 - COMPRESSION SPRING | Add To Cart | |
| 35 | 422127 - SEAT SPRING CAP | Add To Cart | |
| 36 | 253203 - WHIZ FLANGE BOLT | Add To Cart | |
| 37 | 729230 - BRAKE PIN REINFORCEMENT | Call For Details |
