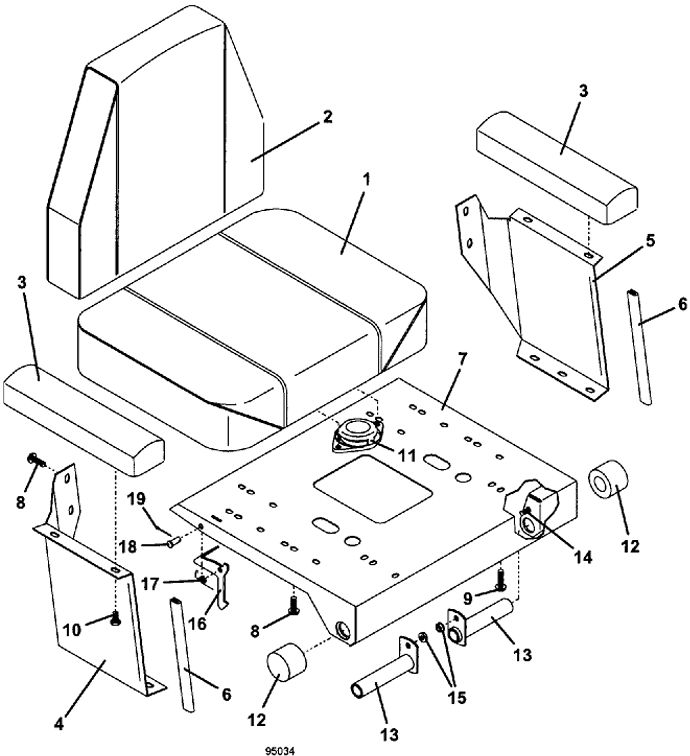

928D2 Seat Assembly - 1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321515 - FORMED SEAT CUSHION | Add To Cart | |
| 2 | 321511 - BACK CUSHION | Add To Cart | |
| 3 | 321501 - SEAT ARMREST | Add To Cart | |
| 4 | 724310 - right SIDE SEAT MEMBER | Add To Cart | |
| 5 | 724311 - left SIDE SEAT MEMBER | Add To Cart | |
| 6 | 822630 - SEAT EDGE TRIM | Add To Cart | |
| 7 | 643912 - SEAT ISO (PLATFORM) W/A | Add To Cart | |
| 8 | 253193 - HEX FLANGE WHIZ BOLT | Add To Cart | |
| 9 | 253194 - HEX WHIZ BOLT | Add To Cart | |
| 10 | 253191 - HEX FLANGE WHIZ BOLT | Add To Cart | |
| 11 | 183870 - SEAT SWITCH | Add To Cart | |
| 12 | 424095 - SEAT ISOLATOR | Add To Cart | |
| 13 | 644618 - SEAT HINGE PIN | Add To Cart | |
| 14 | 253192 - HEX FLANGE WHIZ BOLT | Add To Cart | |
| 15 | 253035 - WHIZ NUT | Add To Cart | |
| 16 | 724112 - SEAT LATCH | Add To Cart | |
| 17 | 284408 - TORSION SPRING | Add To Cart | |
| 18 | 261280 - CLEVIS PIN .312 X.875 | Add To Cart | |
| 19 | 260648 - COTTER PIN | Add To Cart | |
| 20 | 604745 - 900 SEAT ASSEMBLY | Call For Details |
