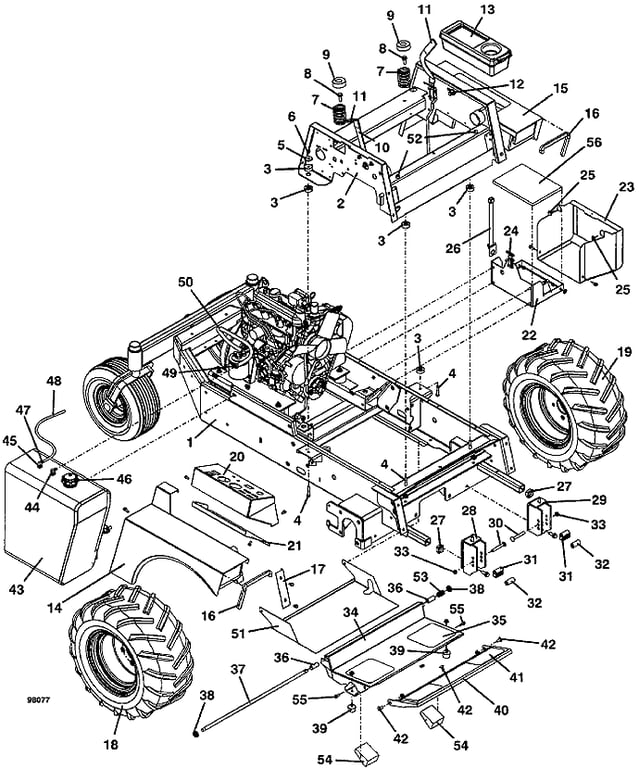

928D2 Tractor Assembly - 1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644236 - 900 8.0 LOWER CALIPER FRAME | Call For Details | |
| 2 | 643871 - G2 UPPER FRAME | Call For Details | |
| 3 | 257037 - STEP BUSHING | Add To Cart | |
| 4 | 243220 - HEX BOLT | Add To Cart | |
| 5 | 774020 - WASHER | Add To Cart | |
| 6 | 253450 - NYLON INSERT NUT | Add To Cart | |
| 7 | 283516 - COMPRESSION SPRING | Add To Cart | |
| 8 | 253203 - FLANGE WHIZ BOLT | Add To Cart | |
| 9 | 422127 - SEAT SPRING CAP | Add To Cart | |
| 10 | 603856 - THROTTLE ASSEMBLY | Add To Cart | |
| - | 323640 - CONTROL CABLE ASSEMBLY | Add To Cart | |
| - | 722009 - THROTTLE LEVER STOP | Add To Cart | |
| 11 | 422150 - HANDLE GRIP | Add To Cart | |
| 12 | 902280 - SPACER | Add To Cart | |
| - | 243330 - HEX BOLT | Add To Cart | |
| - | 257040 - WASHER | Add To Cart | |
| 13 | 422040 - TOOL BOX | Add To Cart | |
| 14 | 693210 - 700/900S right FENDER with DECAL | Add To Cart | |
| - | 163370 - 928D right TRIM DECAL | Add To Cart | |
| 15 | 693211 - 700/900S left FENDER with DECAL | Add To Cart | |
| - | 163371 - 928D left TRIM DECAL | Add To Cart | |
| 16 | 822635 - 700/900 FENDER EDGE TRIM | Add To Cart | |
| 17 | 722062 - right FENDER COVER PANEL | Add To Cart | |
| 18 | 483940 - right WHEEL AND TIRE 21 X 11 X 10 | Add To Cart | |
| - | 482472 - TURF TIRE 20 X 10 X 8 | Add To Cart | |
| - | 482474 - TURF TIRE 20 X 10 X 10 | Add To Cart | |
| - | 482484 - BAR TREAD TIRE 21 X 11 X 10 | Add To Cart | |
| - | 483420 - 5 BOLT WHEEL 10 X 7.75 | Add To Cart | |
| - | 483922 - WHEEL & TURF TIRE 20 X 10 X 8 | Call For Details | |
| - | 483924 - WHEEL & TURF TIRE 20 X 10 X 10 | Add To Cart | |
| 19 | 483941 - left WHEEL & TIRE 21 X 11 X 10 | Add To Cart | |
| - | 482472 - TURF TIRE 20 X 10 X 8 | Add To Cart | |
| - | 482474 - TURF TIRE 20 X 10 X 10 | Add To Cart | |
| - | 482484 - BAR TREAD TIRE 21 X 11 X 10 | Add To Cart | |
| - | 483420 - 5 BOLT WHEEL 10 X 7.75 | Add To Cart | |
| - | 483922 - WHEEL & TURF TIRE 20 X 10 X 8 | Call For Details | |
| 20 | 693104 - CONSOLE with DECAL for LIQUID-COOLED DIESEL | Add To Cart | |
| 21 | 721152 - 96 CONSOLE FILL PANEL | Add To Cart | |
| 22 | 603104 - BATTERY BOX ASSEMBLY with STRAP | Add To Cart | |
| 23 | 603570 - BATTERY BOX LID ASSEMBLY | Add To Cart | |
| 24 | 281301 - RUBBER DRAW LATCH | Add To Cart | |
| 25 | 424029 - RUBBER BUMPER | Add To Cart | |
| 26 | 603110 - BATTERY HOLD DOWN STRAP | Add To Cart | |
| 27 | 422065 - SQUARE PLASTIC PLUG | Add To Cart | |
| 28 | 643092 - 700 right QD DECK MOUNT | Add To Cart | |
| 29 | 643093 - 700 left QD DECK MOUNT | Add To Cart | |
| 30 | 247280 - SPECIAL CARRIAGE BOLT | Add To Cart | |
| 31 | 282575 - DECK MOUNT BUSHING | Add To Cart | |
| 32 | 282576 - DECK MOUNT FLOATING BUSHING | Add To Cart | |
| 33 | 253460 - NYLON INSERT NUT | Add To Cart | |
| 34 | 604346 - 700/900 ADJUSTABLE FOOT PLATFORM ASSEMBLY | Add To Cart | |
| 35 | 420905 - FOOT REST TREAD | Add To Cart | |
| 36 | 422615 - NYLON BEARING | Add To Cart | |
| 37 | 780673 - FOOT PLATFORM PIVOT ROD | Call For Details | |
| 38 | 253470 - NYLON INSERT NUT | Add To Cart | |
| 39 | 424052 - RUBBER BUMPER | Add To Cart | |
| 40 | 603301 - FOOT PLATFORM EXTENSION | Add To Cart | |
| 41 | 420904 - FOOT REST EXTENSION TREAD | Add To Cart | |
| 42 | 247130 - CARRIAGE BOLT | Add To Cart | |
| 43 | 693234 - 8 GALLON DIESEL FUEL TANK with DECAL | Add To Cart | |
| 44 | 101837 - FUEL TUBE | Add To Cart | |
| 45 | 101835 - FUEL TUBE | Add To Cart | |
| 46 | 141130 - CAP with FUEL LEVEL | Add To Cart | |
| 47 | 280257 - HOSE SPRING CLAMP | Add To Cart | |
| 48 | 821740 - FUEL LINE RETURN HOSE | Add To Cart | |
| 49 | 280261 - HOSE SPRING CLAMP | Add To Cart | |
| 50 | 821716 - FUEL LINE HOSE | Add To Cart | |
| 51 | 721383 - G2 TRASH SHIELD | Add To Cart | |
| 52 | 424015 - RUBBER BUMPER | Add To Cart | |
| 53 | 283312 - COMPRESSION SPRING | Add To Cart | |
| 54 | 424100 - FOOTREST ISOLATOR BLOCK | Add To Cart | |
| 55 | 243026 - HEX BOLT | Add To Cart | |
| 56 | 427275 - BATTERY TRAY PAD | Add To Cart | |
| 57 | 604302 - DECAL SET for 928D2 with SIDE CONSOLE | Add To Cart |
