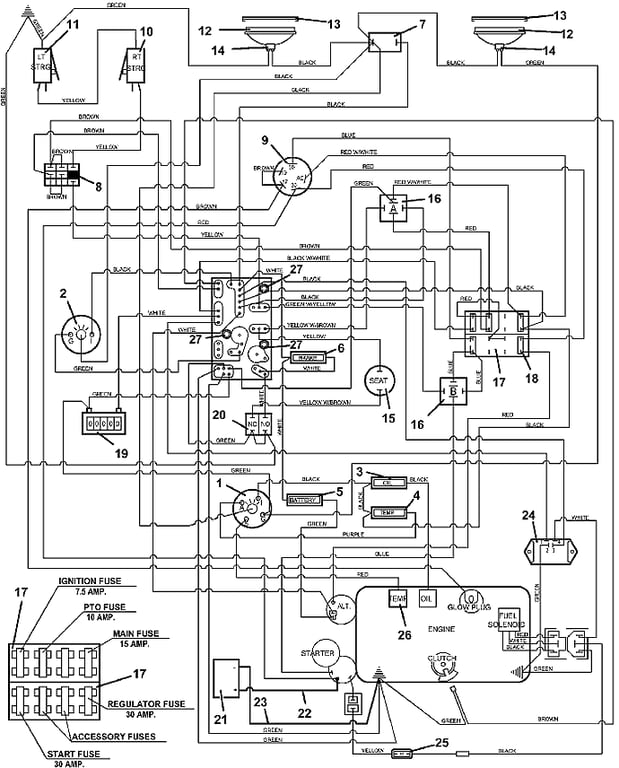

928D2 Wiring - 2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 141160 - ZONED ELECTRIC TEMPERATURE GAUGE | Add To Cart | |
| - | 182247 - GAUGE BACKLIGHT LAMP | Call For Details | |
| 2 | 141200 - VOLTMETER GAUGE | Add To Cart | |
| - | 182247 - GAUGE BACKLIGHT LAMP | Call For Details | |
| 3 | 182327 - OIL INDICATOR LIGHT | Add To Cart | |
| 4 | 182328 - TEMPERATURE INDICATOR LIGHT | Add To Cart | |
| 5 | 182325 - BATTERY INDICATOR LIGHT | Add To Cart | |
| 6 | 182326 - BRAKE INDICATOR LIGHT | Add To Cart | |
| 7 | 184179 - ROCKER SWITCH | Add To Cart | |
| 8 | 183925 - PUSH/PULL SWITCH | Add To Cart | |
| 9 | 183827 - KUBOTA SEALED KEY SWITCH | Add To Cart | |
| - | 101106 - KUBOTA DOUBLE NOTCH IGNITION KEY | Add To Cart | |
| 10 | 183860 - LEVER SWITCH | Add To Cart | |
| - | 720160 - right STEERING SWITCH MOUNT | Add To Cart | |
| 11 | 183860 - LEVER SWITCH | Add To Cart | |
| - | 720161 - left STEERING SWITCH MOUNT | Add To Cart | |
| 12 | 182250 - HALOGEN FLOOD WORKLAMP with PIGTAIL | Add To Cart | |
| - | 182245 - HALOGEN LIGHT BULB | Add To Cart | |
| 13 | 182251 - SNAP MOUNT WORKLAMP BEZEL | Add To Cart | |
| 14 | 604895 - WORKLAMP WIRE HARNESS | Call For Details | |
| 15 | 183871 - TWIST-IN SEAT SWITCH | Add To Cart | |
| 16 | 184272 - 12v DC RELAY | Add To Cart | |
| - | 184570 - TYPE 1 6mm PUSH-ON | Add To Cart | |
| - | 184581 - .250 FAST-ON TERMINAL | Add To Cart | |
| - | 184926 - 5 WAY FEMALE CONNECTOR | Add To Cart | |
| 17 | 181722 - FUSE BLOCK | Add To Cart | |
| - | 184458 - 1 WIRE CLIP | Add To Cart | |
| - | 184460 - 2 WIRE CLIP | Add To Cart | |
| - | 184472 - DOUBLE CLIP | Add To Cart | |
| 18 | 181470 - 30 amp ATC AUTO FUSE | Add To Cart | |
| - | 181465 - 15 amp ATC AUTO FUSE | Add To Cart | |
| - | 181462 - 10 amp ATC AUTO FUSE | Add To Cart | |
| - | 181460 - 7.5 amp ATC AUTO FUSE | Add To Cart | |
| 19 | 141551 - SNAP IN HOUR METER | Add To Cart | |
| 20 | 183894 - BRAKE INTERLOCK SWITCH | Add To Cart | |
| 21 | 180130 - 12 VOLT SIDEPOST BATTERY | Call For Details | |
| - | 243309 - HEX BOLT | Add To Cart | |
| 22 | 180313 - 14' RED BATTERY CABLE | Add To Cart | |
| - | 425223 - BATTERY BOOT | Add To Cart | |
| - | 425219 - BATTERY TERMINAL BOOT | Add To Cart | |
| - | 425215 - RED ALTERNATOR BOOT TERMINAL | Add To Cart | |
| 23 | 180282 - 20' BLACK BATTERY CABLE | Add To Cart | |
| 24 | 184220 - INTERLOCK MODULE SWITCH | Add To Cart | |
| 25 | 181735 - INLINE AUTO FUSE HOLDER | Add To Cart | |
| - | 181470 - 30 amp ATC AUTO FUSE | Add To Cart | |
| 26 | 141222 - TEMPERATURE SENDER | Add To Cart | |
| 27 | 423690 - PC BOARD SUPPORT SPACER | Add To Cart | |
| 28 | 604969 - 928D CONSOLE WIRING ASSEMBLY | Add To Cart | |
| 29 | 161131 - CONSOLE DECAL for WATER COOLED 700 | Add To Cart |
