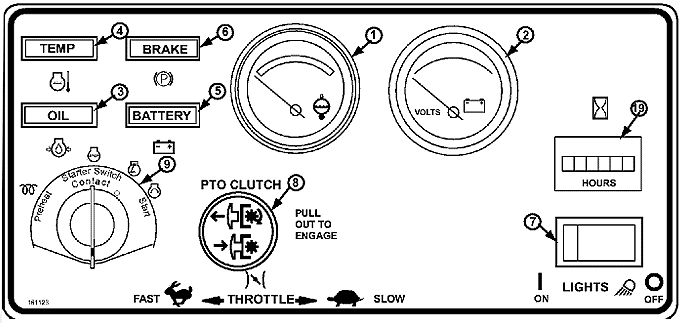

930D2 Console Diagram - 2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 141160 - Zoned Electric Temperature Gauge | Add To Cart | |
| - | 182247 - Gauge Back Light Lamp | Call For Details | |
| 2 | 141200 - Voltmeter Gauge | Add To Cart | |
| - | 182247 - Gauge Back Light Lamp | Call For Details | |
| 3 | 182327 - Oil Indicator Light | Add To Cart | |
| 4 | 182328 - Temperature Indicator Light | Add To Cart | |
| 5 | 182325 - Battery Indicator Light | Add To Cart | |
| 6 | 182326 - Brake Indicator Light | Add To Cart | |
| 7 | 184179 - Rocker Switch | Add To Cart | |
| 8 | 183925 - Push/Pull Switch | Add To Cart | |
| 9 | 183827 - Sealed Key Switch - Kubota | Add To Cart | |
| - | 101106 - Double Notch Ignition Key - Kubota | Add To Cart | |
| 19 | 141551 - Snap-In Hour Meter | Add To Cart | |
| 20 | 161123 - Console Decal | Add To Cart |
