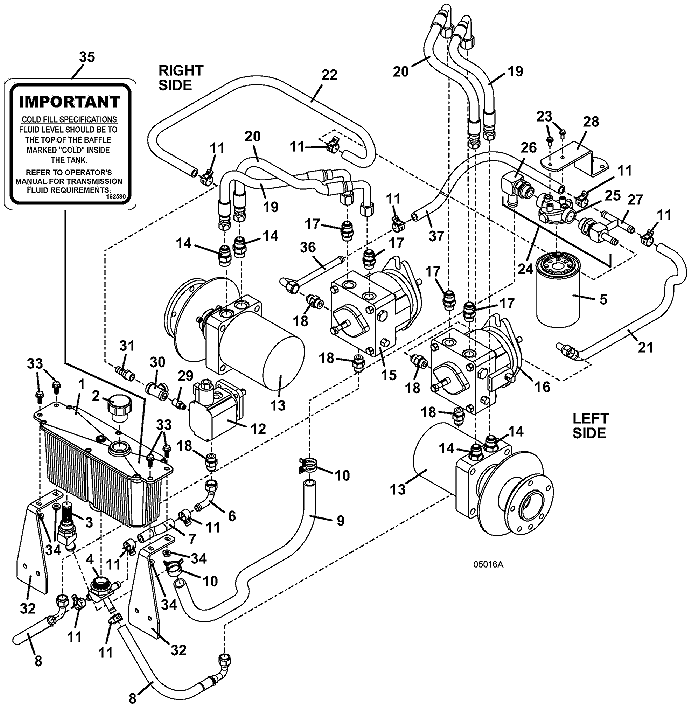

930D2 Reservoir & Hose Assembly - 2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 101692 - G2 Oil Tank Assembly with Strainer | Add To Cart | |
| 2 | 100760 - Fill Cap | Add To Cart | |
| - | 420339 - Oil Reservoir Gasket Cap | Add To Cart | |
| 3 | 366571 - Fitting w/Diffuser | Call For Details | |
| 4 | 366570 - Triple Barb Fitting | Call For Details | |
| 5 | 100860 - Transmission Oil Filter | Add To Cart | |
| 6 | 363857 - Fitting | Call For Details | |
| 7 | 821781 - Hydraulic Hose | Add To Cart | |
| 8 | 424349 - Hose Assembly | Add To Cart | |
| 9 | 821804 - .75 Hydraulic Hose | Add To Cart | |
| 10 | 280268 - Spring Hose Clamp | Add To Cart | |
| 11 | 280266 - Spring Hose Clamp | Add To Cart | |
| 12 | 290074 - Hydraulic Pump with Solenoid Valve | Add To Cart | |
| - | 125166 - Seal | Add To Cart | |
| 13 | 603604 - Wheel Motor with Hub | Add To Cart | |
| 14 | 360069 - Adapter Fitting | Add To Cart | |
| - | 126529 - O-Ring | Add To Cart | |
| - | 126537 - O-Ring | Add To Cart | |
| 15 | 391453 - Hydro Pump - Right | Add To Cart | |
| 16 | 391452 - Hydro Pump - Left | Add To Cart | |
| 17 | 360064 - Adapter Fitting | Add To Cart | |
| - | 126529 - O-Ring | Add To Cart | |
| - | 126535 - O-Ring | Add To Cart | |
| 18 | 363832 - Steel O-Ring Boss Fitting | Add To Cart | |
| - | 126527 - O-Ring | Add To Cart | |
| - | 126535 - O-Ring | Add To Cart | |
| 19 | 424378 - Hose Assembly | Add To Cart | |
| 20 | 424379 - Hose Assembly | Add To Cart | |
| 21 | 424344 - Hose Assembly | Add To Cart | |
| 22 | 821806 - .5 Hydraulic Hose | Add To Cart | |
| 23 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 24 | 101021 - Filter Base Assembly | Call For Details | |
| 25 | 101027 - Filter Base | Add To Cart | |
| 26 | 360076 - 12 Bead O-Ring Adapter | Call For Details | |
| 27 | 360075 - 3 Bead O-Ring Adapter | Call For Details | |
| 28 | 732614 - 928DS Oil Filter Mount | Call For Details | |
| 29 | 360040 - O-Ring Adapter | Call For Details | |
| 30 | 366810 - Tee | Call For Details | |
| 31 | 360259 - 8RLA-4MP Brass Hose Insert | Call For Details | |
| 32 | 755128 - Aluminum Oil Tank Mount - Right | Add To Cart | |
| 33 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 34 | 253035 - Whiz Nut | Add To Cart | |
| 35 | 162580 - Oil Specification Decal | Add To Cart | |
| 36 | 424602 - Tube Assembly | Add To Cart | |
| 37 | 821799 - Hydraulic Hose | Add To Cart |
