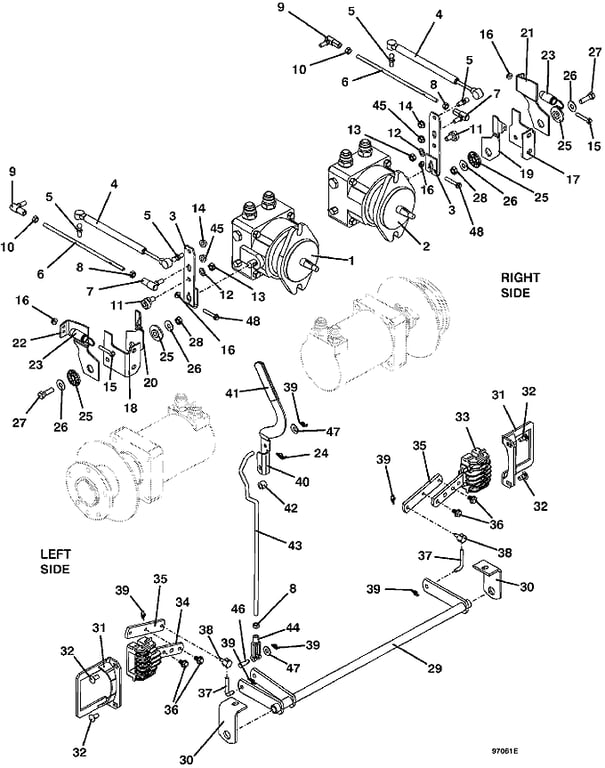

932G2 Drive Linkage Assembly - 2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 391452 - Hydro Pump - left | Add To Cart | |
| - | 125165 - Seal | Add To Cart | |
| - | 130020 - Square Charge Cover Seal Ring | Add To Cart | |
| 2 | 391453 - Hydro Pump - right | Add To Cart | |
| - | 125165 - Seal | Add To Cart | |
| - | 130020 - Square Charge Cover Seal Ring | Add To Cart | |
| 3 | 725338 - Pump Control Arm - right | Add To Cart | |
| 4 | 285031 - Damper | Add To Cart | |
| 5 | 265680 - Ball Stud | Add To Cart | |
| 6 | 780164 - Steering Linkage Pump Rod | Add To Cart | |
| 7 | 265616 - Ball Joint - Leftthand Thread | Add To Cart | |
| 8 | 254444 - Nut | Add To Cart | |
| 9 | 265615 - Ball Joint - Righthand Thread | Add To Cart | |
| 10 | 254441 - Nut | Add To Cart | |
| 11 | 603726 - Eccentric Roller Assembly | Add To Cart | |
| 12 | 257410 - Washer | Add To Cart | |
| 13 | 254450 - Nut .375-16 | Add To Cart | |
| 14 | 253035 - Whiz Nut | Add To Cart | |
| 15 | 243035 - Hex Bolt | Add To Cart | |
| 16 | 253025 - Whiz Nut | Add To Cart | |
| 17 | 729225 - 21L Neutral Return Mount - right | Add To Cart | |
| 18 | 729226 - 21 Neutral Return Mount - left | Call For Details | |
| 19 | 729138 - Neutral Return Arm -right | Add To Cart | |
| 20 | 729139 - Neutral Return Arm - left | Add To Cart | |
| 21 | 729136 - Neutral Return Front Arm - right | Add To Cart | |
| 22 | 729137 - Neutral Return Front Arm - left | Add To Cart | |
| 23 | 283823 - Extension Spring | Add To Cart | |
| 24 | 260608 - Cotter Ring | Add To Cart | |
| 25 | 822304 - Neutral Return Pivot Bearing | Add To Cart | |
| 26 | 257040 - Washer | Add To Cart | |
| 27 | 243335 - Hex Bolt | Add To Cart | |
| 28 | 253890 - Lock Nut | Add To Cart | |
| 29 | 644521 - 900DG2 Linkage Rod | Add To Cart | |
| 30 | 732610 - Brake Pivot Mount Bracket | Add To Cart | |
| 31 | 644121 - M1/G2 Caliper Mount | Add To Cart | |
| 32 | 247130 - Carriage Bolt | Add To Cart | |
| 33 | 481100 - Clockwise Brake Caliper Assembly | Add To Cart | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| 34 | 481101 - Counterclockwise Brake Caliper Assembly | Add To Cart | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| 35 | 782874 - Rotor Brake Linkage | Add To Cart | |
| 36 | 253189 - Whiz Bolt | Add To Cart | |
| 37 | 730155 - 928 Brake Linkage Rod | Add To Cart | |
| 38 | 880924 - Brake Linkage Pin | Add To Cart | |
| 39 | 260606 - Cotter Ring | Add To Cart | |
| 40 | 754045 - split Drive Brake Lever | Call For Details | |
| 41 | 422150 - Handle Grip | Add To Cart | |
| 42 | 423705 - Brake Lever Spacer | Add To Cart | |
| 43 | 730361 - 700 Brake Linkage Rod | Add To Cart | |
| 44 | 265537 - Clevis Yoke | Add To Cart | |
| 45 | 253038 - Whiz Nut | Add To Cart | |
| 46 | 261284 - Clevis Pin | Add To Cart | |
| 47 | 257030 - Washer | Add To Cart | |
| 48 | 253182 - Hex Whiz Bolt | Add To Cart |
