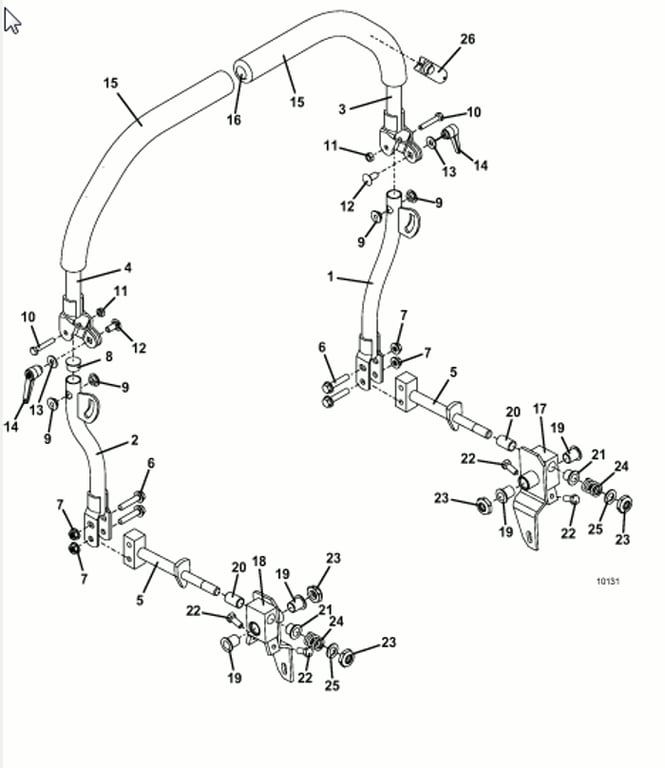

932G2 Steering Assembly - 2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 824579 - Lower Right Folding Steering Lever with Lift | Add To Cart | |
| 2 | 645749 - Lower Left Folding Steering Lever W/A | Add To Cart | |
| 3 | 824577 - Std Upper Right Hyd Adjustable Folding Steering Lever | Add To Cart | |
| 4 | 645745 - series 700/900 Upper Left Adjustable Steering Lever | Add To Cart | |
| 5 | 643926 - Adjustable Steering Lever Mount | Add To Cart | |
| 6 | 253195 - Hex Flange Whiz Bolt | Add To Cart | |
| 7 | 253035 - Whiz Nut | Add To Cart | |
| 8 | 422063 - Nylon Plug | Add To Cart | |
| 9 | 422508 - Step Bushing | Add To Cart | |
| 10 | 243035 - Hex Bolt | Add To Cart | |
| 11 | 253850 - Lock Nut | Add To Cart | |
| 12 | 247130 - Carriage Bolt | Add To Cart | |
| 13 | 257019 - Flat Washer | Add To Cart | |
| 14 | 254438 - Adjustable Lever Nut | Call For Details | |
| 15 | 422179 - Handle Grip | Call For Details | |
| 16 | 422095 - .75 ID Vinyl Cap | Call For Details | |
| 17 | 604771 - Steering Pivot with Stop & Bearings - right | Add To Cart | |
| 18 | 604772 - Steering Pivot with Stop & Bearings - left | Add To Cart | |
| 19 | 422559 - Sleeve Bearing w/Flange | Add To Cart | |
| 20 | 422557 - Sleeve Bearing | Add To Cart | |
| 21 | 422556 - Sleeve Bearing w/Flange | Add To Cart | |
| 22 | 243197 - Hex Bolt | Add To Cart | |
| 23 | 253470 - Nylon Insert Nut | Add To Cart | |
| 24 | 283324 - Compression Spring | Add To Cart | |
| 25 | 257063 - Washer | Add To Cart | |
| 26 | 604799 - Hydraulic Lift Switch/Mount Assembly | Add To Cart | |
| - | 183943 - Black Button Cap | Add To Cart |
