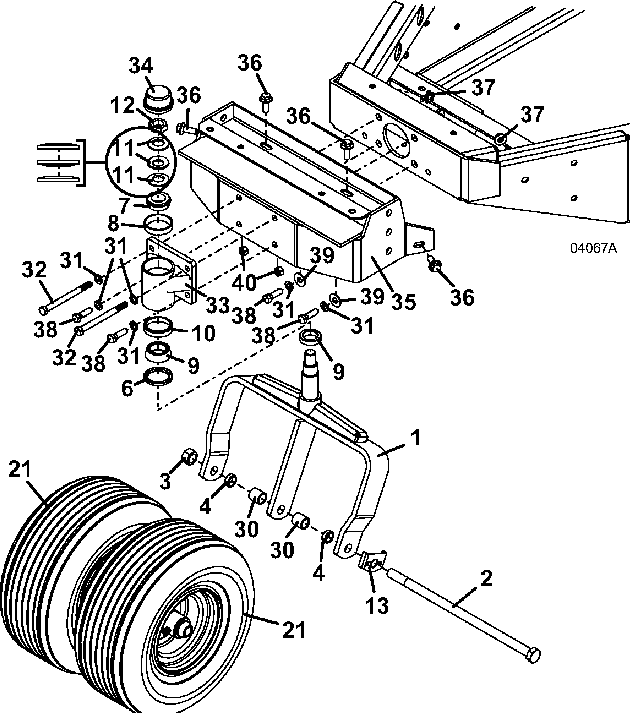

932G2 Tail Wheel Options, diagram 2 - 2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604366 - Dual Fork & Lock Nut Assembly | Add To Cart | |
| 2 | 243922 - Hex Bolt .625-11X14 | Add To Cart | |
| 3 | 253970 - Lock Nut .625-11 | Add To Cart | |
| 4 | 902422 - Axle Spacer | Add To Cart | |
| 6 | 125855 - Seal | Add To Cart | |
| 7 | 122522 - Taper Bearing | Add To Cart | |
| 8 | 123522 - Bearing Cup | Add To Cart | |
| 9 | 122523 - Taper Bearing | Add To Cart | |
| 10 | 123521 - Bearing Cup | Add To Cart | |
| 11 | 257320 - Spring Washer | Add To Cart | |
| 12 | 254505 - Nylon-Top Jam Lock Nut | Add To Cart | |
| 13 | 723008 - Fork Bolt Lock | Add To Cart | |
| 21 | 603975 - 13 x 6.5 x 6 Wheel Assembly with Bearings | Add To Cart | |
| - | 482355 - 13 x 6.5 x 6 Ribbed Tire | Add To Cart | |
| - | 483306 - 6 x 4.5 Tan Wheel without Bearings | Add To Cart | |
| 30 | 902425 - Axle Spacer | Add To Cart | |
| 31 | 257412 - Lock Washer | Add To Cart | |
| 32 | 243393 - Hex Bolt | Call For Details | |
| 33 | 604595 - Dual Fork Pivot Housing Assembly | Add To Cart | |
| 34 | 481432 - Dust Cap | Add To Cart | |
| 35 | 644302 - Dual Fork Extension Mount | Call For Details | |
| 36 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 37 | 253043 - Whiz Nut | Add To Cart | |
| 38 | 243334 - GR 8 Hex Bolt | Add To Cart | |
| 39 | 257040 - Washer | Add To Cart | |
| 40 | 254450 - Nut | Add To Cart |
