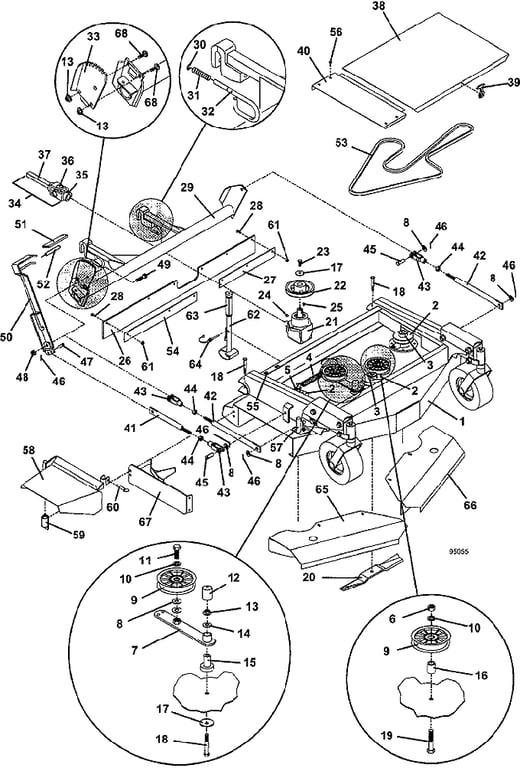

9344 Deck Mower Assembly - 1996
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643974 - 9344 Deck Weldment | Call For Details | |
| 2 | 414675 - Sheave | Add To Cart | |
| 3 | 282630 - Spacer | Add To Cart | |
| 4 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 5 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 6 | 254470 - Nut | Add To Cart | |
| 7 | 824502 - Idler Arm with Bearing & Pedestal | Add To Cart | |
| 8 | 257062 - Washer | Add To Cart | |
| 9 | 393225 - Idler | Add To Cart | |
| 10 | 257432 - Lock Washer | Add To Cart | |
| 11 | 243565 - Hex Bolt | Add To Cart | |
| 12 | 422098 - Vinyl Cap | Add To Cart | |
| 13 | 253043 - Whiz Nut | Add To Cart | |
| 14 | 257040 - Washer | Add To Cart | |
| 15 | 121650 - Bearing Pedestal | Add To Cart | |
| 16 | 902325 - Idler Spacer | Add To Cart | |
| 17 | 257041 - Cupped Washer | Add To Cart | |
| 18 | 243365 - Hex Bolt | Add To Cart | |
| 19 | 243600 - Hex Bolt | Add To Cart | |
| 20 | 320231 - 15 Inch Medium Lift Blade | Call For Details | |
| - | 320232 - 15 Inch High Lift Blade | Call For Details | |
| - | 320233 - 15 Inch Contour Blade | Call For Details | |
| 21 | 390024 - Counter Clockwise Right Angle Gearbox | Add To Cart | |
| 22 | 415876 - Sheave | Add To Cart | |
| 23 | 243331 - Hex Bolt | Add To Cart | |
| 24 | 281833 - Woodruff Key | Add To Cart | |
| 25 | 281828 - Woodruff Key | Add To Cart | |
| 26 | 424191 - 9344 Deck Flap | Add To Cart | |
| 27 | 774249 - Rubber Deflector Strap | Add To Cart | |
| 28 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 29 | 603551 - 44 Quick Disconnect Lift Arm | Call For Details | |
| 30 | 263490 - External Retainer | Add To Cart | |
| 31 | 283285 - Compression Spring | Add To Cart | |
| 32 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 33 | 604520 - Lever Mount with Decal | Add To Cart | |
| 34 | 398523 - Half Shaft Assembly | Add To Cart | |
| 35 | 401010 - Yoke | Add To Cart | |
| 36 | 121010 - Cross & Bearing | Add To Cart | |
| 37 | 402605 - Yoke & Shaft | Add To Cart | |
| 38 | 603769 - Belt Shield | Call For Details | |
| 39 | 281301 - Rubber Draw Latch | Add To Cart | |
| 40 | 722308 - Right Belt Shield | Add To Cart | |
| 41 | 603562 - Lift Lever Linkage | Add To Cart | |
| 42 | 603563 - 44 Deck Linkage Arm | Add To Cart | |
| 43 | 265565 - Clevis Yoke | Add To Cart | |
| 44 | 254493 - Nut | Add To Cart | |
| 45 | 261426 - Clevis Pin | Add To Cart | |
| 46 | 260650 - Cotter Pin | Add To Cart | |
| 47 | 261346 - Clevis Pin | Add To Cart | |
| 48 | 253930 - Lock Nut | Add To Cart | |
| 49 | 243580 - Hex Bolt | Add To Cart | |
| 50 | 643529 - Deck Lift Lever | Add To Cart | |
| 51 | 422155 - Handle Grip | Add To Cart | |
| 52 | 422158 - Handle Grip | Add To Cart | |
| 53 | 383010 - Belt | Add To Cart | |
| 54 | 782571 - 9544 Right Defector Strap | Call For Details | |
| 55 | 254431 - Speed Nut | Add To Cart | |
| 56 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 57 | 643235 - Clevis Shaft | Add To Cart | |
| 58 | 643747 - 90 Series Discharge Shield | Add To Cart | |
| 59 | 643016 - 9344 Discharge Shield Mount | Call For Details | |
| 60 | 260400 - Hitch Pin | Add To Cart | |
| 61 | 253025 - Whiz Nut | Add To Cart | |
| 62 | 603808 - Deck Stand | Add To Cart | |
| 63 | 422175 - Handle Grip | Add To Cart | |
| 64 | 261624 - Linch Pin | Add To Cart | |
| 65 | 643168 - 9344 Right Front Mulching Shroud | Call For Details | |
| 66 | 643169 - 9344 left Front Mulching Shroud | Call For Details | |
| 67 | 643686 - 9344 Discharge Filler | Call For Details | |
| 68 | 247253 - Carriage Bolt | Add To Cart | |
| 69 | 603280 - Mower Safety Decal Set | Add To Cart |
