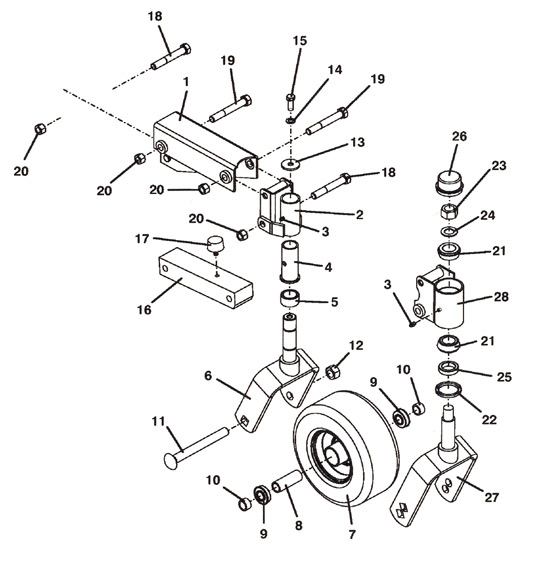

9544 44-Inch Deck Wheel Lift Assembly - 2000
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643500 - Lift Channel - Upper Right | Add To Cart | |
| - | 643501 - Lift Channel - Upper Left | Add To Cart | |
| 2 | 603351 - Fork Mount w/Bearing - Right | Add To Cart | |
| - | 603352 - Fork Mount w/Bearing - Left | Add To Cart | |
| 3 | 280776 - Grease Fitting | Add To Cart | |
| 4 | 833260 - Flanged Bearing | Add To Cart | |
| 5 | 282629 - Spacer | Add To Cart | |
| 6 | 604350 - Deck Fork w/O Rings | Add To Cart | |
| - | 425514 - O Ring | Add To Cart | |
| 7 | 603971 - Wheel & Tire - Flat Proof w/Bearings & Spacer | Add To Cart | |
| 8 | 902473 - Wheel Bearing Spacer | Add To Cart | |
| 9 | 120050 - Ball Bearing | Add To Cart | |
| 10 | 902415 - Axle Spacer | Add To Cart | |
| 11 | 247715 - Carriage Bolt | Add To Cart | |
| 12 | 253970 - Lock Nut | Add To Cart | |
| 13 | 774014 - Washer | Add To Cart | |
| 14 | 257412 - Lock Washer | Add To Cart | |
| 15 | 243331 - Bolt | Add To Cart | |
| 16 | 822312 - Stabilizer - Deck Lift | Add To Cart | |
| 17 | 424052 - Rubber Bumper | Add To Cart | |
| 18 | 243609 - Bolt | Add To Cart | |
| 19 | 243614 - Bolt | Add To Cart | |
| 20 | 253930 - Lock Nut | Add To Cart | |
| 21 | 122522 - Bearing - Tapered (HD Option) | Add To Cart | |
| 22 | 125855 - Seal (HD Option) | Add To Cart | |
| 23 | 253992 - Lock Nut (HD Option) | Add To Cart | |
| 24 | 247091 - Washer (HD Option) | Call For Details | |
| 25 | 282615 - Spacer (HD Option) | Add To Cart | |
| 26 | 481432 - Dust Cap (HD Option) | Add To Cart | |
| 27 | 644221 - Fork (HD Option) | Add To Cart | |
| 28 | 824982 - Fork Housing - Right (HD Option) | Add To Cart |
