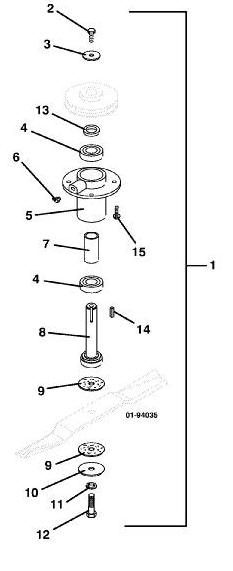

9548 48-Inch Deck Blade Spindle Assembly - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623784 - SPINDLE ASSY - BLADE | Add To Cart | |
| 623783 - SPINDLE ASSY - 9561 LT/CTR | Add To Cart | ||
| 2 | 243331 - HEX BOLT | Add To Cart | |
| 3 | 257041 - WASHER - CUPPED | Add To Cart | |
| 4 | 110082 - BEARING - BALL SINGLE SEAL | Add To Cart | |
| 5 | 320526 - SPINDLE HOUSING GREASE | Add To Cart | |
| 6 | 280734 - SPINDLE HOUSING GREASE | Add To Cart | |
| 7 | 903640 - SPACER - BEARING TUBE | Add To Cart | |
| 8 | 604770 - SPINDLE ASSEMBLY - SHAFT | Add To Cart | |
| 604768 - SPINDLE SHAFT ASSY | Add To Cart | ||
| 9 | 421200 - WASHER - FIBER | Add To Cart | |
| 10 | 257061 - WASHER | Add To Cart | |
| 11 | 257432 - WASHER - LOCK | Add To Cart | |
| 12 | 243581 - HEX BOLT | Add To Cart | |
| 13 | 282607 - SPACER | Add To Cart | |
| 14 | 281580 - KEY SQUARE | Add To Cart | |
| 281583 - KEY SQUARE | Add To Cart | ||
| 15 | 253192 - BOLT WHIZ HEX FLANGE | Add To Cart |
