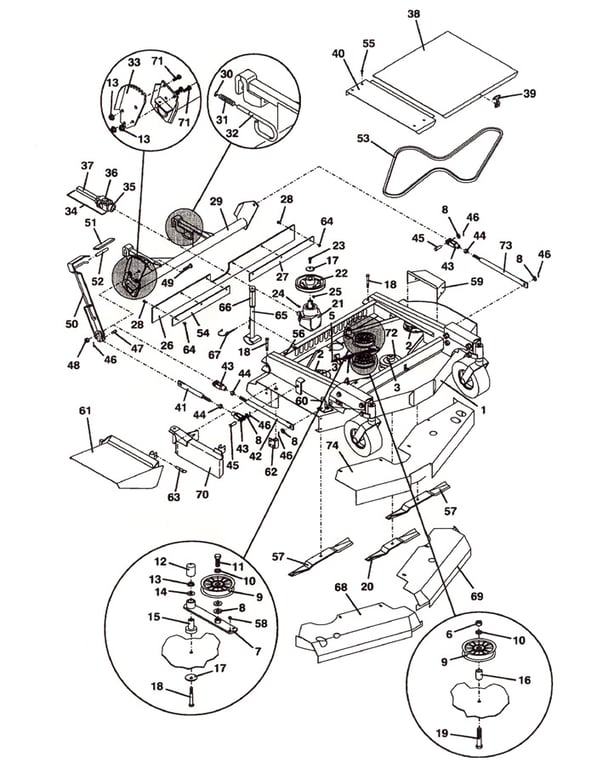

9548 48-Inch Deck Mower Assembly - 2000
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603286 - Deck Weldment | Add To Cart | |
| 2 | 414696 - Sheave | Add To Cart | |
| 3 | 282630 - Spacer | Add To Cart | |
| 4 | 283820 - Extension Spring w/Swivel | Add To Cart | |
| 5 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 6 | 254470 - Nut | Add To Cart | |
| 7 | 824502 - Idler Arm w/Bearing (includes items 15 & 72) | Add To Cart | |
| 8 | 257062 - Washer | Add To Cart | |
| 9 | 393225 - Idler | Add To Cart | |
| 10 | 257432 - Lock Washer | Add To Cart | |
| 11 | 243565 - Bolt | Add To Cart | |
| 12 | 422098 - Vinyl Cap | Add To Cart | |
| 13 | 253043 - Whiz Nut | Add To Cart | |
| 14 | 257040 - Flat Washer | Add To Cart | |
| 15 | 121650 - Bearing Pedestal | Add To Cart | |
| 16 | 902325 - Idler Spacer | Add To Cart | |
| 17 | 257041 - Cupped Washer | Add To Cart | |
| 18 | 243365 - Bolt | Add To Cart | |
| 19 | 243600 - Bolt | Add To Cart | |
| 20 | 320231 - Blade 15 Inch - Medium Lift (Uses 1) | Call For Details | |
| - | 320234 - Blade 15 Inch - Notched High Lift (Uses 1) | Call For Details | |
| - | 320233 - Blade 15 Inch - Contour (Uses 1) | Call For Details | |
| 21 | 390024 - Gear Box Right Angle CCW | Add To Cart | |
| 22 | 415886 - Sheave | Add To Cart | |
| 23 | 243331 - Bolt | Add To Cart | |
| 24 | 281833 - Woodruff Key | Add To Cart | |
| 25 | 281828 - Woodruff Key | Add To Cart | |
| 26 | 424192 - Deck Flap | Add To Cart | |
| 27 | 782569 - Deflector Strap - Left | Call For Details | |
| 28 | 253177 - Whiz Bolt | Add To Cart | |
| 29 | 603576 - Lift Arm | Call For Details | |
| 30 | 263490 - External Retainer | Add To Cart | |
| 31 | 283285 - Spring | Add To Cart | |
| 32 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 33 | 726100 - Upper Lever Mount | Add To Cart | |
| 34 | 398525 - Half Shaft Assembly | Add To Cart | |
| 35 | 401010 - Yoke | Add To Cart | |
| 36 | 121010 - Cross & Bearing | Add To Cart | |
| 37 | 402605 - Yoke & Shaft | Add To Cart | |
| 38 | 604722 - Belt Shield Assembly | Call For Details | |
| 39 | 281301 - Rubber Draw Latch | Add To Cart | |
| 40 | 722281 - Belt Shield - Right | Add To Cart | |
| 41 | 603562 - Linkage Assembly - Lift Lever (Includes 43&44) | Add To Cart | |
| 42 | 603572 - Linkage Arm - Right (Includes 43&44) | Add To Cart | |
| 43 | 265565 - Clevis Yoke | Add To Cart | |
| 44 | 254493 - Jam Nut | Add To Cart | |
| 45 | 261426 - Clevis Pin | Add To Cart | |
| 46 | 260650 - Cotter Pin | Add To Cart | |
| 47 | 261346 - Clevis Pin | Add To Cart | |
| 48 | 253930 - Lock Nut | Add To Cart | |
| 49 | 243580 - Bolt | Add To Cart | |
| 50 | 643529 - Deck Lift Lever | Add To Cart | |
| 51 | 422155 - Handle Grip | Add To Cart | |
| 52 | 422158 - Handle Grip | Add To Cart | |
| 53 | 383008 - Belt | Add To Cart | |
| 54 | 782591 - Defector Strap - Right | Call For Details | |
| 55 | 253173 - Whiz Bolt | Add To Cart | |
| 56 | 254431 - Speed Nut | Add To Cart | |
| 57 | 320236 - Blade 18 Inch - Medium Lift (Uses 2) | Call For Details | |
| - | 320239 - Blade 18 Inch - Notched High Lift (Uses 2) | Call For Details | |
| - | 320238 - Blade 18 Inch - Contour (Uses 2) | Call For Details | |
| 58 | 422520 - Nylon Bearing | Add To Cart | |
| 59 | 722249 - Belt Shield - Left | Add To Cart | |
| 60 | 643235 - Clevis Shaft | Add To Cart | |
| 61 | 644751 - Discharge Shield | Add To Cart | |
| 62 | 643632 - Pivot Mount | Add To Cart | |
| 63 | 260400 - Hitch Pin | Add To Cart | |
| 64 | 253025 - Whiz Nut | Add To Cart | |
| 65 | 603808 - Deck Stand | Add To Cart | |
| 66 | 422175 - Handle Grip | Add To Cart | |
| 67 | 261624 - Linchpin | Add To Cart | |
| 68 | 643194 - Front Shroud - Right - Optional | Add To Cart | |
| 69 | 643195 - Front Shroud - Left- Optional | Add To Cart | |
| 70 | 643691 - Discharge Restriction Plate - Optional | Add To Cart | |
| 71 | 243330 - Bolt | Add To Cart | |
| 72 | 414865 - Sheave | Call For Details | |
| 73 | 603573 - Linkage Arm - Left (includes 43&44) | Call For Details | |
| 74 | 644192 - Air Foil | Add To Cart | |
| - | 603280 - (Item Not Pictured) Decal Set - Mower Safety | Add To Cart |
