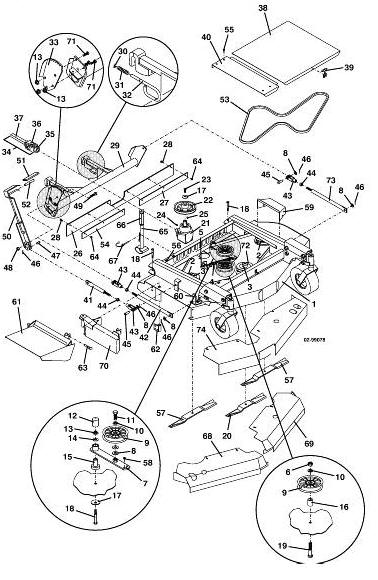

9548 48-Inch Deck Mower Assembly - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603286 - DECK WELDMENT W/BELT COVER9548 | Add To Cart | |
| 2 | 414696 - SHEAVE | Add To Cart | |
| 3 | 282630 - SPACER | Add To Cart | |
| 4 | 283820 - SPRING - EXTENSION W/SWIVEL | Add To Cart | |
| 5 | 730391 - J BOLT - IDLER ADUSTMENT | Add To Cart | |
| 6 | 254470 - NUT | Add To Cart | |
| 7 | 824502 - IDLER ARM W/BERARING & PEDESTAL | Add To Cart | |
| 8 | 257062 - WASHER | Add To Cart | |
| 9 | 393225 - IDLER | Add To Cart | |
| 10 | 257432 - WASHER - LOCK | Add To Cart | |
| 11 | 243565 - HEX BOLT | Add To Cart | |
| 12 | 422098 - CAP VINYL 1.125 ID | Add To Cart | |
| 13 | 253043 - NUT WHIZ | Add To Cart | |
| 14 | 257040 - WASHER | Add To Cart | |
| 15 | 121650 - BEARING PEDESTAL | Add To Cart | |
| 16 | 902325 - SPACER - IDLER | Add To Cart | |
| 17 | 257041 - WASEHR - CUPPED | Add To Cart | |
| 18 | 243365 - HEX BOLT | Add To Cart | |
| 19 | 243600 - HEX BOLT | Add To Cart | |
| 20 | 320231 - BLADE -15 MED LIFT | Call For Details | |
| - | 320234 - BLADE -15 HI-LIFT NOTCH | Call For Details | |
| - | 320233 - BLADE -15 CONTOUR | Call For Details | |
| 21 | 390024 - GEARBOX RT ANGLE CCQ | Add To Cart | |
| 22 | 415886 - SHEAVE | Add To Cart | |
| 23 | 243331 - HEX BOLT | Add To Cart | |
| 24 | 281833 - KEY WOODRUFF | Add To Cart | |
| 25 | 281828 - KEY WOODRUFF | Add To Cart | |
| 26 | 424192 - FLAP DECK - 9348 | Add To Cart | |
| 27 | 782569 - STRAP - DEFLECTOR 9348 LT | Call For Details | |
| 28 | 253177 - BOLT WHIZ TRUSS | Add To Cart | |
| 29 | 603576 - LIFT ARM ASSY - 9348 | Call For Details | |
| 30 | 263490 - RETAINER EXTERNAL | Add To Cart | |
| 31 | 283285 - SPRING - COMPRESSION | Add To Cart | |
| 32 | 730433 - LATCH PIN - DECK MOUNT | Add To Cart | |
| 33 | 726100 - LEVER MOUNT - UPPPER | Add To Cart | |
| 34 | 398525 - UN HALF SHAFT | Add To Cart | |
| 35 | 401010 - YOKE | Add To Cart | |
| 36 | 121010 - CROSS & BEARING | Add To Cart | |
| 37 | 402605 - YOKE & SHAFT | Add To Cart | |
| 38 | 604722 - SHIELD ASSY - 9548 W/SLOTS | Call For Details | |
| 39 | 281301 - LATCH RUBBER DRAW | Add To Cart | |
| 40 | 722281 - SHIELD - BELT RT 9548/52 | Add To Cart | |
| 41 | 603562 - LINKAGE - LIFT LEVER | Add To Cart | |
| 42 | 603572 - LINKAGE ASSY - 9548/52RT | Add To Cart | |
| 43 | 265565 - YOKE CLEVIS | Add To Cart | |
| 44 | 254493 - NUT | Add To Cart | |
| 45 | 261426 - CLEVIS PIN | Add To Cart | |
| 46 | 260650 - COTTER PIN | Add To Cart | |
| 47 | 261346 - CLEVIS PIN | Add To Cart | |
| 48 | 253930 - NUT LOCK | Add To Cart | |
| 49 | 243580 - HEX BOLT | Add To Cart | |
| 50 | 643529 - LEVER - DECK LIFT | Add To Cart | |
| 51 | 422155 - GRIP HANDLE | Add To Cart | |
| 52 | 422158 - GRIP HANDLE | Add To Cart | |
| 53 | 383008 - BELT | Add To Cart | |
| 54 | 774219 - STRAP - DEFLECTOR RT | Call For Details | |
| 55 | 253173 - BOLT WHIZ HEX | Add To Cart | |
| 56 | 254431 - NUT | Add To Cart | |
| 57 | 320236 - BLADE -18 MED LIFT | Call For Details | |
| - | 320239 - BLADE - 18 HI-LIFT NOTCH | Call For Details | |
| - | 320238 - BLADE - 18 CONTOUR | Call For Details | |
| 58 | 422520 - NYLON BEARING | Add To Cart | |
| 59 | 722249 - SHIELD - BELT LT | Add To Cart | |
| 60 | 643235 - SHAFT - CLEVIS | Add To Cart | |
| 61 | 644751 - SHIELD - DISCHARGE 95S | Add To Cart | |
| 62 | 643632 - MOUNT - PIVOT VAC HOUSING | Add To Cart | |
| 63 | 260400 - HITCH PIN | Add To Cart | |
| 64 | 253025 - NUT WHIZ | Add To Cart | |
| 65 | 603808 - DECK STAND | Add To Cart | |
| 66 | 422175 - GRIP HANDLE | Add To Cart | |
| 67 | 261624 - LINCH PIN | Add To Cart | |
| 68 | 643194 - FRONT SHROUD - 9548 RT | Add To Cart | |
| 69 | 643195 - FRONT SHROUD - 9548 LT | Add To Cart | |
| 70 | 643691 - DISCHARGE FILLER | Add To Cart | |
| 71 | 24330 - HEX BOLT | Call For Details | |
| 72 | 414685 - SHEAVE | Add To Cart | |
| 73 | 603573 - LINKAGE ASSY - 9548/52 LT | Call For Details | |
| 74 | 644192 - OIR FOIL - STRAIGHT 48 | Add To Cart | |
| 75 | 603280 - DECAL SET - MOWER SAFETY | Add To Cart |
