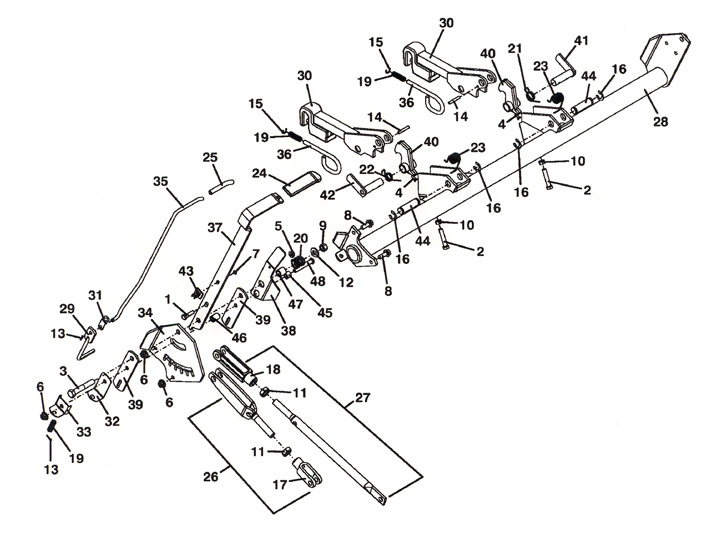

9652 52 Inch Deck - Year Model: 2002
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 243210 - Bolt | Add To Cart | |
| 2 | 243347 - Bolt | Add To Cart | |
| 3 | 243600 - Bolt | Add To Cart | |
| 4 | 250169 - Screw | Add To Cart | |
| 5 | 253035 - Nut | Add To Cart | |
| 6 | 253043 - Nut | Add To Cart | |
| 7 | 252041 - Screw | Add To Cart | |
| 8 | 253203 - Bolt | Add To Cart | |
| 9 | 253930 - Lock Nut | Add To Cart | |
| 10 | 254450 - Nut | Add To Cart | |
| 11 | 254493 - Nut | Add To Cart | |
| 12 | 257062 - Washer | Add To Cart | |
| 13 | 260624 - Cotter Pin | Add To Cart | |
| 14 | 261016 - Roll Pin | Add To Cart | |
| 15 | 263490 - Retainer | Add To Cart | |
| 16 | 263529 - Retainer | Add To Cart | |
| 17 | 265565 - Clevis Yoke | Add To Cart | |
| 18 | 265566 - Clevis Yoke | Call For Details | |
| 19 | 283285 - Compression Spring | Add To Cart | |
| 20 | 283332 - Compression Spring | Add To Cart | |
| 21 | 284410 - Torsion Spring - Left | Add To Cart | |
| 22 | 284411 - Torsion Spring - Right | Add To Cart | |
| 23 | 284413 - Spring | Add To Cart | |
| 24 | 422155 - Handle Grip | Add To Cart | |
| 25 | 422158 - Handle Grip | Add To Cart | |
| 26 | 603042 - Arm | Add To Cart | |
| 27 | 603574 - Linkage Arm - Right | Call For Details | |
| 28 | 644485 - Lift Arm | Call For Details | |
| 29 | 644523 - Lift Lever | Add To Cart | |
| 30 | 603589 - Mount Arm Assembly | Add To Cart | |
| 31 | 720121 - Clip | Add To Cart | |
| 32 | 723010 - Latch Guide | Add To Cart | |
| 33 | 723013 - Latch Guide | Add To Cart | |
| 34 | 726094 - Lever Mount | Call For Details | |
| 35 | 730368 - Rod | Add To Cart | |
| 36 | 730433 - Latch Pin | Add To Cart | |
| 37 | 733011 - Lever | Add To Cart | |
| 38 | 755035 - Latch Arm | Add To Cart | |
| 39 | 782580 - Linkage Strap | Add To Cart | |
| 40 | 824559 - Latch | Add To Cart | |
| 41 | 824562 - Latch Pin | Add To Cart | |
| 42 | 824563 - Latch Pin | Add To Cart | |
| 43 | 423110 - Retainer | Add To Cart | |
| 44 | 881111 - Shaft | Add To Cart | |
| 45 | 902275 - Spacer | Add To Cart | |
| 46 | 902279 - Spacer | Add To Cart | |
| 47 | 902287 - Spacer | Add To Cart | |
| 48 | 830045 - Bolt | Add To Cart |
