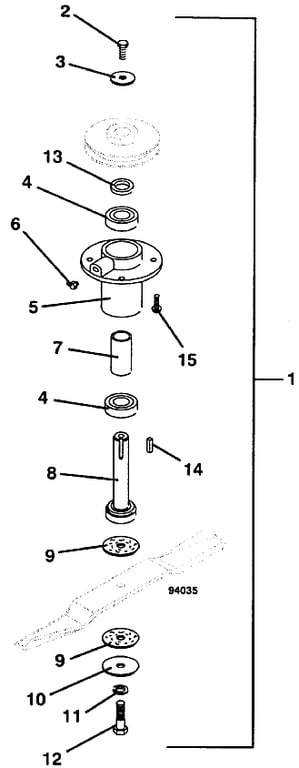

9661 Blade Spindle Assembly - 1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623784 - right Blade Spindle Assembly (includes items 2 - 13 and 15) | Add To Cart | |
| - | 623783 - left/center Blade Spindle Assembly (includes items 2 - 13 and 15) | Add To Cart | |
| 2 | 243331 - Hex Bolt | Add To Cart | |
| 3 | 257041 - Cupped Washer | Add To Cart | |
| 4 | 110082 - Single Seal Ball Bearing | Add To Cart | |
| 5 | 320526 - Spindle Grease Housing | Add To Cart | |
| 6 | 280734 - Zerk Grease Fitting | Add To Cart | |
| 7 | 903640 - Bearing Tube Spacer | Add To Cart | |
| 8 | 604770 - right 25mm Spindle Shaft Assembly | Add To Cart | |
| - | 604768 - left/center 25mm Spindle Shaft Assembly | Add To Cart | |
| 9 | 421200 - Fiber Washer | Add To Cart | |
| 10 | 257061 - Washer | Add To Cart | |
| 11 | 257432 - Lock Washer | Add To Cart | |
| 12 | 243581 - Hex Bolt | Add To Cart | |
| 13 | 282607 - Spacer | Add To Cart | |
| 14 | 281580 - Square Key for right Spindle | Add To Cart | |
| - | 281583 - Square Key for left center Spindles | Add To Cart | |
| 15 | 253192 - Hex Flange Whiz Bolt | Add To Cart |
