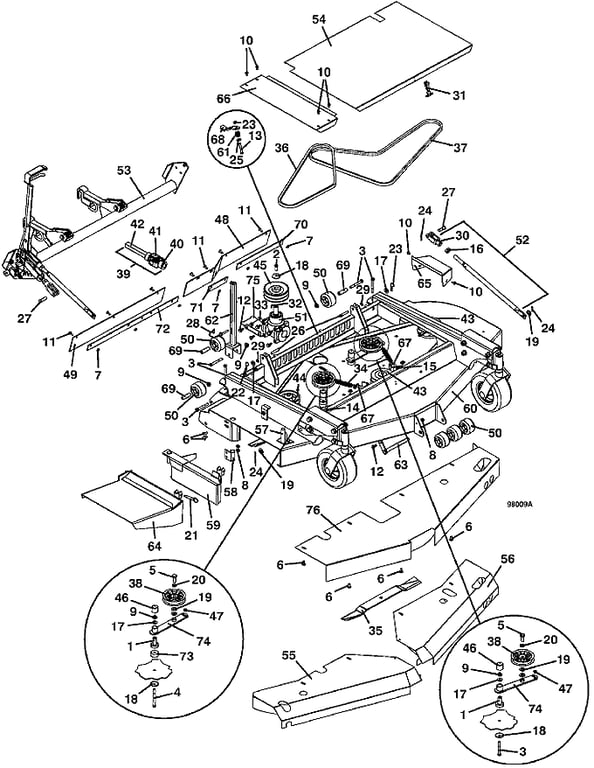

9661 Mower Assembly - 1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 121650 - Pedestal Bearing | Add To Cart | |
| 2 | 243331 - Hex Bolt | Add To Cart | |
| 3 | 243365 - Hex Bolt | Add To Cart | |
| 4 | 243565 - Hex Bolt | Add To Cart | |
| 5 | 250169 - Hex Bolt | Add To Cart | |
| 6 | 247130 - Carriage Bolt | Add To Cart | |
| 7 | 253025 - Whiz Nut | Add To Cart | |
| 8 | 253035 - Whiz Nut | Add To Cart | |
| 9 | 253043 - Whiz Nut | Add To Cart | |
| 10 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 11 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 12 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 13 | 243225 - Hex Bolt | Add To Cart | |
| 14 | 254431 - Speed Nut | Add To Cart | |
| 15 | 254450 - Nut | Add To Cart | |
| 16 | 254493 - Nut | Add To Cart | |
| 17 | 257040 - Washer | Add To Cart | |
| 18 | 257041 - Cupped Washer | Add To Cart | |
| 19 | 257062 - Washer | Add To Cart | |
| 20 | 257432 - Lock Washer | Add To Cart | |
| 21 | 260400 - Hitch Pin | Add To Cart | |
| 22 | 260523 - Hair Pin | Add To Cart | |
| 23 | 253450 - Nut with Nylon Insert | Add To Cart | |
| 24 | 260650 - Cotter Pin | Add To Cart | |
| 25 | 257062 - Washer | Add To Cart | |
| 26 | 261362 - Clevis Pin | Add To Cart | |
| 27 | 261426 - Clevis Pin | Add To Cart | |
| 28 | 261624 - Linch Pin | Add To Cart | |
| 29 | 262950 - Push-On Retainer | Add To Cart | |
| 30 | 265565 - Clevis Yoke | Add To Cart | |
| 31 | 281301 - Rubber Draw Latch | Add To Cart | |
| 32 | 281828 - Woodruff Key | Add To Cart | |
| 33 | 281833 - Woodruff Key | Add To Cart | |
| 34 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 35 | 320245 - 21 inch Hi-Lift Notch Blade | Call For Details | |
| - | 320242 - 21 inch Medium Lift Blade | Call For Details | |
| - | 320244 - 21 inch Contour Blade | Call For Details | |
| - | 320246 - 21 inch Extreme Hi-Lift Blade | Call For Details | |
| 36 | 382025 - Belt | Add To Cart | |
| 37 | 382865 - Belt | Add To Cart | |
| 38 | 393225 - Idler | Add To Cart | |
| 39 | 398525 - UN Half Shaft | Add To Cart | |
| 40 | 401010 - Yoke | Add To Cart | |
| 41 | 121010 - Cross Bearing | Add To Cart | |
| 42 | 402605 - Yoke Shaft | Add To Cart | |
| 43 | 414696 - Sheave | Add To Cart | |
| 44 | 415867 - Sheave | Add To Cart | |
| 45 | 416116 - Sheave | Add To Cart | |
| 46 | 422098 - Vinyl Cap | Add To Cart | |
| 47 | 422520 - Nylon Bearing | Add To Cart | |
| 48 | 424183 - 9661 Left Deck Flap | Add To Cart | |
| 49 | 424187 - 9661 Right Deck Flap | Add To Cart | |
| 50 | 426122 - Roller | Add To Cart | |
| 51 | 390022 - Counterclockwise HD Right Angle Gearbox | Add To Cart | |
| 52 | 603573 - left 9661 Linkage Assembly | Call For Details | |
| 53 | 603571 - 9661 Lift Arm Assembly | Call For Details | |
| 54 | 604726 - 9661 Shield Assembly | Add To Cart | |
| 55 | 643190 - 9561 Right Front Mulch Shroud | Add To Cart | |
| 56 | 643191 - 9561 Left Front Mulch Shroud | Add To Cart | |
| 57 | 643235 - Clevis Shaft | Add To Cart | |
| 58 | 643632 - Vac Housing Pivot Mount | Add To Cart | |
| 59 | 643691 - Discharge Filler | Add To Cart | |
| 60 | 643990 - 9661 Deck Weldment | Call For Details | |
| 61 | 283324 - Compression Spring | Add To Cart | |
| 62 | 604485 - Jack Stand with Roller Assembly | Add To Cart | |
| 63 | 644512 - Roller Lock Pin | Add To Cart | |
| 64 | 644751 - 95S Discharge Shield | Add To Cart | |
| 65 | 722249 - Left Belt Shield | Add To Cart | |
| 66 | 722322 - Right 9661 Belt Shield | Add To Cart | |
| 67 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 68 | 732874 - Slip Yoke Clamp | Call For Details | |
| 69 | 902284 - Roller Mount Spacer | Add To Cart | |
| 70 | 774053 - Left Outside Deflector Strap | Call For Details | |
| 71 | 774054 - Left Inside Deflector Strap | Call For Details | |
| 72 | 775211 - Right 9661 Deflector Strap | Call For Details | |
| 73 | 902317 - Idler Arm Spacer | Add To Cart | |
| 74 | 824502 - Idler Arm with Bearing Pedestal | Add To Cart | |
| 75 | 754021 - 9661 U-Joint Shield | Add To Cart | |
| 76 | 644195 - 95/9661 Straight Air Foil | Add To Cart | |
| 77 | 603282 - SL 96/98 Mower Safety Decal Set | Add To Cart |
