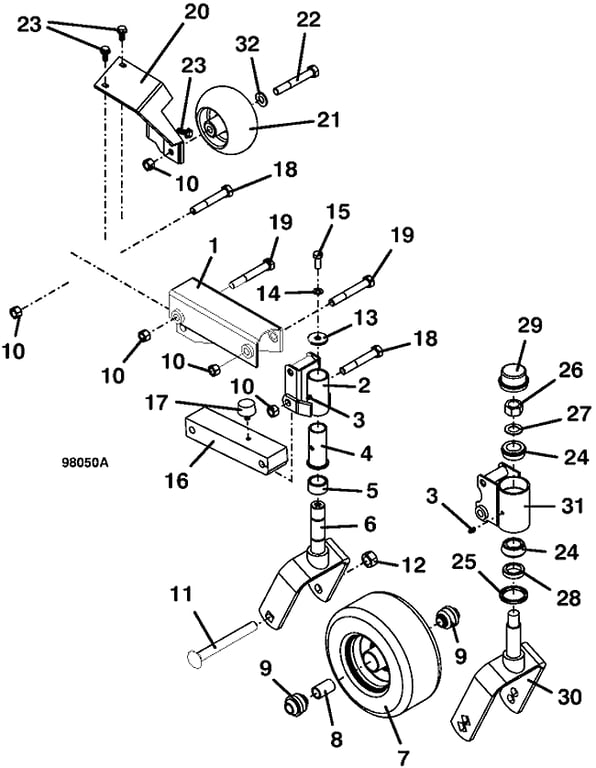

9661 Wheel Lift Anti-Scalp Roller Assembly - 1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643500 - Upper Right Lift Channel | Add To Cart | |
| - | 643501 - Upper Left Lift Channel | Add To Cart | |
| 2 | 603351 - Right Fork Mount with Bearing | Add To Cart | |
| - | 603352 - Left Fork Mount with Bearing | Add To Cart | |
| 3 | 280776 - Zerk Grease Fitting | Add To Cart | |
| 4 | 833260 - Flanged Sintered Bushing | Add To Cart | |
| 5 | 902541 - Spacer | Add To Cart | |
| 6 | 604350 - 90 Series Deck Fork | Add To Cart | |
| - | 425514 - O-Ring | Add To Cart | |
| 7 | 603973 - 9 x 3.5 x 4 Semi-Pneumatic Wheel Assembly with Bearing | Add To Cart | |
| 8 | 902428 - Center Axle Spacer | Add To Cart | |
| 9 | 120048 - DP Wheel Ball Bearing | Add To Cart | |
| 10 | 253930 - Lock Nut | Add To Cart | |
| 11 | 247715 - Carriage Bolt | Add To Cart | |
| 12 | 253970 - Lock Nut | Add To Cart | |
| 13 | 774014 - Washer | Add To Cart | |
| 14 | 257412 - Lock Washer | Add To Cart | |
| 15 | 243331 - Hex Bolt | Add To Cart | |
| 16 | 822312 - Deck Stabilizer with Bumper | Add To Cart | |
| 17 | 424052 - Rubber Bumper | Add To Cart | |
| 18 | 243609 - Hex Bolt | Add To Cart | |
| 19 | 243614 - Hex Bolt | Add To Cart | |
| 20 | 824627 - 9561 Anti-Scalp Roller Mount | Add To Cart | |
| 21 | 484225 - Anti-Scalp Offset Hub Wheel | Add To Cart | |
| 22 | 243610 - Hex Bolt | Add To Cart | |
| 23 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| - | 253035 - Whiz Nut | Add To Cart | |
| 24 | 122522 - Taper Bearing | Add To Cart | |
| 25 | 125855 - Seal | Add To Cart | |
| 26 | 253992 - Lock Nut | Add To Cart | |
| 27 | 257091 - 14 GA Bushing Washer | Add To Cart | |
| 28 | 282615 - Spacer | Add To Cart | |
| 29 | 281432 - Dust Cap | Call For Details | |
| 30 | 644221 - Tapered Bearing Fork | Add To Cart | |
| 31 | 824982 - Deck HD Fork Housing | Add To Cart | |
| - | 824981 - Machined Left Fork Housing | Add To Cart | |
| 32 | 257062 - Washer | Add To Cart |
