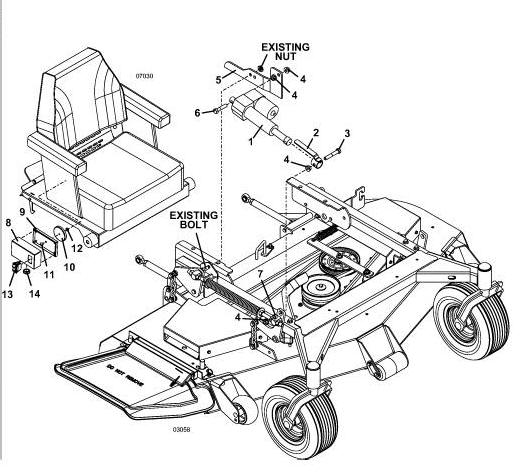

9772 Model Deck Electric Height Adjusting Kit Assembly - 2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 180024 - ACTUATOR | Add To Cart | |
| 2 | 644089 - INDICATOR- ELECTRIC DECK HT | Call For Details | |
| 162184 - DECAL-CUTTING HT M1 ELEC LIFT | Call For Details | ||
| 3 | 243600 - HEX BOLT | Add To Cart | |
| 4 | 253065 - NUT FLANGE | Add To Cart | |
| 5 | 776414 - ACTUATOR MOUNT - M1/9772 | Call For Details | |
| 6 | 243585 - HEX BOLT | Add To Cart | |
| 7 | 902282 - SPACER - ACTUATOR STOP | Add To Cart | |
| 8 | 644722 - SWITCH BOX - ACCESSORIES | Call For Details | |
| 9 | 721140 - COVER PANEL - SWITCH BOX | Call For Details | |
| 10 | 424029 - RUBBER BUMPER | Add To Cart | |
| 11 | 424216 - GROMMET | Add To Cart | |
| 12 | 722009 - STOP - THROTTLE LEVER | Add To Cart | |
| 13 | 754005 - MOUNT STRAP - SWITCH BOX | Add To Cart | |
| 14 | 902263 - SPACER - LATCH SPRING | Add To Cart | |
| 15 | 283324 - SPRING - COMPRESSION | Add To Cart | |
| 16 | 257030 - WASHER | Add To Cart | |
| 17 | 243220 - HEX BOLT | Add To Cart | |
| 18 | 250169 - MACHINE SCREW-HEX | Add To Cart | |
| 19 | 184084 - TOGGLE | Add To Cart | |
| 20 | 770005 - WASHER - KEYED | Add To Cart |
