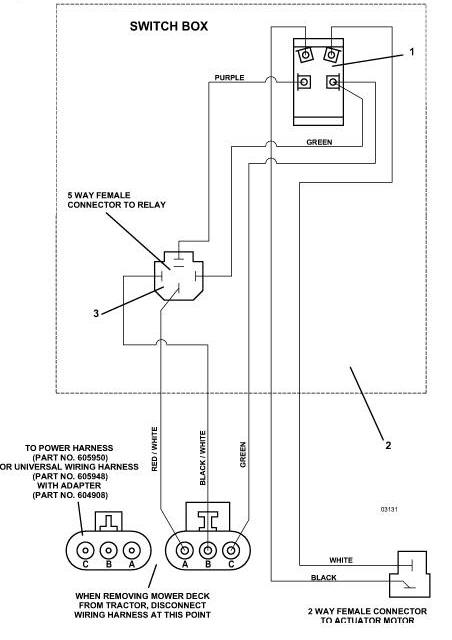

9772 Model Deck Electric Height Kit Wiring Diagram - 2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 184177 - SWITCH - ROCKER 2P DT 2POS | Add To Cart | |
| 2 | 833515 - SWITCH BOX - ROCKER | Call For Details | |
| 833524 - COVER-SWITCH BOX | Call For Details | ||
| 3 | 184272 - RELAY 12VDC | Add To Cart | |
| 4 | 605942 - WIRE GRP-ELEC HT ADJ UNV M172 | Add To Cart |
