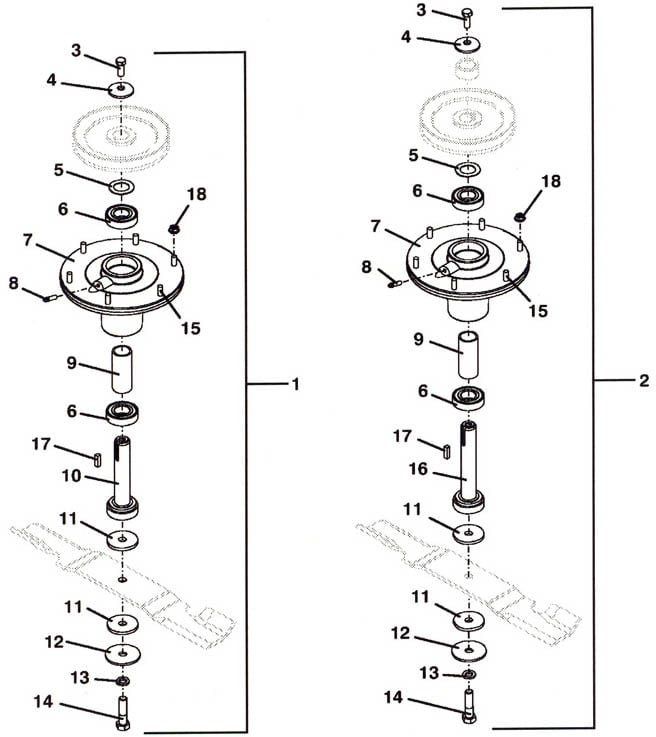

Blade Spindle Assembly Grasshopper 9852 Deck - 2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623781 - Spindle Assembly, Left Center (includes items 3 - 15) | Add To Cart | |
| 2 | 623782 - Spindle Assembly, Right (includes items 3 - 9 11 - 16) | Add To Cart | |
| 3 | 243331 - Hex Bolt | Add To Cart | |
| 4 | 257041 - Cupped Washer | Add To Cart | |
| 5 | 257106 - Washer | Add To Cart | |
| 6 | 110082 - Single Seal Ball Bearing | Add To Cart | |
| 7 | 604421 - 5.0 Spindle Housing Assembly | Add To Cart | |
| 8 | 280745 - Zerk Grease Fitting | Add To Cart | |
| 9 | 903643 - Deep Spindle Bearing Spacer | Add To Cart | |
| 10 | 604775 - 5.75 Spindle Shaft Assembly | Add To Cart | |
| 11 | 421200 - Fiber Washer | Add To Cart | |
| 12 | 257061 - Washer | Add To Cart | |
| 13 | 257432 - Lock Washer | Add To Cart | |
| 14 | 243581 - Hex Bolt | Add To Cart | |
| 15 | 247141 - Round Head Ribbed Neck Bolt | Add To Cart | |
| 16 | 604774 - 98 series Spindle Shaft Assembly (right side) | Add To Cart | |
| 17 | 281582 - Square Key | Add To Cart | |
| 18 | 253035 - Whiz Nut | Add To Cart |
