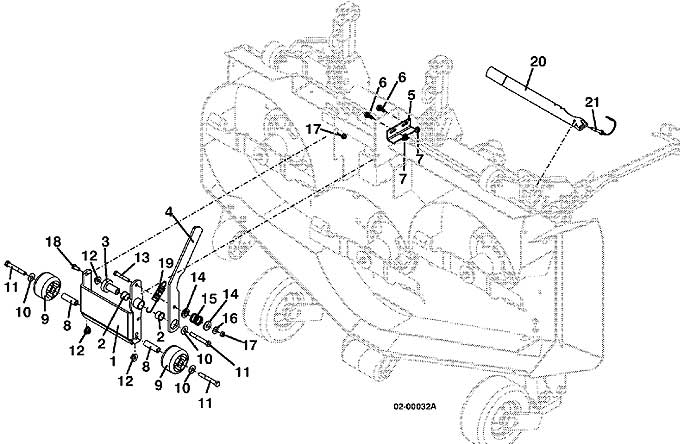

Deck Stand Assembly Grasshopper 9852 Deck - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 824591 - Deck Stand Roller Mount | Add To Cart | |
| 2 | 121756 - Oilite Bearing | Add To Cart | |
| 3 | 121650 - Pedestal Bearing | Add To Cart | |
| 4 | 776415 - Roller Lever Mount | Add To Cart | |
| 5 | 754067 - Roller Lever Stop | Add To Cart | |
| 6 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 7 | 253035 - Whiz Nut | Add To Cart | |
| 8 | 902284 - Roller Mount Spacer | Add To Cart | |
| 9 | 426122 - Roller | Add To Cart | |
| 10 | 257040 - Washer | Add To Cart | |
| 11 | 243360 - Hex Bolt | Add To Cart | |
| 12 | 253043 - Whiz Nut | Add To Cart | |
| 13 | 243225 - Hex Bolt | Add To Cart | |
| 14 | 257067 - Washer | Add To Cart | |
| 15 | 283332 - Compression Spring | Add To Cart | |
| 16 | 257030 - Washer | Add To Cart | |
| 17 | 253450 - Nylon Insert Nut | Add To Cart | |
| 18 | 243205 - Hex Bolt | Add To Cart | |
| 19 | 283818 - Extension Spring | Add To Cart | |
| 20 | 783068 - Standard Traction Tool Kit | Add To Cart | |
| 21 | 261624 - Linch Pin | Add To Cart | |
| 22 | 606304 - Deck Stand Assembly | Add To Cart |
