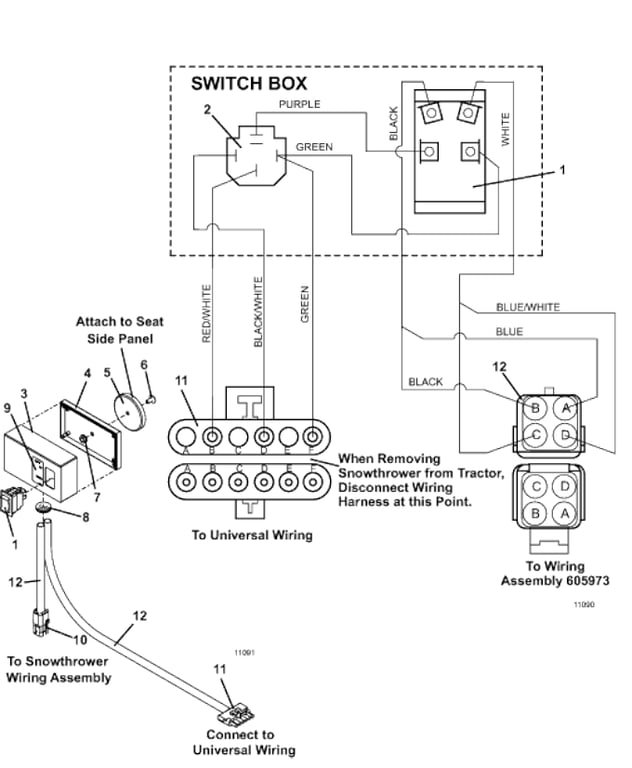

Electric Actuator Lift - Control Box and Wiring Diagram
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 184177 - 2 Post Rocker Switch | Add To Cart | |
| 2 | 184272 - 12V DC Relay | Add To Cart | |
| 3 | 833515 - Rocker Switch Box | Call For Details | |
| 4 | 833524 - Switch Box Cover | Call For Details | |
| 5 | 102505 - Round Base Magnet | Call For Details | |
| 6 | 253170 - Truss Whiz Bolt | Call For Details | |
| 7 | 253025 - Whiz Nut | Add To Cart | |
| 8 | 424216 - Grommet | Add To Cart | |
| 9 | 162199 - Lift Rocker Switch Decal | Call For Details | |
| 10 | 184977 - 4-Way Male Connector | Add To Cart | |
| 11 | 184969 - 6-Way Femail Connector | Add To Cart | |
| 12 | 422275 - Flex Guard Loom | Add To Cart | |
| - | 423147 - Tie | Call For Details | |
| 13 | 605841 - 4-Way Single Rocker Wiring Assembly | Call For Details |
