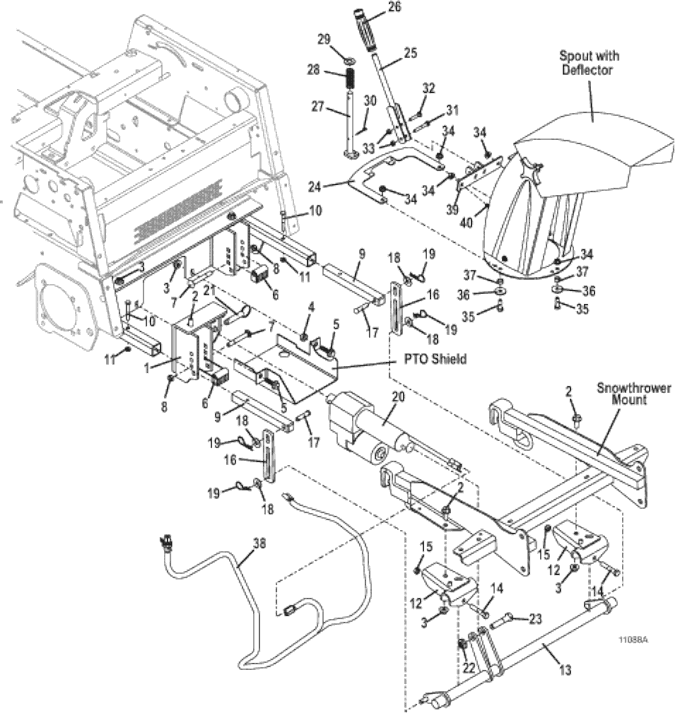

Electric Lift Assembly - Actuator Lift
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645555 - Mount | Add To Cart | |
| - | 645554 - Electric Lift Snow Mount | Add To Cart | |
| 2 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 3 | 253043 - Whiz Nut | Add To Cart | |
| 4 | 902286 - Wheel Motor Spacer | Add To Cart | |
| 5 | 253206 - Whiz Bolt | Add To Cart | |
| 6 | 282575 - Deck Mount Bushing | Add To Cart | |
| 7 | 247280 - Special Carriage Bolt | Add To Cart | |
| 8 | 253460 - Nylon Insert Nut | Add To Cart | |
| 9 | 783756 - Electric Lift Mount Arm | Add To Cart | |
| 10 | 243040 - Hex Bolt | Add To Cart | |
| 11 | 253025 - Whiz Nut | Add To Cart | |
| 12 | 645553 - Mount | Call For Details | |
| 13 | 645662 - Pivot | Call For Details | |
| 14 | 243352 - Hex Bolt | Add To Cart | |
| 15 | 253890 - Lock Nut | Add To Cart | |
| 16 | 776361 - Strap | Add To Cart | |
| 17 | 261355 - Clevis Pin | Add To Cart | |
| 18 | 257040 - Washer | Add To Cart | |
| 19 | 260523 - Hair Pin | Add To Cart | |
| 20 | 180023 - Actuator | Add To Cart | |
| 21 | 260420 - Hitch Pin | Add To Cart | |
| 22 | 253470 - Nylon Insert Nut | Add To Cart | |
| 23 | 243585 - Hex Bolt | Add To Cart | |
| 24 | 729962 - Stop | Call For Details | |
| 25 | 643408 - Spout Handle | Add To Cart | |
| 26 | 422160 - Handle Grip | Add To Cart | |
| 27 | 643834 - Sout Lock Rod | Add To Cart | |
| 28 | 283320 - Compression Spring | Add To Cart | |
| 29 | 257062 - Washer | Add To Cart | |
| 30 | 260652 - Cotter Pin | Add To Cart | |
| 31 | 243038 - Hex Bolt | Add To Cart | |
| 32 | 243030 - Hex Bolt | Add To Cart | |
| 33 | 253440 - Nylon Insert Nut | Add To Cart | |
| 34 | 253035 - Whiz Nut | Add To Cart | |
| 35 | 243205 - Hex Bolt | Add To Cart | |
| 36 | 774015 - Retainer Washer | Add To Cart | |
| 37 | 903215 - Spout Pivot Spacer | Add To Cart | |
| 38 | 605973 - Snowthrower Joystick Wiring Assembly | Add To Cart | |
| 39 | 645099 - Manual Spout Handle Bracket | Call For Details | |
| 40 | 253192 - Flanged Hex Whiz Bolt | Add To Cart |
