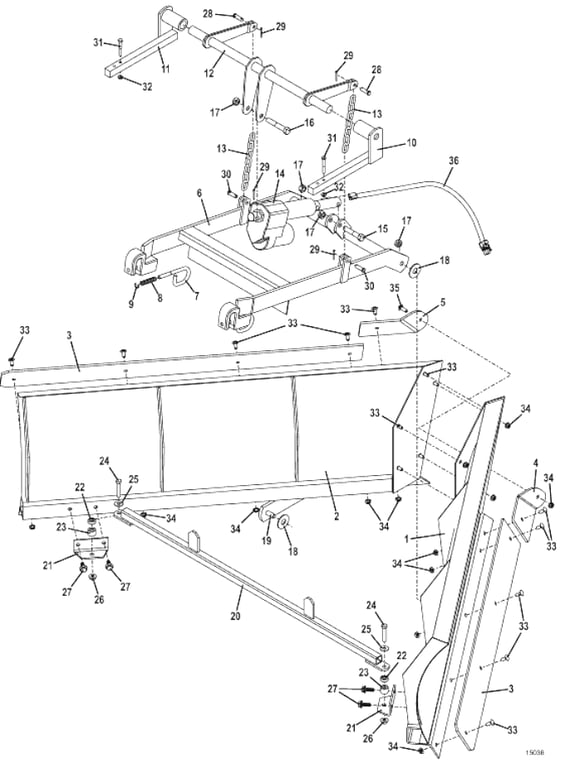

Electric Lift V-Dozer Assembly
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644820 - V-Dozer Right | Call For Details | |
| 2 | 644821 - V-Dozer Left | Call For Details | |
| 3 | 783289 - V-Dozer Blade | Call For Details | |
| 4 | 726223 - V-Dozer Nose Right Plate | Call For Details | |
| 5 | 726224 - V-Dozer Nose Left Plate | Call For Details | |
| 6 | 603303 - Electric V-Dozer Mount Assembly | Call For Details | |
| 7 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 8 | 283285 - Compression Spring | Add To Cart | |
| 9 | 263490 - External Retainer | Add To Cart | |
| 10 | 644560 - Right Electric Lift Mount | Call For Details | |
| 11 | 644561 - Left Electric Lift Mount | Call For Details | |
| 12 | 644212 - Electric Dozer Lift W/A | Call For Details | |
| 13 | 820323 - Rear Chain Lift | Add To Cart | |
| 14 | 180023 - Actuator | Add To Cart | |
| 15 | 243591 - Hex Bolt | Add To Cart | |
| 16 | 243600 - Hex Bolt | Add To Cart | |
| 17 | 253930 - Lock nut | Add To Cart | |
| 18 | 257080 - Washer | Add To Cart | |
| 19 | 243570 - Hex Bolt | Add To Cart | |
| 20 | 644103 - Rear Brace | Call For Details | |
| 21 | 725011 - V-Dozer Mount Bracket | Call For Details | |
| 22 | 902318 - Coupling Spacer | Add To Cart | |
| 23 | 902328 - Drive Spacer | Add To Cart | |
| 24 | 243347 - Hex Bolt | Add To Cart | |
| 25 | 257040 - Washer | Add To Cart | |
| 26 | 253043 - Whiz Nut | Add To Cart | |
| 27 | 253202 - Whiz Bolt | Add To Cart | |
| 28 | 261340 - Clevis Pin | Add To Cart | |
| 29 | 260652 - Cotter Pin | Add To Cart | |
| 30 | 261346 - Clevis Pin | Add To Cart | |
| 31 | 243040 - Hex Bolt | Add To Cart | |
| 32 | 253025 - Whiz Nut | Add To Cart | |
| 33 | 247130 - Carriage Bolt | Add To Cart | |
| 34 | 253035 - Whiz Nut | Add To Cart | |
| 35 | 247135 - Carriage Bolt | Add To Cart | |
| 36 | 605975 - Joystick Wiring Assembly | Call For Details |
