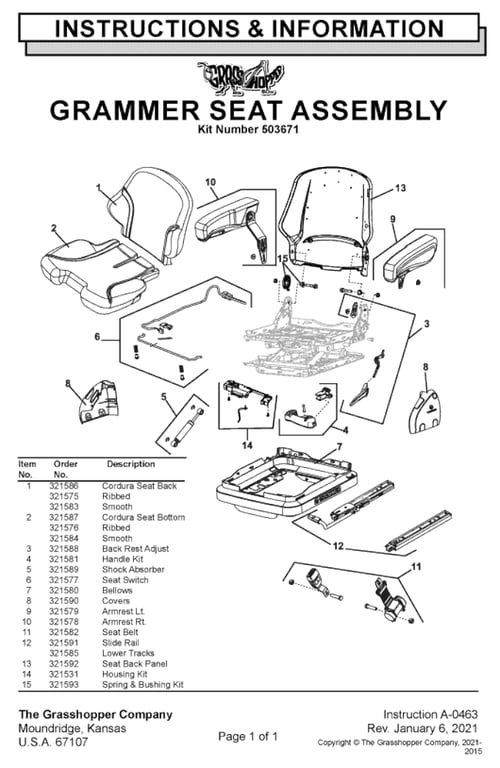

Grammer Premier Seat - Parts Breakdown
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321586 - Grasshopper Cordura Back Cushion | Call For Details | |
| - | 321575 - Grammer Back Cushion | Call For Details | |
| - | 321583 - Grammer Back Cushion | Call For Details | |
| 2 | 321587 - Cordura Grammer Seat Cushion | Add To Cart | |
| - | 321576 - Grammer Seat Cushion | Call For Details | |
| - | 321584 - Grammer Seat Cushion | Call For Details | |
| 3 | 321588 - Grammer Back Rest Adjust Kit | Add To Cart | |
| 4 | 321581 - Grammer Seat Handle Kit | Add To Cart | |
| 5 | 321589 - Seat Shock Absorber | Add To Cart | |
| 6 | 321577 - Grammer Seat Switch | Add To Cart | |
| 7 | 321580 - Grammer Seat Bellows | Add To Cart | |
| 8 | 321590 - Covers | Call For Details | |
| 9 | 321579 - Grammer Left Armrest | Call For Details | |
| 10 | 321578 - Grammer Right Armrest | Add To Cart | |
| 11 | 321582 - Grammer Seatbelt | Call For Details | |
| 12 | 321591 - Slide Rail Kit | Call For Details | |
| - | 321585 - Grammer Lower Adjust Slide | Add To Cart | |
| 13 | 321592 - Backrest Kit | Add To Cart | |
| 14 | 321531 - Grammer Housing Kit | Call For Details | |
| 15 | 321593 - Spring & Bushing Kit | Add To Cart | |
| 16 | 503671 - Grammer Seat Assembly (SEAT ONLY)(a seatpan is needed if replacing regular seat) | Add To Cart |
