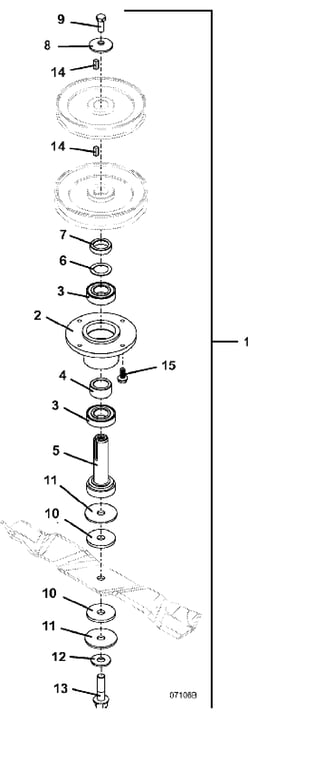

M1 Blade Spindle Assembly - 2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623758 - M1 Rear Blade Spindle Assembly | Add To Cart | |
| 2 | 320520 - M1R Decks Spindle Housing | Call For Details | |
| 3 | 110080 - Ball Bearing | Add To Cart | |
| 4 | 282630 - Spacer | Add To Cart | |
| 5 | 605770 - Spindle Shaft Assembly | Add To Cart | |
| 6 | 257106 - Washer | Add To Cart | |
| 7 | 282615 - Spacer | Add To Cart | |
| 8 | 257041 - Cupped Washer | Add To Cart | |
| 9 | 243331 - Hex Bolt | Add To Cart | |
| 10 | 421200 - Fiber Washer | Add To Cart | |
| 11 | 257061 - Washer | Add To Cart | |
| 12 | 257057 - Hardened Blade Spindle Washer | Add To Cart | |
| 13 | 243583 - Grade 8 Flange Hex Bolt | Add To Cart | |
| 14 | 281580 - Key Square | Add To Cart | |
| 15 | 253192 - Hex Flange Bolt Whiz | Add To Cart |
